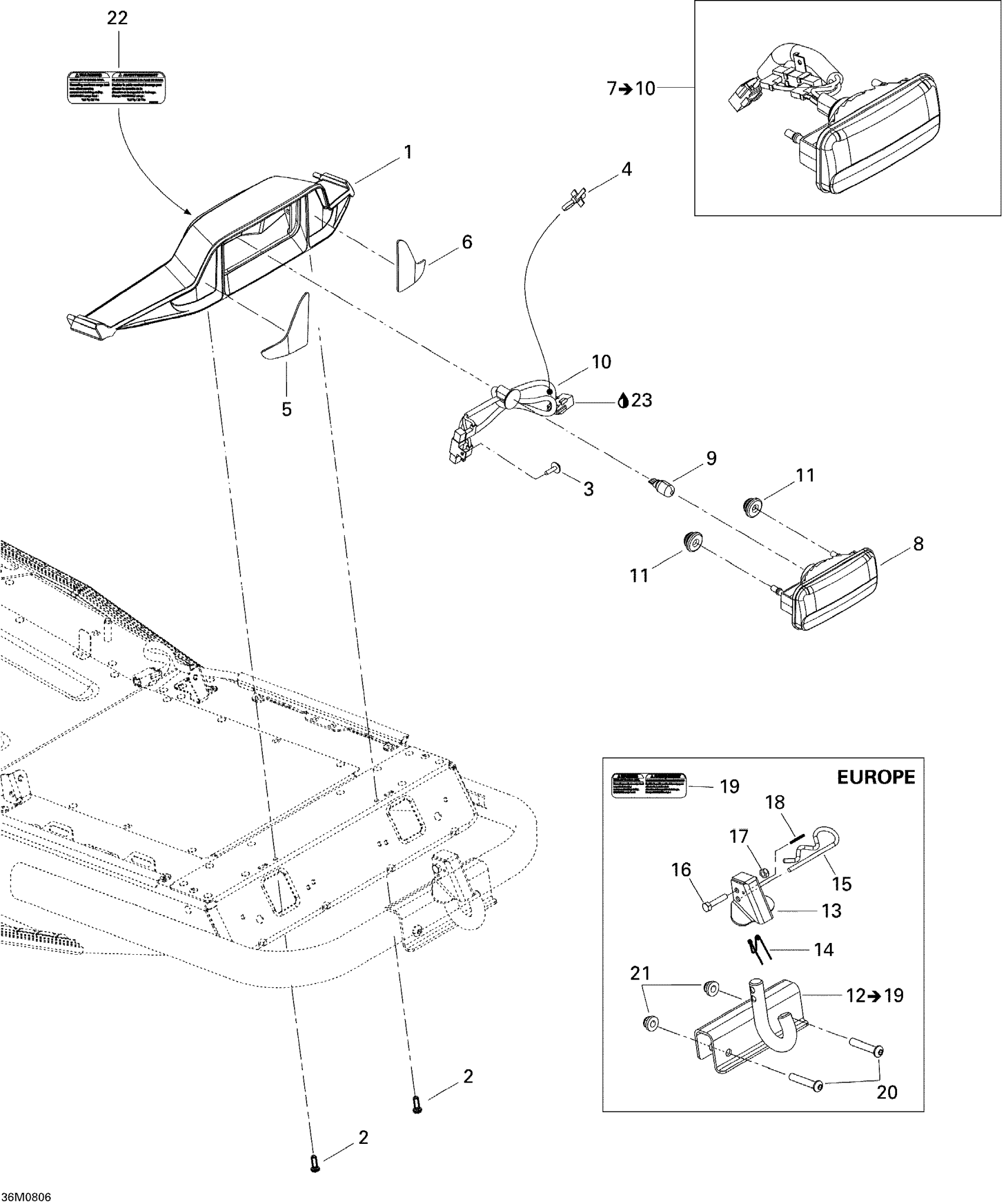

Ski-Doo Summit Adrenaline 600HO SDI, 2008 09- Luggage Rack Diagram

#

Description
Price

1

LIGHT SUPPORT - Call your local BRP dealership

511000510

Unavailable

2

Torx Screw K50 X 16

250000720

$1.69

3

Screw M4 X 16

250000725

$3.49

4

Tie-Rap 173 mm

293750009

$1.04

5

REAR REFLECTOR - Call your local BRP dealership

511000459

Unavailable

6

REAR REFLECTOR - Call your local BRP dealership

511000460

Unavailable

7

REAR LIGHT ASS'Y - Call your local BRP dealership | MX Z X 600RS, Includes 20 to 23

511000507

Unavailable

8

Rear Lens Box | MX Z X 600RS

710000652

Unavailable

9

BULB - Call your local BRP dealership | MX Z X 600RS

710000653

Unavailable

10

WIRING HARNESS - Call your local BRP dealership | MX Z X 600RS

511000508

Unavailable

11

Stopper Rubber

705014429

$5.95

12

HITCH ASS'Y - Call your local BRP dealership | Includes 17 to 23, Europe

511000509

Unavailable

13

PAWL - Call your local BRP dealership | Europe

511000514

Unavailable

14

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

15

Hair Pin

114045200

$11.11

16

Hex. Flange Screw M6 X 35

207063544

$1.37

17

Elastic Stop Nut M6

232561414

$0.55

18

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

19

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003037

Unavailable

20

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

21

Hex. Flange Elastic Nut M8

233281414

$1.47

22

WARNING DECAL, MAXIMUM CARGO LOAD - Call your local BRP dealership

516002960

Unavailable

23

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
