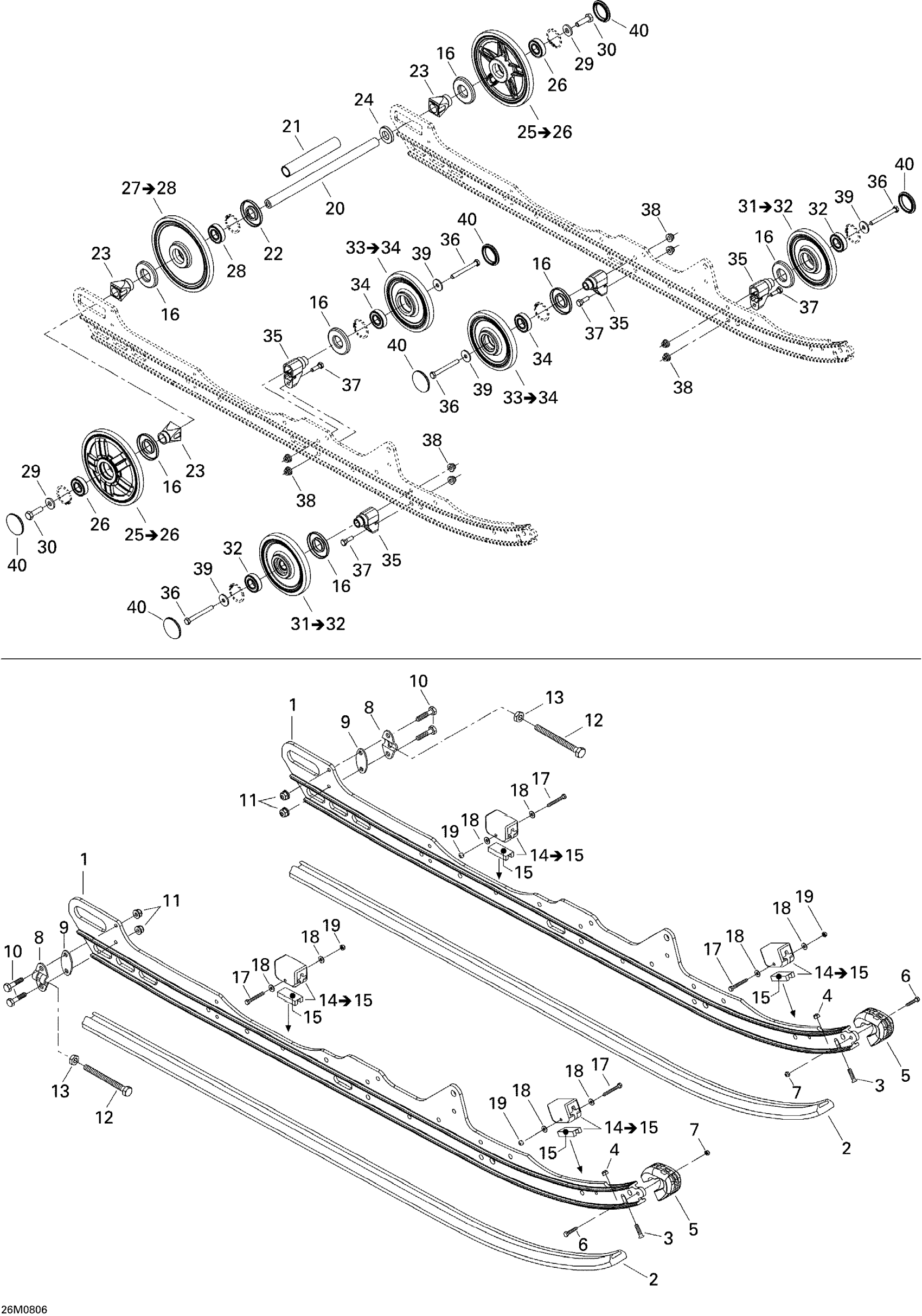

Ski-Doo Summit Adrenaline 600HO SDI, 2008 08- Rear Suspension Diagram

#

Description
Price

1

RUNNER 144 - Call your local BRP dealership

503191503

Unavailable

2

Slide Shoe

605355362

$29.49

3

Phillips Screw M6 X 25

208562531

$2.11

4

Elastic Stop Nut M6

232561414

$0.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

Hex. Flange Screw M5 X 25

207652544

$0.50

7

Hex. Flange Elastic Nut M5

233251414

$1.04

8

Tensioner

503155300

Unavailable

9

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

10

Hex. Screw M6 X 30

207063044

$1.26

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

13

Elastic Locking Nut M10 X 1.5

233601416

$1.69

14

RUBBER STOPPER ASS'Y - Call your local BRP dealership

503190905

Unavailable

15

Reinforcement Stopper

572084800

$12.99

16

Labyrinth Seal

503190434

$6.09

17

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

18

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

19

Elastic Stop Nut M5

232551414

$0.87

20

Rear Axle

503190429

$59.99

21

Spacer

503196317

$18.49

22

Labyrinth Seal

503190682

$6.19

23

Rear Wheel Spacer

503190428

$8.14

24

Washer

503190432

$14.22

25

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$51.99

26

Ball Bearing | Package-STD

503190396

$14.30

27

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$51.99

27a

Retaining Ring

415129371

$12.01

28

Ball Bearing | Package-STD

503190396

$14.30

29

Washer

503190439

$5.93

30

Hex. Screw With Nylon

250000019

$1.69

31

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$48.49

32

Ball Bearing | Package-STD

503190396

$14.30

33

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$48.49

34

Ball Bearing | Package-STD

503190396

$14.30

35

Support

503190580

Unavailable

36

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

37

Hex. Screw M8 X 25

207182544

$0.90

38

Hex. Flange Elastic Nut M8

233281414

$1.47

39

Washer

211200041

$3.17

40

Wheel Cap

570063600

$3.49
