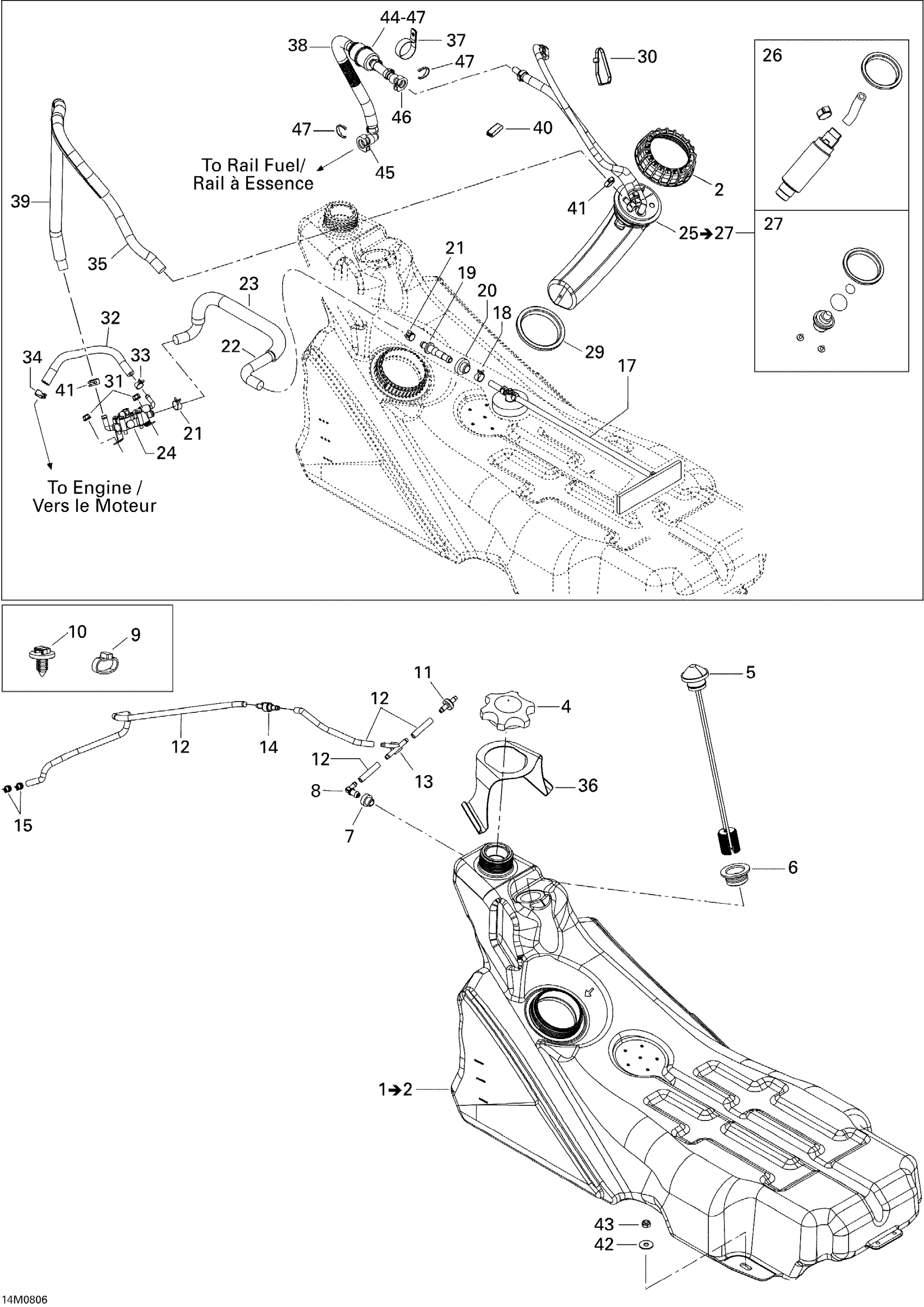

Ski-Doo Summit Adrenaline 600HO SDI, 2008 02- Fuel System Diagram

#

Description
Price

1

Fuel Tank, Black | Includes 1 to 2

513033085

Unavailable

2

Nut, Fuel Pump Module

513033040

$29.99

4

Fuel Tank Cap

513033025

$24.49

5

FUEL GAUGE - Call your local BRP dealership

513033359

Unavailable

6

Grommet

293720058

$11.99

7

Grommet

513032908

$10.49

8

Male Connector

414580700

$4.12

9

Tie-Rap 180 mm

414115200

$0.11

10

Mount Dart

293730040

$1.04

11

Check Valve

275500398

$10.99

12

Polyurethane Hose 10000Mm Long

219704410

$56.99

13

Y-Fitting

293710059

$9.69

14

Check Valve

513033469

$31.99

15

Spring Clamp

414554800

$0.88

17

FUEL HOSE ASS. - Call your local BRP dealership

513033172

Unavailable

18

Norma Spring Clamp

513033010

$9.69

19

Male Connector

414872700

$1.90

20

Grommet | Europe

707800347

$10.49

21

Crimp Clamp

293650053

$3.09

22

FORMED HOSE - Call your local BRP dealership

513033378

Unavailable

23

Tubing 16 Mm 1000Mm Long

219704408

$7.49

24

Fuel Pump

403901812

$84.99

25

FUEL PUMP MODULE - Call your local BRP dealership | Includes 25 to 27

513033120

Unavailable

26

PUMP KIT - Call your local BRP dealership

861302700

Unavailable

27

REGULATOR KIT - Call your local BRP dealership

861302100

Unavailable

29

SEAL - Call your local BRP dealership

513033039

Unavailable

30

Tie-Rap 180 mm

414115200

$0.11

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

32

HOSE - Call your local BRP dealership

513033035

Unavailable

33

Spring Clamp

414415200

$0.88

34

Universal Spring Clamp

513033029

$5.39

35

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

36

SUPPORT - Call your local BRP dealership

513033066

Unavailable

37

Open Clamp

513033047

$5.19

38

Tubing 16 Mm 1000Mm Long

219704408

$7.49

39

Tubing 16 Mm 1000Mm Long

219704408

$7.49

40

Was 271000110 Protection Trim

219704353

$15.99

41

Crimp Clamp, 15.3-706R

293650047

$3.29

42

Flat Washer 8 mm

234082410

$1.47

43

Hex. Elastic Stop Nut M8

232581414

$0.56

44

Fuel Filter Ass'y | Includes 44 to 47

513033133

$93.99

45

Quick Fitting 90° Ass'y

415128965

$10.99

46

Female Quick Fitting Ass'y

709000125

$15.49

47

Locking Clip

513033135

$5.89
