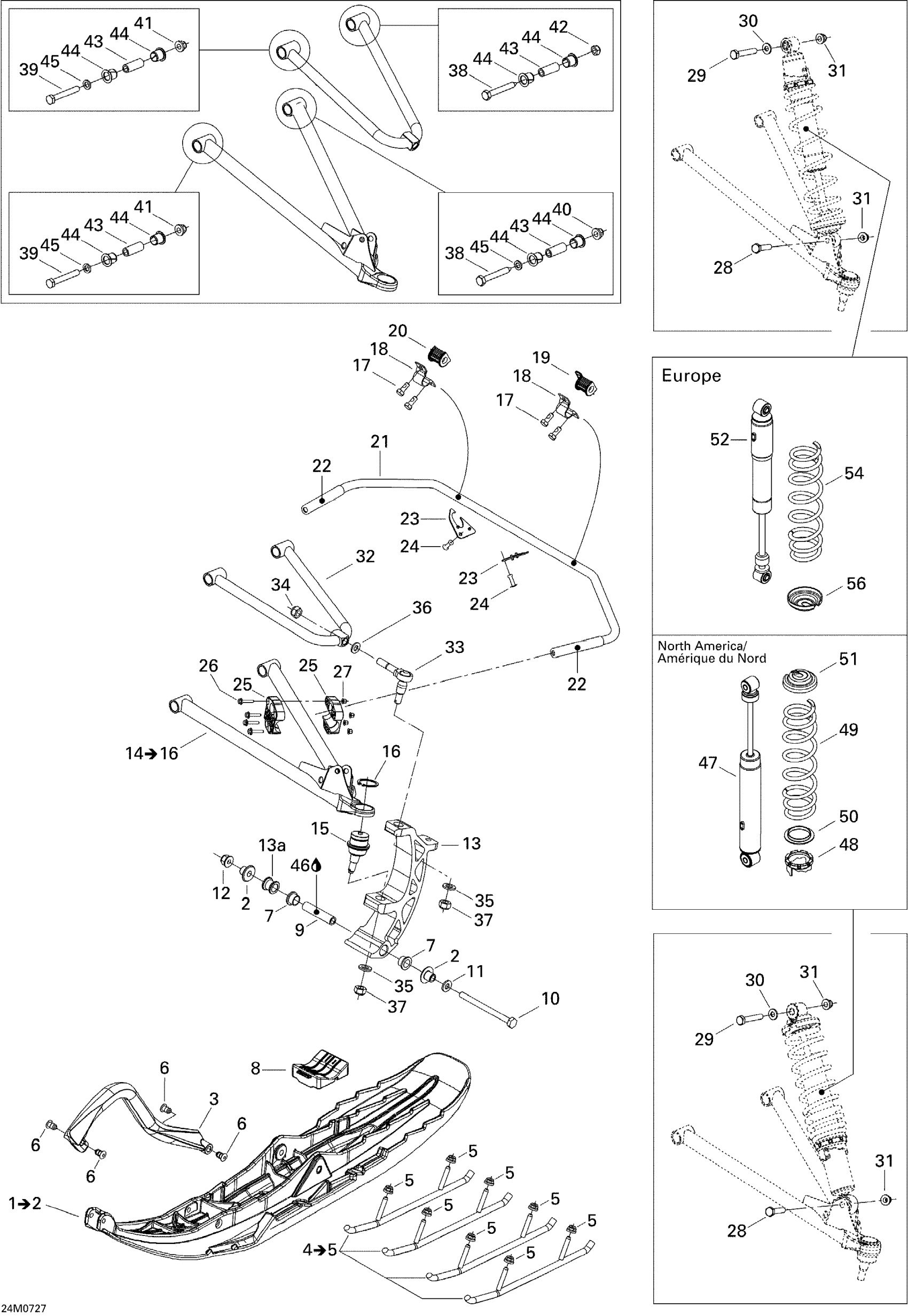

Ski-Doo Summit Adrenaline 600HO SDI, 2007 Front Suspension And Ski Diagram

#

Description
Price

1

Black Pilot Ski Ass'y 6.9 RH

505073056

$175.35

1

Black Pilot Ski Ass'y 6.9 LH

505073055

$175.35

2

Ski Bushing

505071781

$15.35

3

Black, Handle

505070963

$35.35

4

Square Carbide Runner Kit | Includes 5 to 6

860511800

Unavailable

5

Hex. Flange Elastic Nut M8

233281414

$1.14

6

Retainer 17mm long

505071812

$4.43

7

Leg Bushing

505072690

Unavailable

8

Ski Stopper

505071779

$16.12

9

BUSHING - Call your local BRP dealership

505071271

Unavailable

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

11

Washer

732900049

$0.57

12

Flange Nut M10

732610084

$5.49

13

SKI LEG - Call your local BRP dealership

505071248

Unavailable

13a

SPACER - Call your local BRP dealership

505071215

Unavailable

14

RH LOWER ARM ASS'Y - Call your local BRP dealership

860512900

Unavailable

14

LH LOWER ARM ASS'Y - Call your local BRP dealership

860512800

Unavailable

15

Ball Joint

505073636

$49.97

16

Circlip

293370035

$2.55

17

Hex. Screw With Nylon

250000118

Unavailable

18

CLAMP - Call your local BRP dealership

506095800

Unavailable

19

LH BUSHING - Call your local BRP dealership

505070664

Unavailable

20

RH BUSHING - Call your local BRP dealership

505070912

Unavailable

21

STABILISATOR - Call your local BRP dealership

505070948

Unavailable

22

STABILISATOR BOOT - Call your local BRP dealership

505071039

Unavailable

23

PLUG - Call your local BRP dealership

505071253

Unavailable

24

Pop Rivet 3/16"

293150103

$0.54

25

RH SLIDER HALF - Call your local BRP dealership

505071268

Unavailable

25

LH SLIDER HALF - Call your local BRP dealership

505071269

Unavailable

26

Hex. Flange Screw M5 X 25

207652544

$0.42

27

Hex. Flange Elastic Nut M5

233251414

$1.66

28

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

29

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

30

Washer

503189564

$0.72

31

Hex. Flange Elastic Nut M10

233201414

$1.26

32

RH UPPER ARM - Call your local BRP dealership

505071857

Unavailable

32

LH UPPER ARM - Call your local BRP dealership

505071859

Unavailable

33

BALL JOINT - Call your local BRP dealership

505072050

Unavailable

34

Hex. Elastic Hex. Nut M12

250100089

$0.39

35

Flat Washer 12 mm

234021410

$0.68

36

Washer

503189276

$3.20

37

Hex. Elastic Hex. Nut M12

250100089

$0.39

38

Hex. Screw M10 X 75

250001063

$9.74

39

Hex. Screw M10 X 75

250001063

$9.74

40

Hex. Flange Elastic Nut M10

250100165

$0.70

41

Hex. Flange Elastic Nut M10

250100165

$0.70

42

Hex. Flange Elastic Nut M10

250100165

$0.70

42

Elastic Flange Nut M10

232501416

$1.25

43

Aluminium Bushing

505070960

$11.17

44

Arm Bushing

505070566

$3.14

45

Washer

503189564

$0.72

46

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

47

FRONT SHOCK - Call your local BRP dealership

505071455

Unavailable

48

Adjustment Cam

505073625

$12.18

49

Viper Red Spring

505072022

Unavailable

49

FULL MOON SPRING - Call your local BRP dealership | Blue-Black

505072024

Unavailable

50

Spring Guide

503191872

$2.18

51

Spring Stopper

706200881

$10.30

52

Front Shock | Includes 34 to 36, Europe

505071457

Unavailable

54

SPRING - Call your local BRP dealership | Europe

505071984

Unavailable

56

Spring Stopper

706200881

$10.30
