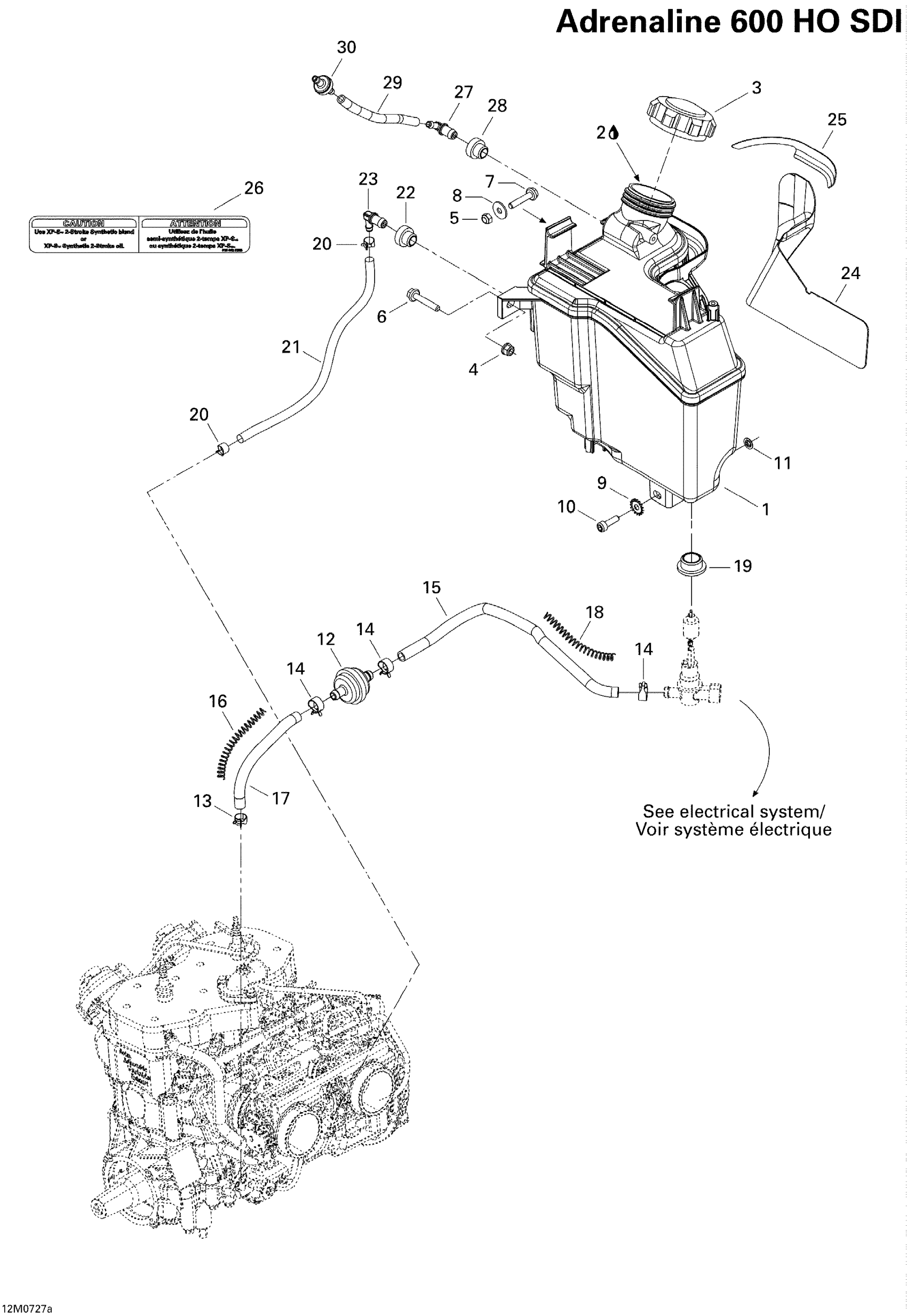

Ski-Doo Summit Adrenaline 600HO SDI, 2007 02- Oil System 600 HO SDI Diagram

#

Description
Price

1

OIL TANK - Call your local BRP dealership

519000111

Unavailable

2

OIL 2T 12X1BLEND - Call your local BRP dealership This part replaces 293600071.

293600100

Unavailable

3

CAP - Call your local BRP dealership

519000033

Unavailable

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

5

Elastic Stop Nut M6

232561414

$0.55

6

Hex. Flange Screw M6 X 35

207663544

$0.90

7

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

8

Flat Washer

250200082

$0.42

9

Lock Washer Serrated M6

250200041

$1.15

10

Torx Screw M6 X 25 | XT Models

250000728

$4.44

11

Push Nut

732610072

$2.19

12

Filter

414536500

$4.02

13

Spring Clamp

414420700

$0.72

14

Spring Clamp

414415200

$0.88

15

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

16

SPRING - Call your local BRP dealership

519000064

Unavailable

17

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

18

SPRING - Call your local BRP dealership

519000065

Unavailable

19

Insulating Ring

570023000

$5.61

20

Spring Clamp

414554800

$0.88

21

Polyurethane Hose 10000Mm Long

219704410

$56.99

22

Grommet

513032908

$10.49

23

Male Connector

414580700

$4.12

24

REFLECTIVE SHEET - Call your local BRP dealership

519000054

Unavailable

25

REFLECTIVE SHEET - Call your local BRP dealership

519000072

Unavailable

26

Warning Decal, Oil

516002325

Unavailable

27

Male Connector

414580700

$4.12

28

Grommet

513032908

$10.49

29

Polyurethane Hose 10000Mm Long

219704410

$56.99

30

Check Valve

275500398

$10.99
