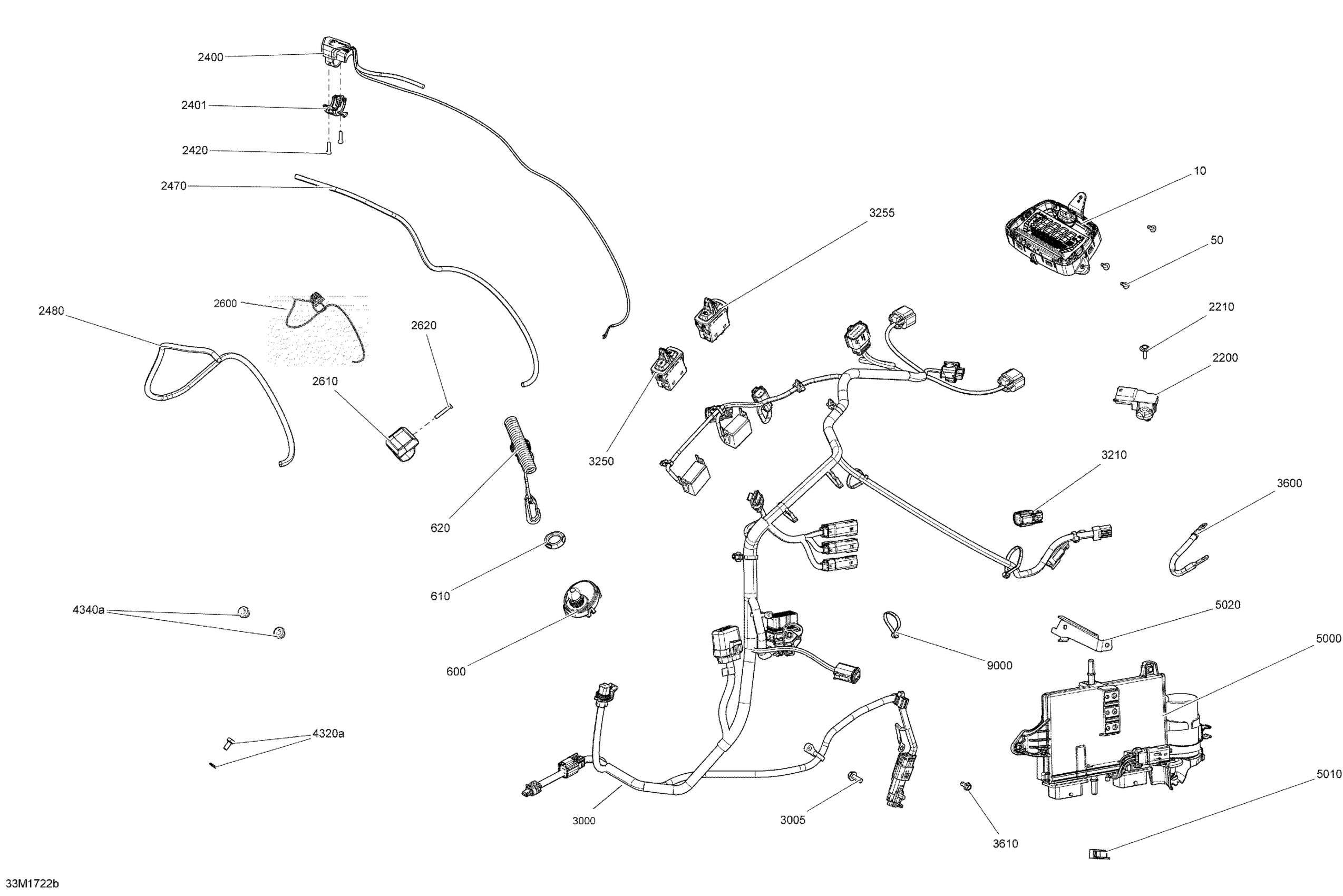

Ski-Doo SUMMIT - 850 E-TEC, 2017 Electrical System - With Manual Start Diagram

Description

Price

Multifunction Gauge Compact Mono

515178810

$480.57

10a

Not Available As Spare Part - Friction Washer

Unavailable

Torx Truss Screw K40 X 12

250000577

$2.00

600

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

610

Safety Nut (DESS Switch)

278002963

$3.12

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$62.66

2200

Pressure And Temperature Sensor

707000995

$81.31

2210

Screw M4 X 16

250000725

$3.30

2400

Ignition Switch

515178857

$66.39

2401

Clamp

515177952

$8.31

2420

Torx Screw

250000671

$0.96

2470

Braided Sleeve

415130141

$54.45

2480

Braided Sleeve

415130141

$54.45

2600

Emergency Stop Switch

515177931

$72.36

2610

Emergency Stop Switch Support

515177310

$8.34

2620

Torx Screw #8-18

250000263

$0.99

3000

Main Harness

515178207

$344.75

3005

Hex. Flange Screw M6 X 16

210261650

$1.40

3210

4 Circuits Female Housing

515178177

$11.54

3250

Switch Rocker Hand Warmer

515178462

$18.63

3255

Rocker Switch | Headlight

515177932

$18.63

3600

Ground Wire

515178248

$23.10

3610

Hex. Flange Screw M5 X 10

207551044

$3.88

4320a

Battery Bolt Kit

250000282

$3.39

4340a

Insert

293450275

$11.36

5000>5000a

Igniton Module

512061093

$571.61

5000a

Capacitor

515177272

$82.81

5010

Rubber Stopper

515178231

$2.03

5020

Module Support

515178159

$4.15

9000

Tie Wrap 142 mm

293750002

$1.01

9000

Tie-Rap 180 mm

414115200

$0.10

9000

Tie Wrap 368 mm

293750008

$0.97
