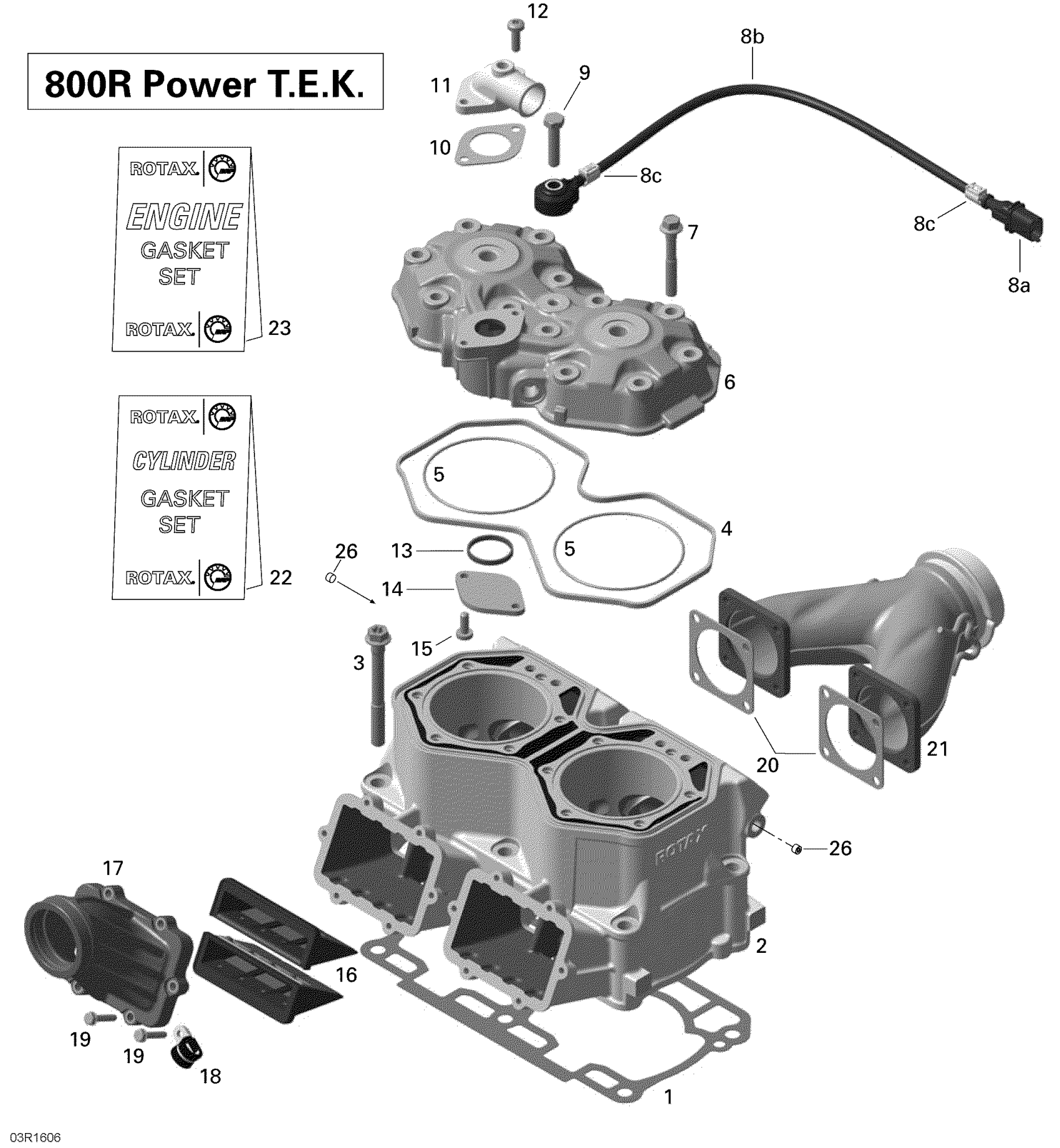

Ski-Doo SUMMIT 800R P-TEK 000CBGA00 Cylinder and Cylinder Head - 800R PTEK Diagram

#

Description
Price

1

Double Gasket 0.5 mm

420430080

$24.60

1

Double Gasket 0.6 mm

420430081

$26.84

1

Double Gasket 0.7 mm

420430082

$33.55

1

Double Gasket 0.8 mm

420430083

$33.55

1

Double Gasket 0.9 mm

420430084

$18.63

2

Cylinder

420413041

$924.60

2

Cylinder

420413041

$924.60

3

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.13

4

O-Ring

420430040

$5.52

5

O-Ring | Included in gasket kit

420931410

$3.06

6

Cylinder Head Cover

420613925

$271.61

7

Hex. Screw M8 X 56.5

420941627

$8.09

8a

Noise Sensor

270000484

$75.34

8b

TUBE - Call your local BRP dealership

420460010

Unavailable

8c

CLIP - Call your local BRP dealership

420960890

Unavailable

9

Hex. Screw M8 X 35

207083544

$1.06

10

Gasket

420850338

$9.97

11

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

12

Torx Flange Screw M6 X 20

420441386

$2.00

13

Gasket

420630780

$3.88

14

COVER - Call your local BRP dealership

420926260

$23.85

15

Torx Screw M6 X 16

420640324

$2.00

16

Reed Valve Ass'y

420924798

$38.03

17

Intake Socket

420667472

$85.04

18

Clamp

420851250

$9.03

19

Tapping Screw M5 X 22

420841550

$1.63

20

Gasket

420430482

$7.99

21

Exhaust Manifold This part replaces 420673373.

420673374

$271.61

22

Gasket Set, Cylinder

420892477

$153.70

23

Gasket Set, Engine

420892472

$332.81

24

Socket Set Screw M10 x 1.25 x 10 mm

415129628

$2.00
