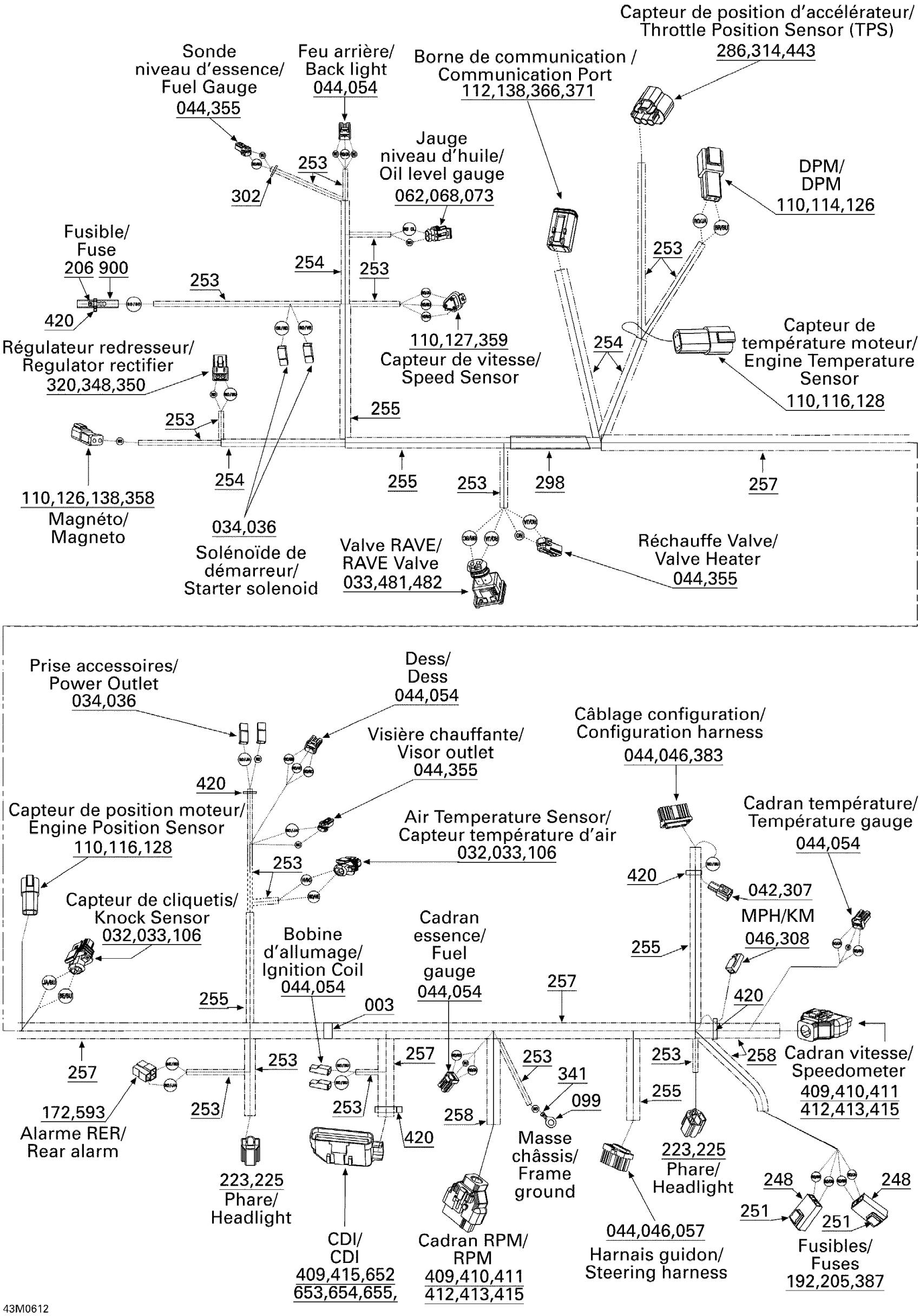

Ski-Doo Summit 800 HO, Adrenaline & X, 2006 Electrical Harness 800 HO Diagram

#

Description
Price

1

Frame Wiring Harness | Includes 1 to 900

515176320

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

32

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

33

Wire Seal

278000999

$2.55

34

Female Terminal

409010100

$5.46

36

Female Terminal Housing, 1 Circuit

409010400

$7.48

42

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

44

Female Terminal

515175231

$4.12

46

Female Terminal

515175282

$6.43

54

Female Housing, 3 Circuits

515175495

$15.35

57

Female Terminal Housing, 13 Circuits

515175350

$12.88

62

Female Terminal

278001014

$2.72

68

Female Housing, 2 Circuits

409209500

$13.48

73

Wire Seal

278001013

$2.72

77

Female Terminal

409010300

$4.12

99

Open Barrel

278000992

$1.79

106

Male Housing, 2 Circuits

278001005

$15.57

110

Male Terminal

278000631

$4.12

112

Female Terminal

278000632

$1.69

114

Male Housing, 2 Circuits

409206900

$8.98

116

Female Housing, 4 Circuits

278000635

$14.02

126

Male Lock, 2 Circuits

409207500

$3.02

127

Male Lock, 3 Circuits

409207600

$3.02

128

Female Wedge, 4 Circuits

278000636

$4.12

138

Sealing Cap

293000052

$2.55

172

Female Terminal

561503100

Unavailable

192

Fuse, 20 Amperes

409003900

$3.22

205

Female Terminal

409011600

$5.11

206

Female Terminal

409004200

$4.42

223

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

225

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

248

Fuse Holder

409004000

$7.00

251

CLIP - Call your local BRP dealership

409014200

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

$79.97

255

Was 409901800 Tubing (13 mm)

219704400

$9.40

256

Tubing 16 Mm 1000Mm Long

219704408

$6.23

257

Was 409901600 Tubing 19mm

219704398

$89.97

258

Tubing 10 MM 1000MM Long

219704407

$2.20

286

Seal

409012300

$4.38

298

Tape

293740005

Unavailable

302

Tie Wrap 94 mm | 4X4

293750001

$0.83

307

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

308

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

314

Female Terminal Housing, 3 Circuits

515176176

$15.35

320

Female Terminal

515175567

$6.03

341

Tubing Shrink

515175608

Unavailable

348

Female Terminal Housing, 2 Circuits

278001673

$23.05

350

Female Lock, 2 Circuits

278001671

$3.22

355

Female Housing, 2 Circuits

515175658

$15.35

358

Male Terminal Housing, 2 Circuits

515175665

$8.02

359

Male Housing

515175666

$13.05

366

Male Housing, 6 Circuits

515175673

$13.05

371

Male Wedge, 6 Circuits

515175678

$5.11

383

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable

387

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

409

Plug

515175812

$1.70

410

Female Housing, 24 Circuits

515175801

$9.00

411

Retainer Block

515175802

$10.66

412

Wire Seal

515175803

$2.41

413

BLOCK - Call your local BRP dealership

515175804

Unavailable

415

Female Terminal

515175806

$0.81

420

Tie-Rap 180 mm

414115200

$0.09

443

Female Terminal

710000335

$1.80

481

Female Terminal Housing, 2 Circuits

415128500

$6.31

482

Female Terminal

278000998

$3.48

484

Seal

415128501

$1.51

593

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515176069

Unavailable

652

Female Housing

515176221

$14.94

653

Wire Seal

515176222

$14.97

654

Female Terminal Housing, 36 Circuits

515176223

$12.97

655

Terminal Support

515176224

$15.02

900

Hose

415079200

Unavailable
