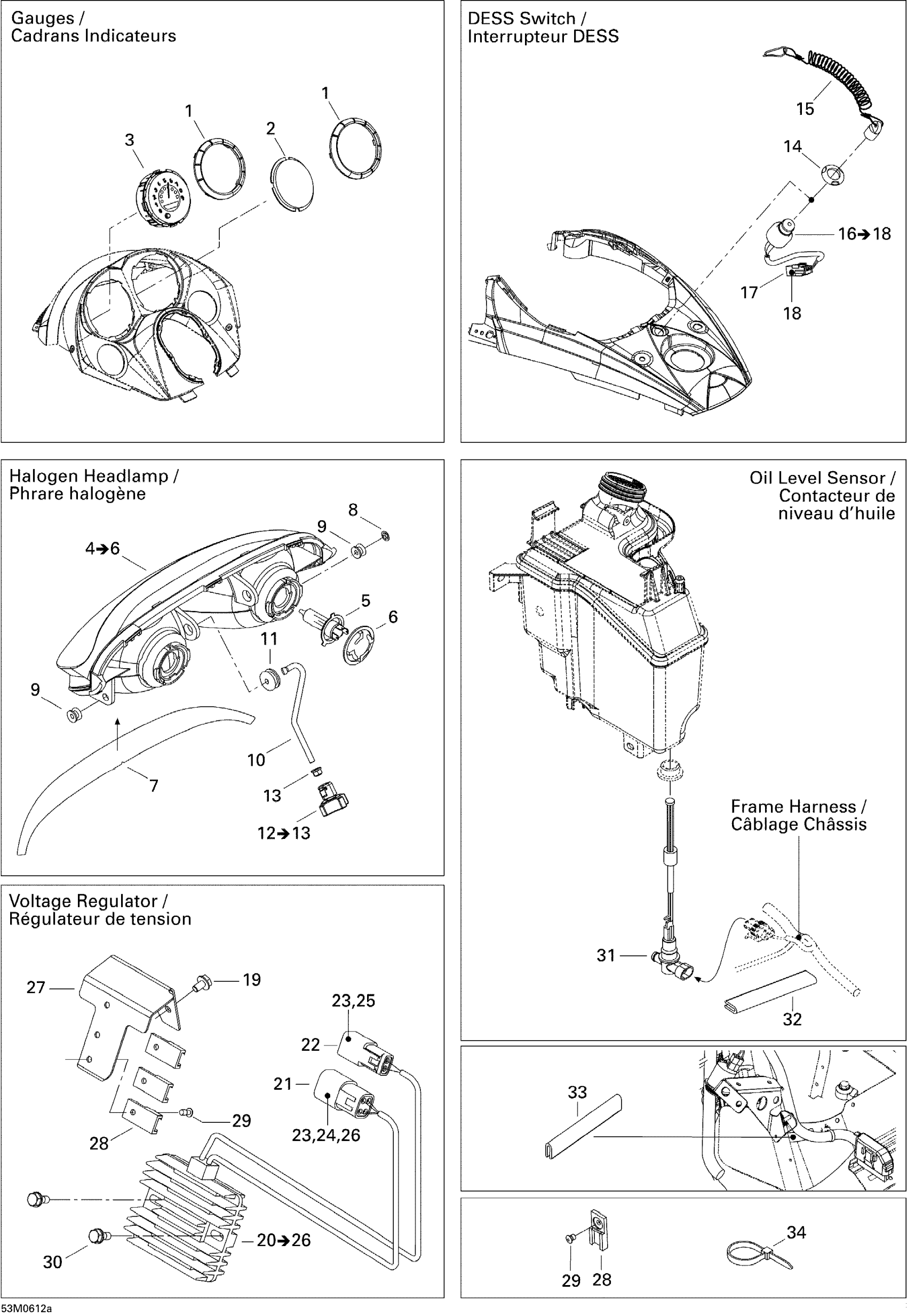

Ski-Doo Summit 800 HO, Adrenaline & X, 2006 10- Electrical Accessories 1 (800 HO) Diagram

#

Description
Price

1

Gauge Ring This part replaces 515176242.

515179005

$13.99

2

GAUGE HOLE COVER - Call your local BRP dealership

515175901

Unavailable

3

Tachometer

515176305

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

HEADLAMP DECAL - Call your local BRP dealership

516001328

Unavailable

8

Push Nut

732610072

$2.19

9

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

10

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

11

Grommet - Call your local BRP dealership

415100800

Unavailable

12

HANDLE - Call your local BRP dealership

515175975

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Safety Nut (DESS Switch)

278002963

$3.28

15

DESS

515178284

$84.99

16

DESS Switch

515177249

$114.99

17

Male Terminal

515175232

$1.58

18

Male Housing, 3 Circuits

515175494

$16.18

19

Hex. Forming Screw M6 X 10

210261050

$1.69

20

Voltage Regulator

515175968

$238.49

21

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

22

Mâle Terminal Housing, 2 Circuits

278001674

$30.49

23

Male Terminal

515175568

$9.12

24

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

25

Male Lock, 2 Circuits

278001672

$3.49

26

Sealing Cap

293000052

$3.19

27

HOUSING SUPPORT - Call your local BRP dealership

515176191

Unavailable

28

Clip

270000141

$11.49

29

Avdel Rivet 3/16"

293150037

$0.56

30

Hexagonal Head Screw

210262050

$2.11

31

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

32

TRIM - Call your local BRP dealership

509000263

Unavailable

33

Was 271000110 Protection Trim

219704353

$15.99

34

Tie Wrap 368 mm

293750008

$1.04
