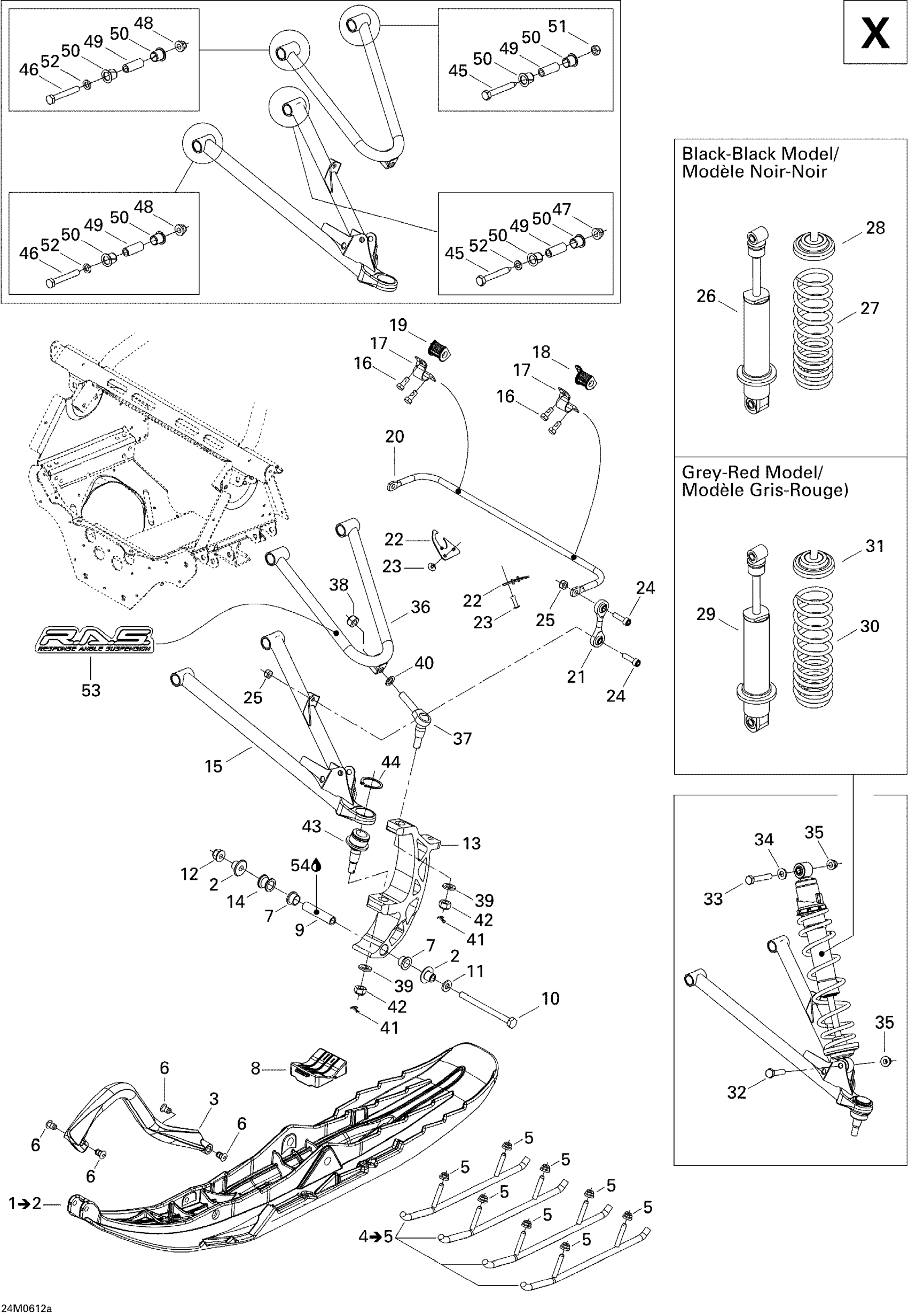

Ski-Doo Summit 800 HO, Adrenaline & X, 2006 Front Suspension And Ski X Diagram

#

Description
Price

1

Black Pilot Ski Ass'y 6.9 RH

505073056

$175.35

1

Black Pilot Ski Ass'y 6.9 LH

505073055

$175.35

2

Ski Bushing

505071781

$15.35

3

Black, Handle

505070963

$35.35

3

Viper Red Handle

505071059

$36.89

4

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$134.58

5

Hex. Flange Elastic Nut M8

233281414

$1.14

6

Retainer 17mm long

505071812

$4.43

7

Leg Bushing

505072690

$5.92

8

Ski Stopper

505071779

$16.12

9

BUSHING - Call your local BRP dealership

505071271

Unavailable

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

11

Washer

732900049

$0.57

12

Flange Nut M10

732610084

$5.49

13

SKI LEG - Call your local BRP dealership

505071248

Unavailable

14

SPACER - Call your local BRP dealership

505071215

Unavailable

15

RH LOWER ARM - Call your local BRP dealership

505071742

Unavailable

15

LH Lower Arm

505071745

Unavailable

16

Hex. Screw With Nylon

250000118

Unavailable

17

CLAMP - Call your local BRP dealership

506095800

Unavailable

18

LH BUSHING - Call your local BRP dealership

505071475

Unavailable

19

RH BUSHING - Call your local BRP dealership

505071476

Unavailable

20

STABILISATOR - Call your local BRP dealership

505071477

Unavailable

21

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

22

PLUG - Call your local BRP dealership

505071253

Unavailable

23

Pop Rivet 3/16"

293150103

$0.54

24

Socket Head Screw M8 X 30

205083044

$0.92

25

Hex. Elastic Stop Nut M8

232581414

$0.47

26

Front Shock | Black-Black

505071644

Unavailable

27

SPRING - Call your local BRP dealership | Black-Black

505071642

Unavailable

28

Spring Stopper

706200881

$10.30

29

Front Shock | Black-Black

505071644

Unavailable

30

SPRING - Call your local BRP dealership | Europe (Red-Black)

505071839

Unavailable

31

Spring Stopper

706200881

$10.30

32

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

33

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

34

Washer

503189564

$0.72

35

Hex. Flange Elastic Nut M10

233201414

$1.26

36

RH UPPER ARM - Call your local BRP dealership

505071857

Unavailable

36

LH UPPER ARM - Call your local BRP dealership

505071859

Unavailable

37

Upper Ball Joint

505071872

Unavailable

38

Hex. Flange Elastic Nut M12

250000047

$1.56

39

Flat Washer 12 mm

234021410

$0.68

40

Washer

503189276

$3.20

41

Cotter Pin

211400017

$0.25

42

Hex. Flange Elastic Nut M12

250000047

$1.56

43

Ball Joint

505073636

$49.97

44

Circlip

293370035

$2.55

45

Hex. Screw M10 X 75

250001063

$9.74

46

Hex. Screw M10 X 75

250001063

$9.74

47

Hex. Flange Elastic Nut M10

250100165

$0.70

48

Hex. Flange Elastic Nut M10

250100165

$0.70

49

Aluminium Bushing

505070960

$11.17

50

Arm Bushing

505070566

$3.14

51

Elastic Flange Nut M10

232501416

$1.25

52

Washer

503189564

$0.72

53

R.a.s. Suspension Decal

516002747

Unavailable

54

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
