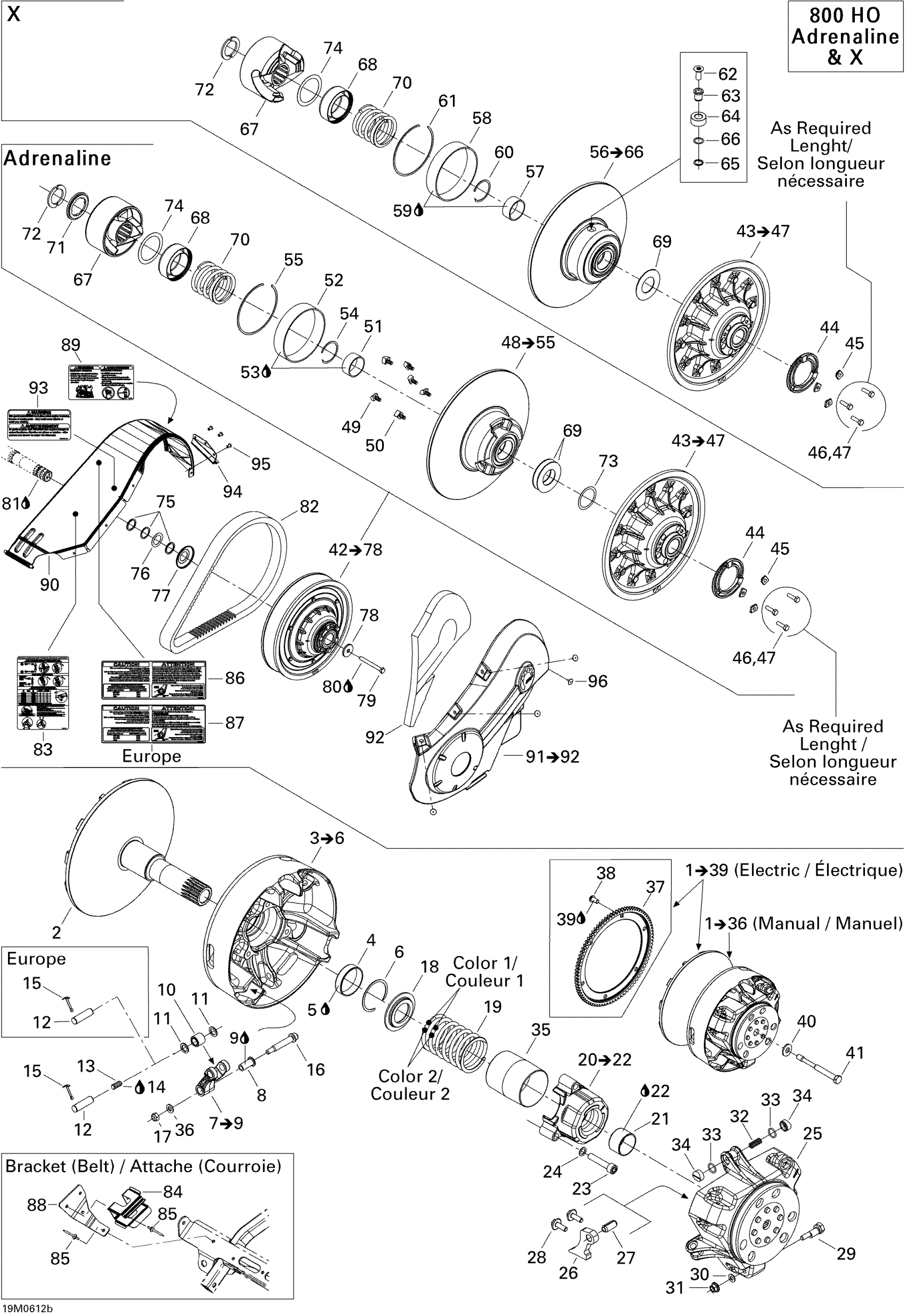

Ski-Doo Summit 800 HO, Adrenaline & X, 2006 05- Pulley System 800HO Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Flasque Fixe As*Flange-Fixe Ass. This part replaces 417222904.

417222970

$449.99

3

Flasque Coul.As*Flange-Slid Kit | Includes 3 to 6 This part replaces 417222171.

415129293

$459.99

4

Bushing

417222758

$22.49

5

Loctite 609, 10 ml

413703100

$26.99

6

Circlip

293370037

$3.19

7

Lever | Includes 10f to 10g

417222671

$49.99

8

Bushing

417222633

Unavailable

9

Loctite 609, 10 ml

413703100

$26.99

10

Roller

417222947

$21.99

11

Stopper Washer

417004302

$15.90

12

Threaded Pin, M6 | High Altitude

417222595

$23.49

12

Pin

417004308

$13.99

13

SOCKET SET SCREW M6 X 12 - Call your local BRP dealership

250000407

Unavailable

14

Loctite 243, 10 ml

293800060

$21.49

15

Cotter Pin

250400060

$2.00

16

SCREW ASS'Y - Call your local BRP dealership

417222028

Unavailable

17

Elastic Stop Nut M6

232561414

$0.55

18

Spring Seat

417222312

$9.59

19

Spring, Violet/yellow This part replaces 415128608.

415015300

$43.49

19

Spring, Violet/green | High Altitude

415015400

$43.49

20

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

21

Bushing

417009204

$17.49

22

Loctite 609, 10 ml

413703100

$26.99

23

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

24

Lock Washer 8 mm

250200009

$2.11

25

Governor Cup

417222213

Unavailable

26

RAMP 415 - Call your local BRP dealership

417222548

Unavailable

27

Spring Pin M10 X 22

250400050

$2.99

28

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

29

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

30

Washer

417005600

$4.09

31

Hex. Flange Nut M6

233061414

$1.68

32

Spring

417005700

$4.76

33

O-Ring

732401030

$0.98

34

Slider Shoe This part replaces 420460045.

417223021

$5.90

35

Guard

417009205

$21.99

36

Flat Washer 6 mm

234061410

$1.36

37

Ring Gear_Starter This part replaces 417223738.

417225070

$239.99

38

Hex. Screw M8 X 16

236281684

$4.12

39

Loctite 271, 10 ml

293800005

$26.99

40

Spring Washer 14 mm

250200006

$6.99

41

Drive Pulley Bolt

417120000

$65.49

42

Not Available As Spare Part - Friction Washer

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

FIXED FLANGE ASS'Y - Call your local BRP dealership | Includes 40 to 44

417126807

Unavailable

44

Adjustment Ring

415005800

Unavailable

45

Adjustment Shim

415005900

Unavailable

46

Hex. Screw M6 X 25

207162544

$1.15

47

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

48

SLIDING FLANGE ASS'Y - Call your local BRP dealership | Includes 39 to 46

417126909

Unavailable

49

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

$4.65

50

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.38

51

BUSHING - Call your local BRP dealership

417126901

Unavailable

52

BUSHING - Call your local BRP dealership

417126902

Unavailable

53

Loctite, Black Max, 3 ml

413408300

$26.99

54

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

55

CIRCLIP - Call your local BRP dealership

417126878

Unavailable

56

Sliding Flange Ass'y

417127014

Unavailable

57

BUSHING - Call your local BRP dealership

417126901

Unavailable

58

BUSHING - Call your local BRP dealership

417126902

Unavailable

59

Loctite, Black Max, 3 ml

413408300

$26.99

60

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

61

CIRCLIP - Call your local BRP dealership

417126878

Unavailable

62

TORX SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership

235382046

$1.69

63

Stud

417127015

$46.99

64

Roller

417126892

$36.99

65

V-CIRCLIP - Call your local BRP dealership

417126823

Unavailable

66

WASHER - Call your local BRP dealership

417126797

$6.99

67

CAM ASS'Y - Call your local BRP dealership

417126445

Unavailable

67

Cam Ass’y

417126967

Unavailable

67

Cam Ass’y | X With 159" Track

417126968

Unavailable

68

GUARD - Call your local BRP dealership

417126381

Unavailable

69

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

70

Release Spring, Purple | North America

414978300

$33.99

71

SPACER - Call your local BRP dealership

417126733

Unavailable

72

HALF KEY - Call your local BRP dealership

417126734

Unavailable

73

SHIM - Call your local BRP dealership

504112300

Unavailable

74

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

75

Spacer

417300252

$5.49

75

Spacer

417300265

$2.29

76

Shim

504112000

$8.59

77

PROTECTOR - Call your local BRP dealership

417300238

Unavailable

78

Strength Washer

517302322

$12.63

79

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

80

Loctite 243, 10 ml

293800060

$21.49

81

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

82

Drive Belt

417300551

$179.99

83

Decal, Suspension Adjustment

516001639

Unavailable

84

Bracket

517281905

$18.49

85

Pop Rivet 3/16"

390402200

$0.35

86

Caution Decal,Altitude

516002737

Unavailable

87

Caution Decal, Altitude | Europe

516002738

Unavailable

88

Bracket

417300282

Unavailable

89

EMERGENCY STARTING LABEL - Call your local BRP dealership

516002674

Unavailable

90

BELT GUARD - Call your local BRP dealership

417300213

Unavailable

91

SIDE PROTECTOR ASS'Y - Call your local BRP dealership | Includes 53 to 54

417300301

Unavailable

92

Foam

417300246

Unavailable

93

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

94

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

95

Avex Rivet

390909200

$0.30

96

Pop Rivet 3/16"

293150103

$0.55
