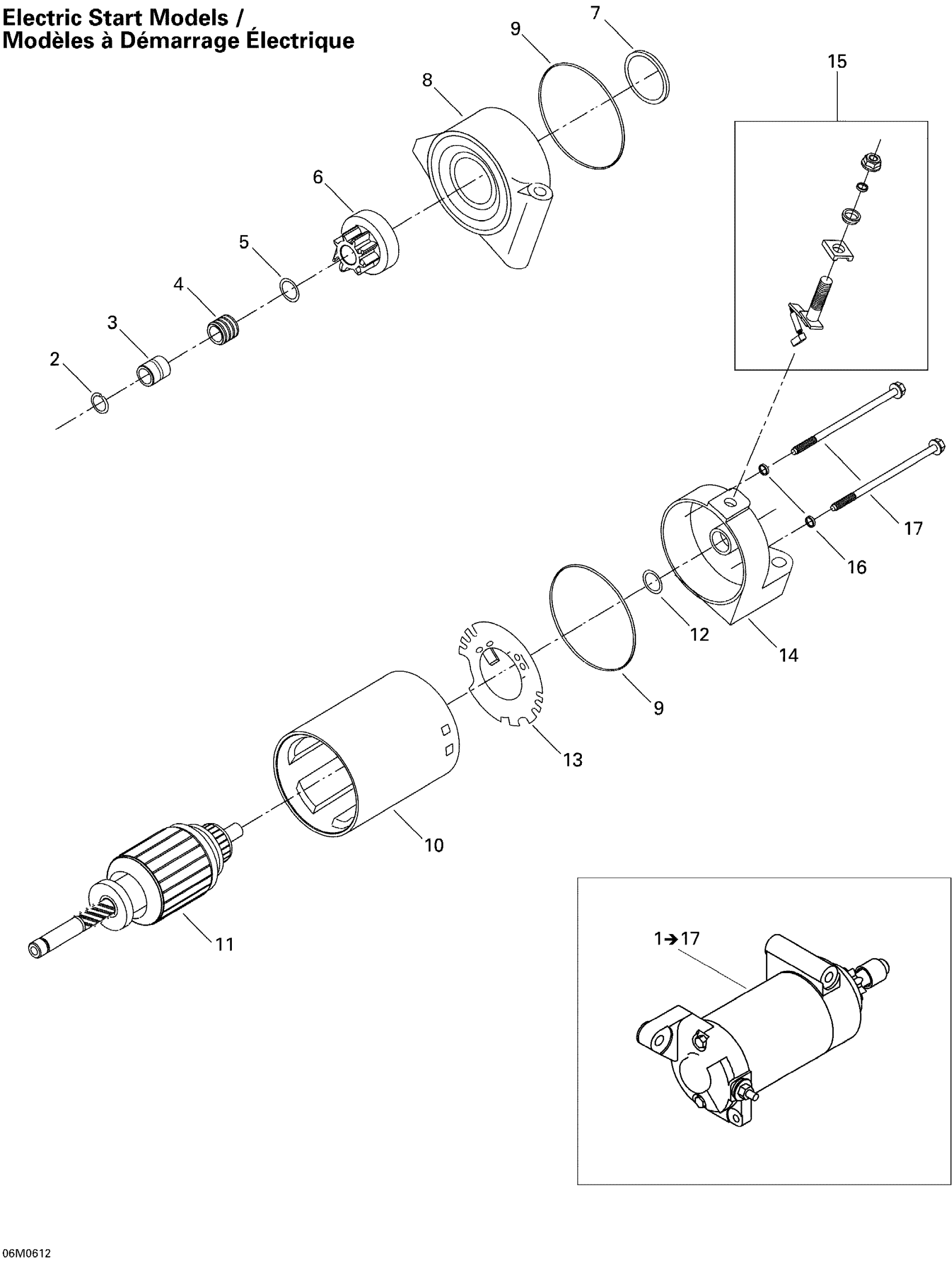

Ski-Doo Summit 800 HO, Adrenaline & X, 2006 Electric Starter 800 HO Diagram

#

Description

Price

1

Electric Starter Ass'y

515176133

$319.49

2

SNAP RING - Call your local BRP dealership

410207700

Unavailable

3

Ens.Embrayage*Kit-Clutch This part replaces 515175928.

415129338

Unavailable

4

Ens.Embrayage*Kit-Clutch This part replaces 515175928.

415129338

Unavailable

5

WASHER PLATE - Call your local BRP dealership

278001105

Unavailable

6

Ens.Embrayage*Kit-Clutch This part replaces 515175928.

415129338

Unavailable

7

O-Ring Kit This part replaces 278000696.

415129342

$13.99

8

Housing

410922959

Unavailable

9

O-Ring

278000695

$13.99

10

Starter Housing

410213104

Unavailable

11

Armature Ass’Y

515175785

Unavailable

12

FLAT WASHER - Call your local BRP dealership

410204500

Unavailable

13

BRUSH HOLDER - Call your local BRP dealership

515175786

Unavailable

14

HOUSING - Call your local BRP dealership

410922960

Unavailable

15

Brush Kit

410212100

$34.99

16

O-RING - Call your local BRP dealership

278000060

Unavailable

17

Bolt

410922961

Unavailable
