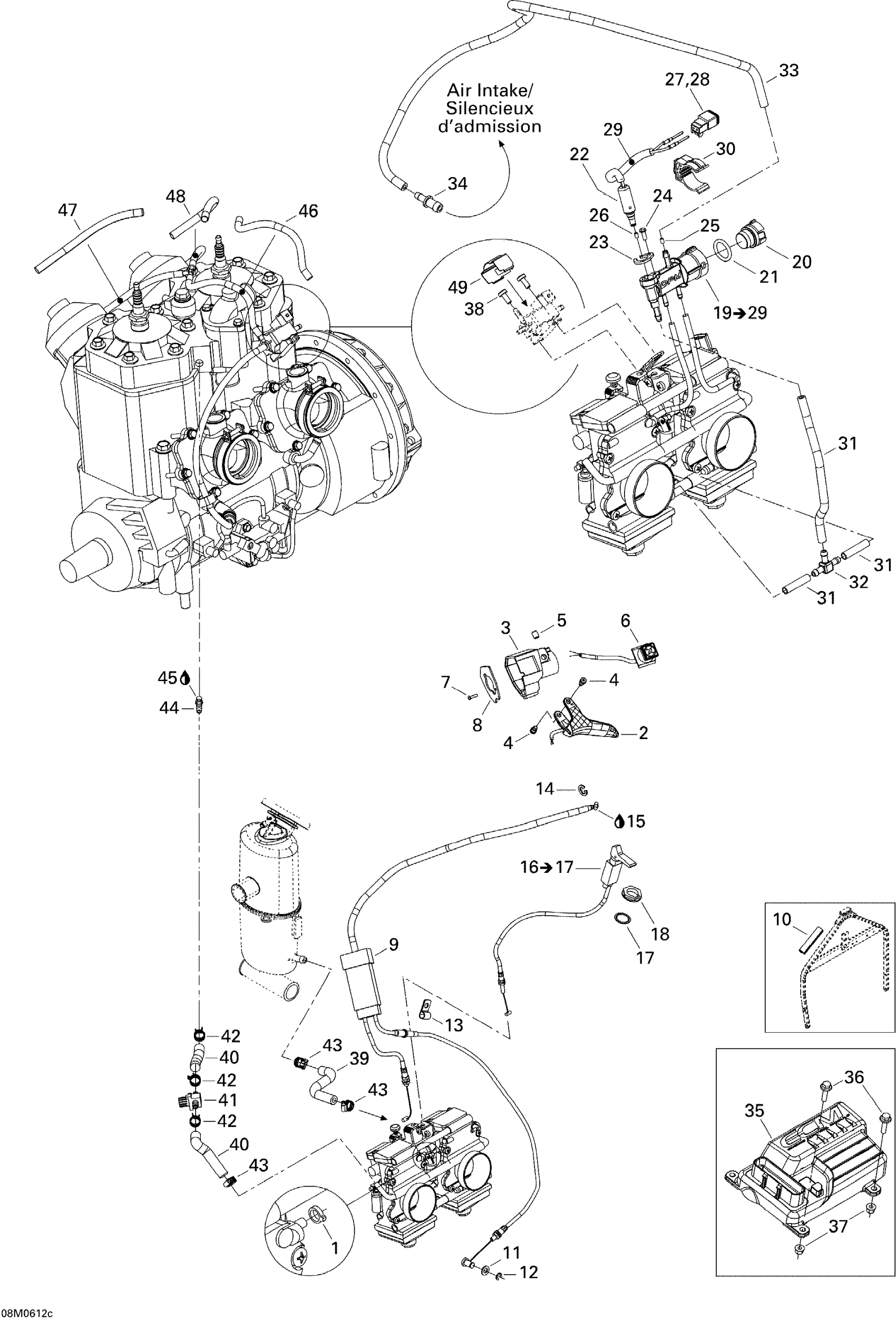

Ski-Doo Summit 800 HO, Adrenaline & X, 2006 Engine 2 Diagram

#

Description
Price

1

Tie Wrap 94 mm | 4X4

293750001

$0.83

2

Throttle Handle Ass'y | Includes 13 to 14

512060484

$118.43

3

Throttle Housing

512060603

$10.57

4

Flange Screw

732601143

$4.02

5

Socket Set Screw M8 X 10

414440800

$4.00

6

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.54

7

SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership

250000022

Unavailable

8

Plate

512060390

$9.31

9

THROTTLE CABLE - Call your local BRP dealership

512060084

Unavailable

9

THROTTLE CABLE - Call your local BRP dealership

512060088

Unavailable

10

PROTECTOR - Call your local BRP dealership

512059750

Unavailable

11

Flat Washer 8 mm, Nylon

234081100

$1.00

12

Circlip

414753500

$0.59

13

Open Clamp

414176000

$1.86

14

Circlip

414274500

$0.74

15

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

16

CHOKE CABLE - Call your local BRP dealership | Includes 47 to 48

512059266

Unavailable

17

Lock Washer, Interior Teeth

394103300

Unavailable

18

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

19

PRESSURE MANIFOLD ASS'Y - Call your local BRP dealership

512060002

Unavailable

20

CAP - Call your local BRP dealership

270600009

Unavailable

21

O-RING - Call your local BRP dealership

293300042

Unavailable

22

PRESSURE MANIFOLD HARNESS - Call your local BRP dealership

515175701

Unavailable

23

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

24

Screw K40 X 10

241140060

$1.25

25

Starter Jet | 800 H.O.

404161819

Unavailable

26

STARTER JET - Call your local BRP dealership

404161825

Unavailable

27

Female Terminal Housing, 2 Circuits

515175670

$7.85

28

Female Lock, 2 Circuits

515175675

$4.42

29

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

30

SUPPORT - Call your local BRP dealership

512058919

Unavailable

31

Polyurethane Hose 10000Mm Long

219704410

$46.12

32

T-FITTING - Call your local BRP dealership | Engine 800R

414729300

Unavailable

33

Polyurethane Hose 10000Mm Long

219704410

$46.12

34

Straight Fitting

293710035

$8.63

35

Calibrated Module

512060053

Unavailable

36

Hex.Flange Screw M5 X 20

207652044

$1.56

37

Hex. Flange Elastic Nut M5

233251414

$1.66

38

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

39

FORMED HOSE - Call your local BRP dealership

509000171

Unavailable

40

Hose 8 mm

509000093

Unavailable

41

Valve 5/16” | Grand Touring 500.

512059324

$42.28

42

Spring Clamp

414655700

$0.68

43

Tridon Gear Clamp

293650170

$1.74

44

Male Connector 1/8"-27 NPT

512060196

Unavailable

45

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

46

Was 409901700 Tubing (9 mm)

219704399

$79.97

47

Was 409901700 Tubing (9 mm)

219704399

$79.97

48

Was 409901700 Tubing (9 mm)

219704399

$79.97

49

Heating Element Bracket

512059809

Unavailable
