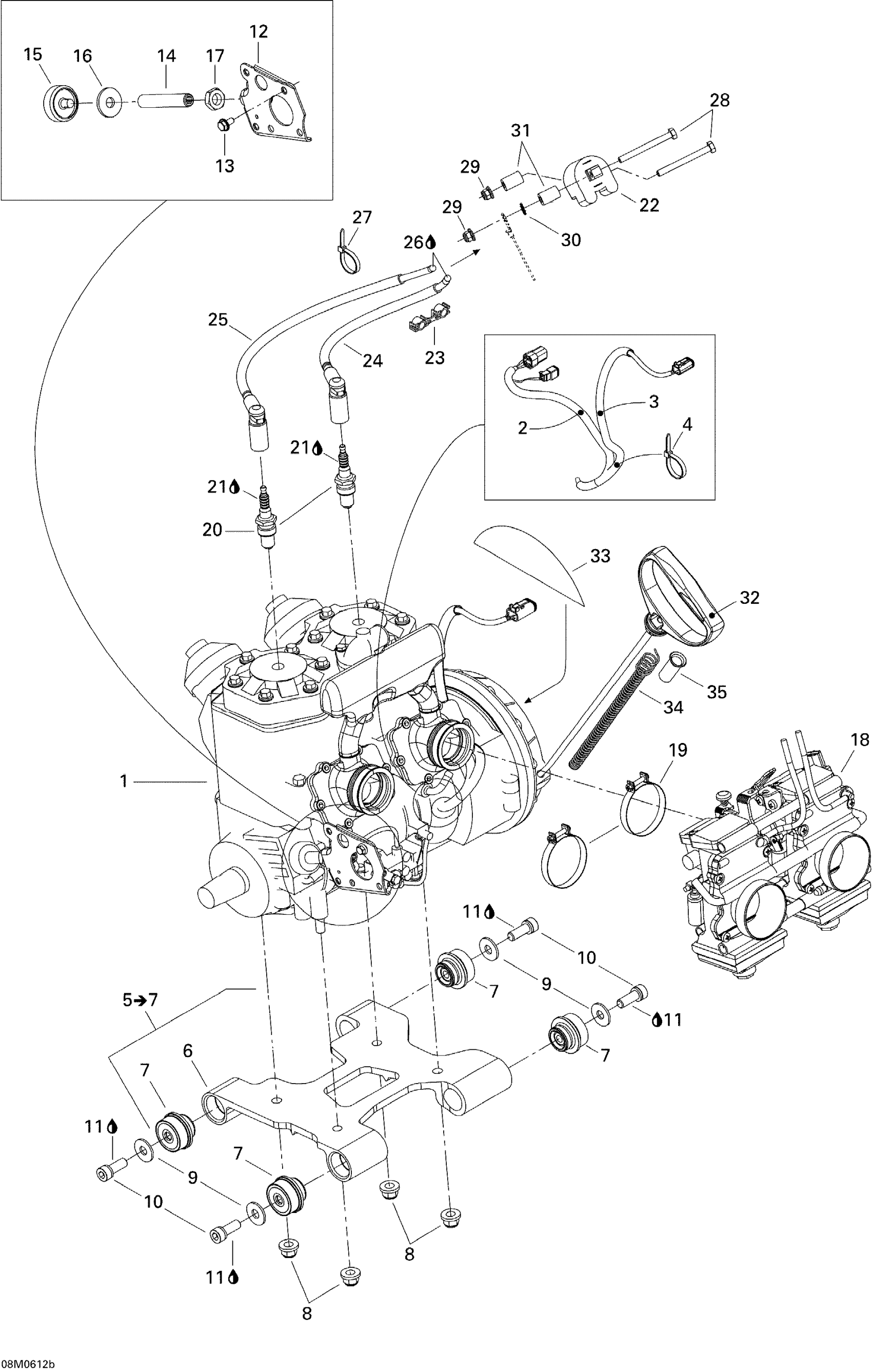

Ski-Doo Summit 800 HO, Adrenaline & X, 2006 Engine 1 Diagram

#

Description
Price

1

Engine 793 H.o.

400702631

Unavailable

2

Was 409901800 Tubing (13 mm)

219704400

$14.99

3

Tubing 10 MM 1000MM Long

219704407

$2.89

4

Tie Wrap 142 mm

293750002

$1.49

5

Engine Support Ass'y | Includes 2 to 4

512060050

Unavailable

6

ENGINE SUPPORT - Call your local BRP dealership

512060051

Unavailable

7

Rubber Mount

512059691

$48.99

8

Hex. Flange Elastic Nut M10

233201414

$1.59

9

Flat Washer M10 | 4X4

250200014

$1.49

10

Socket Head Screw M10 X 25

205002544

$1.49

11

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

12

PLATE - Call your local BRP dealership

512059840

Unavailable

13

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.99

14

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

15

STOPPER - Call your local BRP dealership

512059610

Unavailable

16

WASHER - Call your local BRP dealership

512059057

Unavailable

17

Hex. Jam Nut M14

232170411

$1.49

18

Carburetor Kit Tm40-b346

403138790

Unavailable

19

Gemi Clamp

512059835

$11.49

20

Spark Plug NGK BR9ECS

415128524

$11.99

21

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

22

Ignition Coil

512059968

$52.99

23

Plastic Clip, Spark Plug Wire

410914600

$5.69

24

CABLE ASSY, 300 MM - Call your local BRP dealership

512059695

Unavailable

25

Cable Ass’y, 375 mm

512059696

$82.99

26

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

27

Tie-Rap 180 mm

414115200

$1.49

28

Hex. Screw M6 X 60

207066044

$1.49

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

30

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

31

Spacer

517203200

$16.49

32

Starter Grip

572084400

$15.49

33

REFLECTIVE SHEET - Call your local BRP dealership

512059893

Unavailable

34

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

35

TUBE - Call your local BRP dealership

512059536

Unavailable
