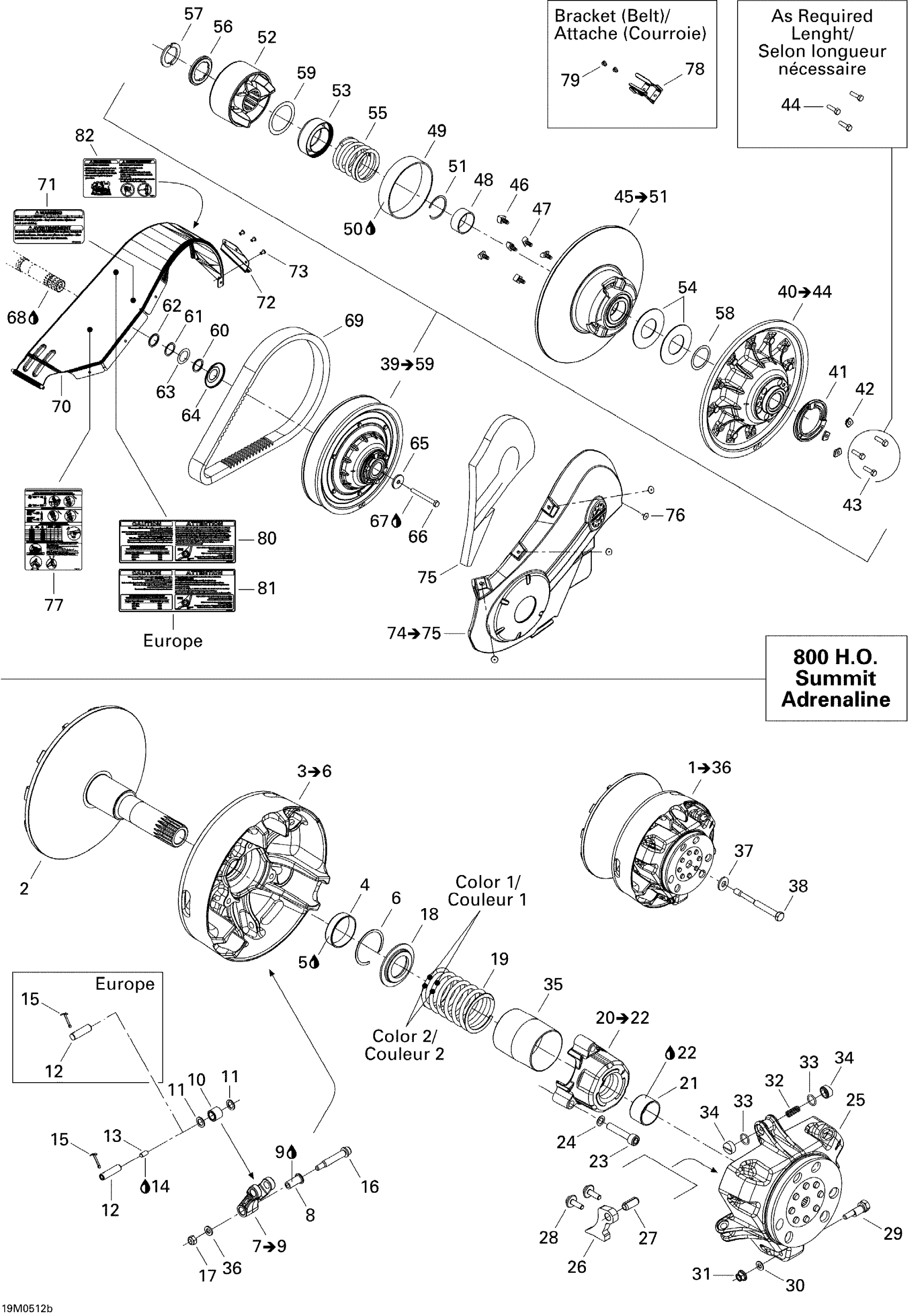

Ski-Doo Summit 800 HO, 2005 Pulley System 800HO ADRENALINE Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Flasque Fixe As*Flange-Fixe Ass. This part replaces 417222904.

417222970

$268.63

3

Flasque Coul.As*Flange-Slid Kit | Includes 3 to 6 This part replaces 417222171.

415129293

$411.16

4

Bushing

417222758

$20.12

5

Loctite 609, 10 ml

413703100

$23.85

6

Circlip

293370037

$2.93

7

Lever | Includes 10f to 10g

417222671

$46.24

8

Bushing

417222633

Unavailable

9

Loctite 609, 10 ml

413703100

$23.85

10

Roller

417222947

$19.37

11

Stopper Washer

417004302

$15.64

12

Pin

417004308

$12.79

12

Threaded Pin, M6 | High Altitude

417222595

$21.61

13

SOCKET SET SCREW M6 X 12 - Call your local BRP dealership

250000407

Unavailable

14

Loctite 243, 10 ml

293800060

$21.49

15

Cotter Pin

250400060

$1.84

16

SCREW ASS'Y - Call your local BRP dealership

417222028

Unavailable

17

Elastic Stop Nut M6

232561414

$1.78

18

Spring Seat

417222312

$8.03

19

Spring, Violet/yellow This part replaces 415128608.

415015300

$41.01

19

Spring, Violet/green | High Altitude

415015400

$41.01

20

Spring Cover Ass'y | Includes 10r to 10t

417007500

$44.75

21

Bushing

417009204

$15.64

22

Loctite 609, 10 ml

413703100

$23.85

23

Socket Head Screw M8 X 1.25 X 40

205084044

$2.72

24

Lock Washer 8 mm

250200009

$2.00

25

Governor Cup

417222213

Unavailable

26

RAMP 415 - Call your local BRP dealership

417222548

Unavailable

26

RAMP 415 - Call your local BRP dealership

417222548

Unavailable

27

Spring Pin M10 X 22

250400050

$2.73

28

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.75

29

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

30

Washer

417005600

$3.75

31

Hex. Flange Nut M6

233061414

$1.54

32

Spring

417005700

$4.51

33

O-Ring

732401030

$0.93

34

Slider Shoe This part replaces 420460045.

417223021

$5.99

35

Guard

417009205

$16.39

36

Flat Washer 6 mm

234061410

$1.19

37

Spring Washer 14 mm

250200006

$6.66

38

Drive Pulley Bolt

417120000

$61.91

39

Not Available As Spare Part - Friction Washer

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Fixed Flange Ass'y | Includes 40 to 44

417126603

Unavailable

41

Adjustment Ring

415005800

Unavailable

42

Adjustment Shim

415005900

Unavailable

43

Hex. Screw M6 X 25

207162544

$1.01

44

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

45

SLIDING FLANGE ASS'Y - Call your local BRP dealership | Includes 39 to 46

417126909

Unavailable

46

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

Unavailable

47

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.18

48

Not Available As Spare Part - Friction Washer

Unavailable

49

BUSHING - Call your local BRP dealership

417126902

Unavailable

50

Loctite 609, 10 ml

413703100

$23.85

51

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

52

CAM ASS'Y - Call your local BRP dealership

417126445

Unavailable

52

CAM ASS'Y - Call your local BRP dealership

417126445

Unavailable

53

GUARD - Call your local BRP dealership

417126381

Unavailable

54

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

55

SPRING, BLACK - Call your local BRP dealership

417126687

Unavailable

55

Release Spring, Purple | North America

414978300

$32.06

56

SPACER - Call your local BRP dealership

417126733

Unavailable

57

HALF KEY - Call your local BRP dealership

417126734

Unavailable

58

SHIM - Call your local BRP dealership

504112300

Unavailable

59

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

60

Spacer

417300252

$5.01

61

Spacer

417300265

$2.06

62

Spacer

417300252

$5.01

63

Shim

504112000

$5.87

64

PROTECTOR - Call your local BRP dealership

417300238

Unavailable

65

Strength Washer

517302322

$10.76

66

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

67

Loctite 243, 10 ml

293800060

$21.49

68

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

69

Drive Belt

417300551

$167.13

70

BELT GUARD - Call your local BRP dealership

417300213

Unavailable

71

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

72

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

73

Avex Rivet

390909200

$0.28

74

Side Protector Ass'y | Includes 49 to 50

417300248

Unavailable

75

Foam

417300246

Unavailable

76

Pop Rivet 3/16"

293150103

$0.52

77

Decal, Suspension Adjustment

516001639

Unavailable

78

Bracket

517281905

$14.90

79

Pop Rivet 3/16"

390402200

$0.30

80

Caution Decal,Altitude

516002737

Unavailable

81

Caution Decal, Altitude | Europe

516002738

Unavailable

82

EMERGENCY STARTING LABEL - Call your local BRP dealership

516002674

Unavailable
