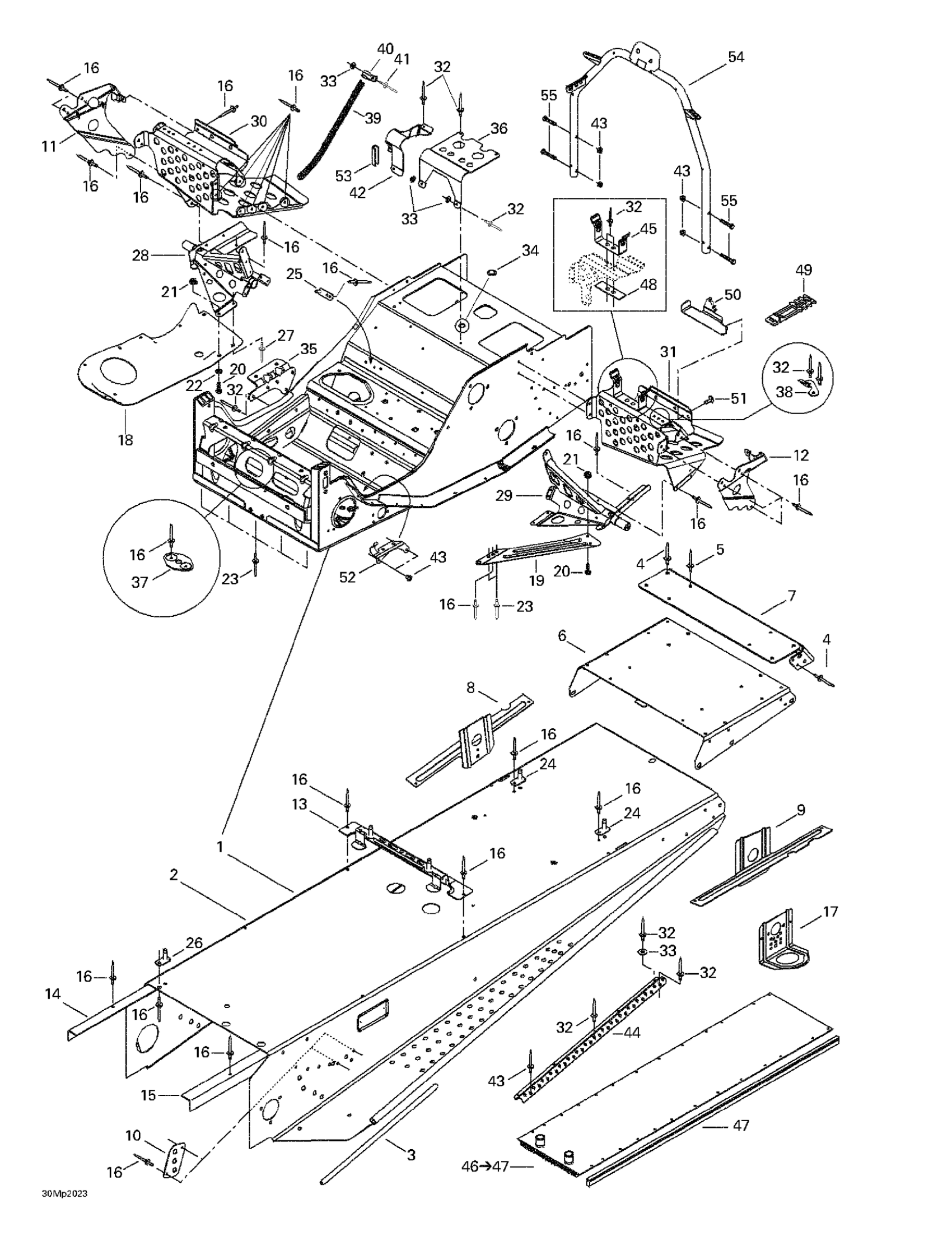

Ski-Doo Summit 800 H.M., 2000 09- Frame And Accessories Diagram

#

Description
Price

1

Frame | Summit 700 HM.

518322100

Unavailable

2

Forming Frame (Tunnel) | Summit 700 HM.

518322118

Unavailable

3

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

4

Pop Rivet 3/16"

390402200

$0.35

5

Pop Rivet 3/16"

390402300

$0.75

6

Frame Extension | Summit 700 HM.

518321858

Unavailable

7

Rear Cap | Summit 700 HM.

518321964

Unavailable

8

RHRear Bracket (H.M., H.M.X) | Summit 700. Summit 800.

518321965

Unavailable

9

LH Rear Bracket (H.M., H.M.X) | Summit 700. Summit 800.

518321966

Unavailable

10

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

11

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321305

Unavailable

12

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321307

Unavailable

13

Tank bracket | HIGHMARK & HIGHMARK X Summit 700.. HIGHMARK X EXTREME Summit 800 HO.

518322022

Unavailable

14

RH Frame Reinforcement

518321919

Unavailable

15

LH Frame Reinforcement

518321920

Unavailable

16

Pop Rivet 3/16"

390402200

$0.35

17

Front Bracket

518321495

Unavailable

18

RH Bottom Pan Plate | 600

518319760

Unavailable

19

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

Unavailable

20

Hex. Screw M5 X 20

207152044

$0.90

21

Hex. Flange Elastic Nut M5

233251414

$1.04

22

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

23

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

24

Guide

518319730

Unavailable

25

Double Bracket

518319728

Unavailable

26

Guide

518321604

Unavailable

27

Pop Rivet 3/16"

390402300

$0.75

28

RH Footrest Support

518320506

Unavailable

29

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

30

RH Footrest

518319722

Unavailable

31

LH Footrest

518319723

Unavailable

32

Pop Rivet 3/16"

390402200

$0.35

33

Flat Washer

517225900

$0.18

34

CAP - Call your local BRP dealership

414859400

Unavailable

35

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

36

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

37

Plate Bracket

518201307

Unavailable

38

TOOL KIT BRACKET - Call your local BRP dealership

518322031

Unavailable

39

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

40

Open Clamp

518321570

$7.69

41

Pop Rivet 3/16"

390406500

$0.88

42

Hose Support

518319762

Unavailable

43

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

44

STRIP - Call your local BRP dealership

518319405

Unavailable

45

Belt Guard Bracket

518202100

$17.49

46

Rear Radiator | Summit 700 HM.

518321868

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

49

LATCH - Call your local BRP dealership

570069700

Unavailable

50

Tool Kit Support

518321999

Unavailable

51

Pop Rivet 3/16"

390406500

$0.88

52

Cable Support

515175254

Unavailable

53

Was 271000110 Protection Trim

219704353

$15.99

54

Handle Support

518321957

Unavailable

55

Hex. Flange Screw M6 X 35

207663544

$0.90
