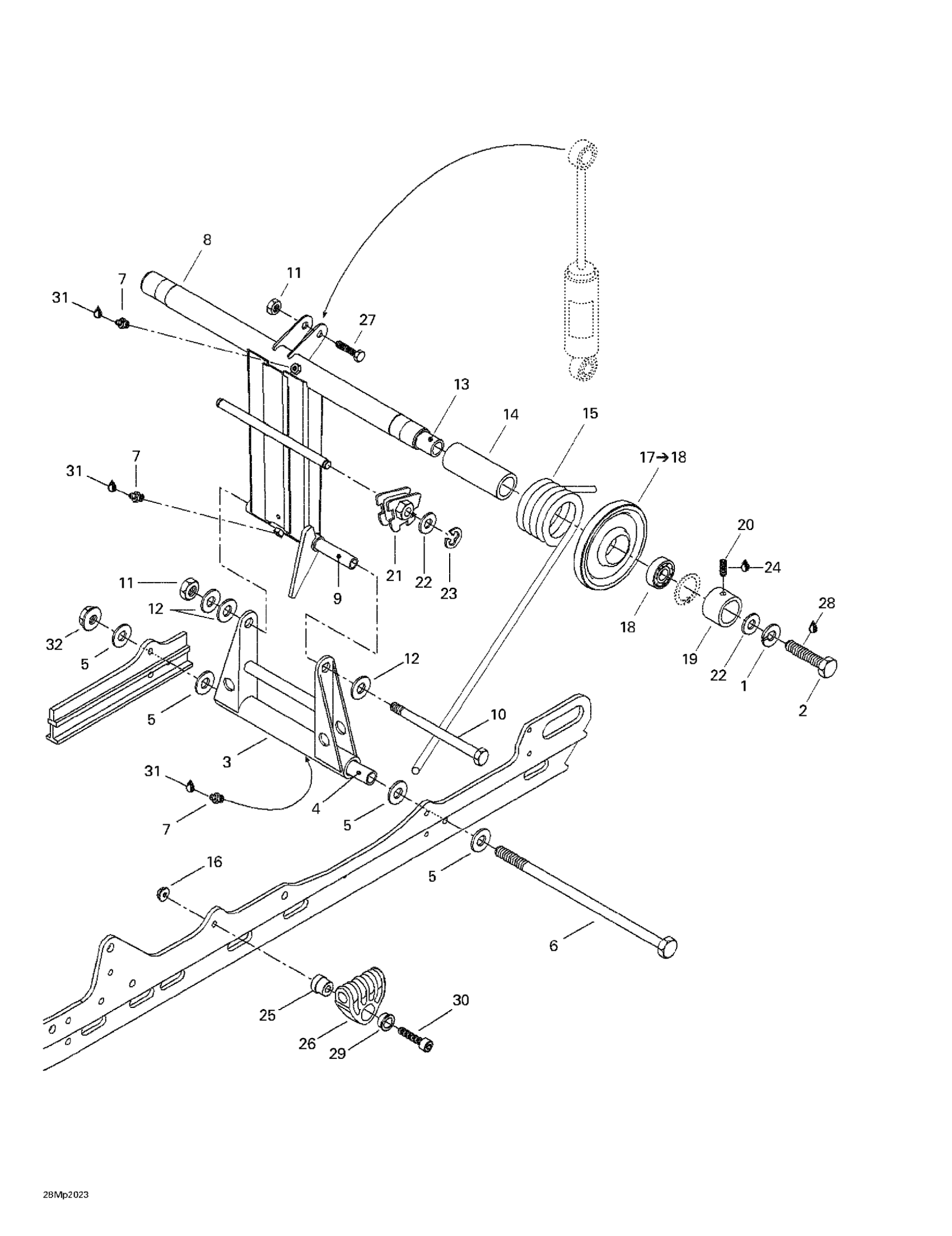

Ski-Doo Summit 800 H.M., 2000 08- Rear Arm Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

2

Hex. Screw M10 X 35

207103544

$1.58

3

Pivot Welded Arm

503169200

Unavailable

4

Lower Axle Pivot

503154703

Unavailable

5

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

6

Bolt M8 X 248mm

503192440

$30.49

7

Grease Fitting

408200700

$3.49

8

Rear Arm

503170700

Unavailable

9

Upper Axle, Pivot Arm

503144300

$11.65

10

Bolt M8, Short

732601197

$15.36

11

Hex. Elastic Stop Nut M8

232581414

$0.56

12

Flat Washer 8 mm

234081410

$0.83

13

Rear Cross Shaft

503168700

Unavailable

14

BUSHING - Call your local BRP dealership

572086000

Unavailable

15

RH Spring (Europe) | MX Z 380 F.

503189354

Unavailable

LH Spring (Europe) | MX Z 380 F.

503189355

Unavailable

16

Hex. Flange Elastic Nut M8

233281414

$1.47

17

Idler Wheel | Includes 17 - 18.

572091400

Unavailable

18

Ball Bearing

293350115

$12.11

19

Retaining Ring

503168800

$14.99

20

Socket Set Screw M6 X 8

206260844

$1.48

21

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

22

Flat Washer 10 mm

234001410

$1.26

23

e Circlip

371907100

Unavailable

24

Loctite 271, 10 ml

293800005

$26.99

25

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

26

Spring Support

503189657

$11.99

27

Hex. Screw M8 X 40

207084044

$1.15

28

Loctite 243, 10 ml

293800060

$21.49

29

Spring Guide Axle

503188934

Unavailable

30

Socket Head Screw M8 X 45

205084544

$0.90

31

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

32

Hex. Flange Elastic Nut M8

233281414

$1.47
