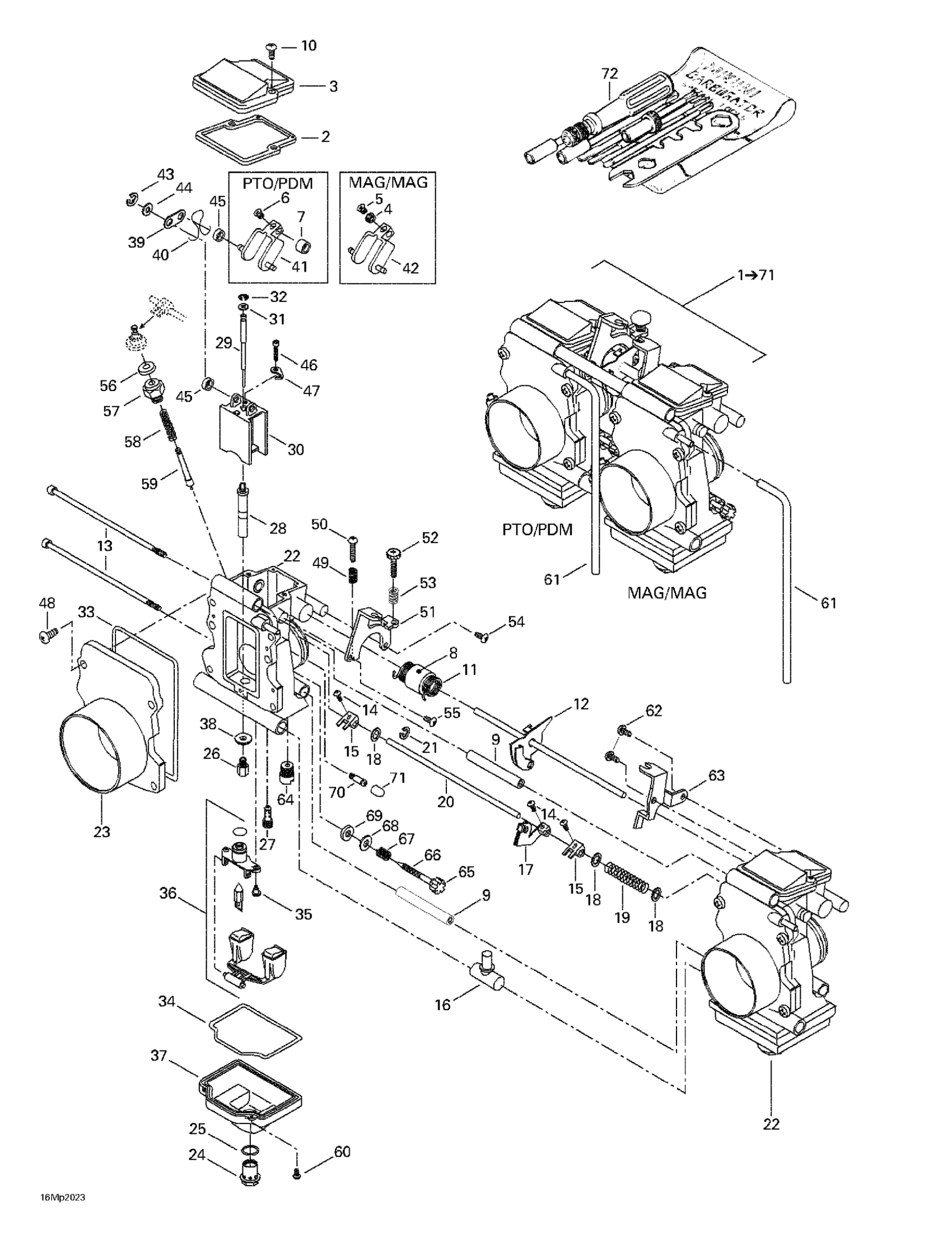

Ski-Doo Summit 800 H.M., 2000 02- Carburetors Diagram
#
Description
Price
11
TM-40-B43 Carburetor Kit
403138590
Unavailable
4
Ring
404161937
Unavailable
5
Screw
404161936
Unavailable
9
RING - Call your local BRP dealership
404161924
Unavailable
11
Spring
404161915
Unavailable
12
Throttle Shaft
404161914
Unavailable
20
Shaft | Grand Touring 500.
404161892
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
23
Funnel | MX-Z 600. MX-Z 700.
404161947
Unavailable
24
Drain Screw
404161946
Unavailable
26
Main Jet 450 (PTO)
404106500
Unavailable
28
Needle Jet
404161943
Unavailable
29
Needle J8-9HIY01-52
404161942
Unavailable
30
Needle Valve 2.0
404161941
Unavailable
34
O-RING - Call your local BRP dealership | Formula Deluxe 600.
404161934
Unavailable
37
Float Body Ass'y | Formula Deluxe 600.
404161931
Unavailable
38
WASHER - Call your local BRP dealership
404161862
Unavailable
39
Plate
404161930
Unavailable
40
Clip
404161929
Unavailable
41
Lever (PTO)
404161927
Unavailable
42
Lever (MAG)
404161938
Unavailable
44
Washer
404161922
Unavailable
45
Ring
404161921
Unavailable
51
Bracket TM 40-98 (PTO)
404161916
Unavailable
61
HOSE - Call your local BRP dealership
404161904
Unavailable
63
Bracket, Mag
404161902
Unavailable
64
Jet 331-1.1 | Formula Deluxe 600.
404161900
Unavailable
71
CAP - Call your local BRP dealership
404154900
Unavailable
72
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
