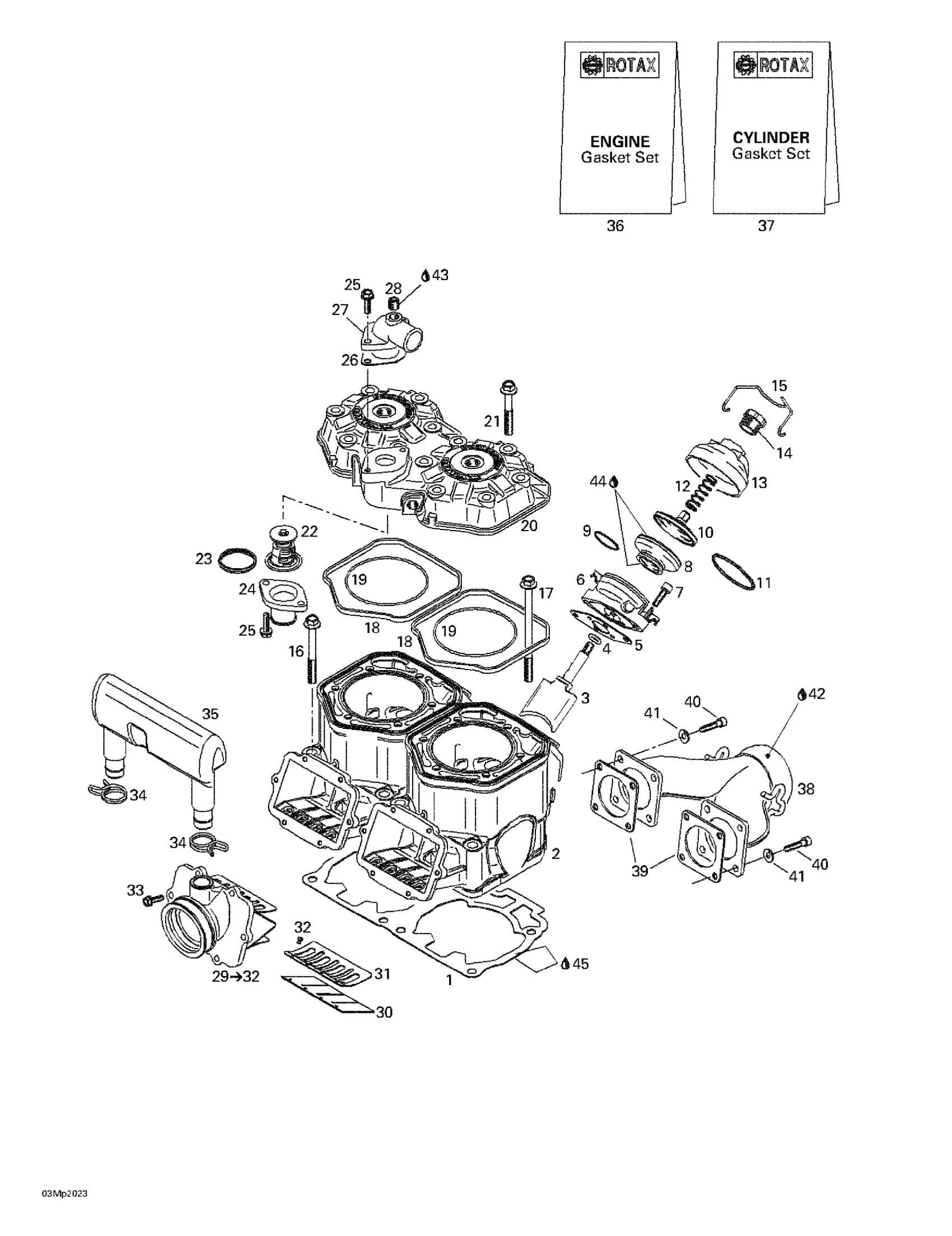

Ski-Doo Summit 800 H.M., 2000 Cylinder, Exhaust Manifold, Reed Valve Diagram

#

Description
Price

1

GASKET 0.8 - Call your local BRP dealership

420931839

Unavailable

GASKET 0.7 - Call your local BRP dealership

420931964

Unavailable

GASKET 0.6 - Call your local BRP dealership

420931837

Unavailable

GASKET 0.5 - Call your local BRP dealership

420931838

Unavailable

2

Nicasil Cylinder

420923810

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership

420854465

Unavailable

4

O-Ring

420430110

$4.15

5

Gasket

420931542

$6.42

6

Valve Housing | Grand Touring 800.

420854450

Unavailable

7

Socket Head Screw M6 X 25

205062544

$1.01

8

Bellows

420260729

$36.54

9

Hose Spring This part replaces 420838253.

420838255

$7.01

10

Exhaust Valve This part replaces 290253257.

420854449

$34.30

11

Hose Spring This part replaces 420239048.

420939281

$6.88

12

SPRING - Call your local BRP dealership

420239942

Unavailable

13

Valve Cover This part replaces 420911558.

420911559

$27.58

14

Adjuster Screw

420241221

$12.15

15

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

16

Hex. Collar Screw

420640524

$11.18

17

Hex. Collar Screw

420640534

$13.18

18

Rubber Ring

420931590

$5.52

19

O-Ring | Included in gasket kit

420931410

$3.06

20

Cylinder Head (Silver)

420923820

Unavailable

21

Hex. Screw M8 X 56.5

420941627

$8.09

22

Thermostat This part replaces 414834100.

420922519

$57.43

23

SEALING RING - Call your local BRP dealership

420931270

Unavailable

24

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

25

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.51

26

Gasket

420850338

$9.97

27

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

28

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

292

Carburetor Socket | INCLUDES ITEMS 34 TO 37

420867873

$241.01

30

Reed Pedal

420924680

$36.54

31

Reed Pedal Stop

420924695

$13.18

32

Phillips Screw M3 X 5

420941215

$1.63

33

Taptite Screw M5 X 16

420941928

Unavailable

34

CLAMP - Call your local BRP dealership

420851440

Unavailable

35

Intake Resonator

420867817

Unavailable

36

Gasket Engine Kit

420888741

$268.63

37

CYLINDER GASKET - Call your local BRP dealership

420888745

Unavailable

38

EXHAUST MANIFOLD - Call your local BRP dealership | Grand Touring 800.

420973710

Unavailable

39

Gasket

420931850

$11.43

40

Socket Head Screw M6 X 25

205062544

$1.01

41

Lock Washer M6, Black

234161471

$0.51

42

Sealant, Loctite, 80 ml | DS 650

293800090

$23.85

43

Loctite 243, 10 ml

293800060

$21.49

44

Dow Corning 111, 150 g

413707000

$59.99

45

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48
