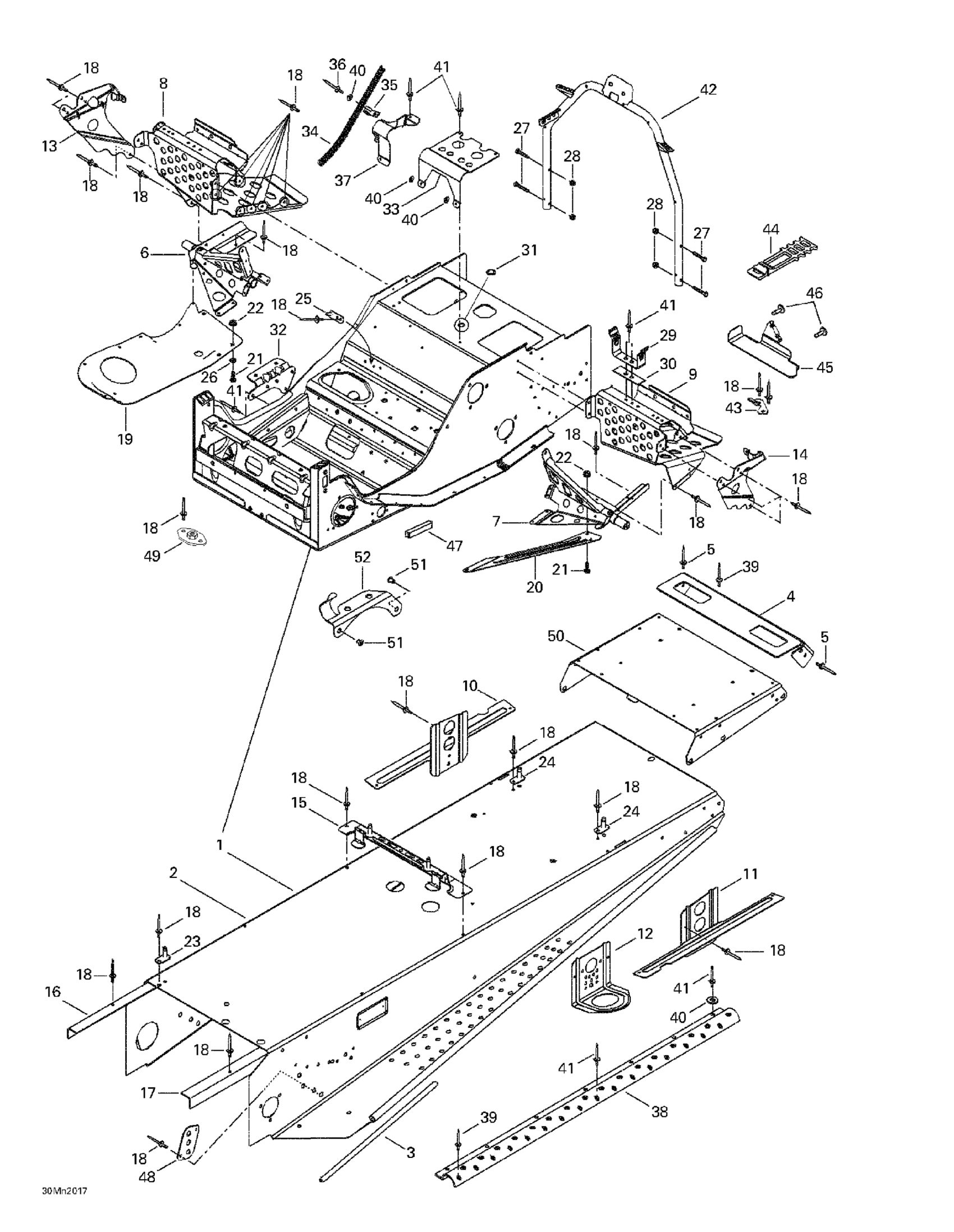

Ski-Doo Summit 700 SB, 2000 09- Frame And Accessories Diagram

#

Description
Price

1

Frame

518322097

Unavailable

Frame | Summit 700 HM.

518322100

Unavailable

2

Forming Frame

518322117

Unavailable

Forming Frame (Tunnel) | Summit 700 HM.

518322118

Unavailable

3

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

4

Rear Cap (Foothill) | Summit 800.

518321304

Unavailable

Rear Cap | Summit 700 HM.

518321964

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

RH Footrest Support

518320506

Unavailable

7

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

8

RH Footrest

518319722

Unavailable

9

LH Footrest

518319723

Unavailable

10

RH Rear Bracket

518321502

Unavailable

RHRear Bracket (H.M., H.M.X) | Summit 700. Summit 800.

518321965

Unavailable

11

LH Rear Bracket

518321506

Unavailable

LH Rear Bracket (H.M., H.M.X) | Summit 700. Summit 800.

518321966

Unavailable

12

Front Bracket

518321495

Unavailable

13

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321305

Unavailable

14

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518321307

Unavailable

15

FUEL TANK BRACKET - Call your local BRP dealership

518321510

Unavailable

Tank bracket | HIGHMARK & HIGHMARK X Summit 700.. HIGHMARK X EXTREME Summit 800 HO.

518322022

Unavailable

16

RH Frame Reinforcement

518321919

Unavailable

17

LH Frame Reinforcement

518321920

Unavailable

18

Pop Rivet 3/16"

390402200

$0.35

19

RH Bottom Pan Plate | 600

518319760

Unavailable

20

LH REINFORCEMENT PLATE - Call your local BRP dealership

518322119

Unavailable

21

Hex. Screw M5 X 20

207152044

$0.90

22

Hex. Flange Elastic Nut M5

233251414

$1.04

23

Guide

518321604

Unavailable

24

Guide

518319730

Unavailable

25

Double Bracket

518319728

Unavailable

26

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

27

Hex. Flange Screw M6 X 35

207663544

$0.90

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Belt Guard Bracket

518202100

$17.49

30

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

31

CAP - Call your local BRP dealership

414859400

Unavailable

32

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

33

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

34

ROPE GUIDE - Call your local BRP dealership

518321569

Unavailable

35

Open Clamp

518321570

$7.69

36

Pop Rivet 3/16"

390406500

$0.88

37

Hose Support

518319762

Unavailable

38

STRIP - Call your local BRP dealership

518319405

Unavailable

STRIP - Call your local BRP dealership

518319405

Unavailable

39

Pop Rivet 3/16"

390402300

$0.75

40

Flat Washer

517225900

$0.18

41

Pop Rivet 3/16"

390402200

$0.35

42

Handle Support

518321957

Unavailable

43

TOOL KIT BRACKET - Call your local BRP dealership

518322031

Unavailable

44

LATCH - Call your local BRP dealership

570069700

Unavailable

45

Tool Kit Support

518321999

Unavailable

46

Pop Rivet 3/16"

390406500

$0.88

47

Was 271000110 Protection Trim

219704353

$15.99

48

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

49

Plate Bracket

518201307

Unavailable

50

Frame Extension | Summit 700 HM.

518321858

Unavailable

51

Pop Rivet 3/16"

390402300

$0.75

52

Cable Support

515175254

Unavailable
