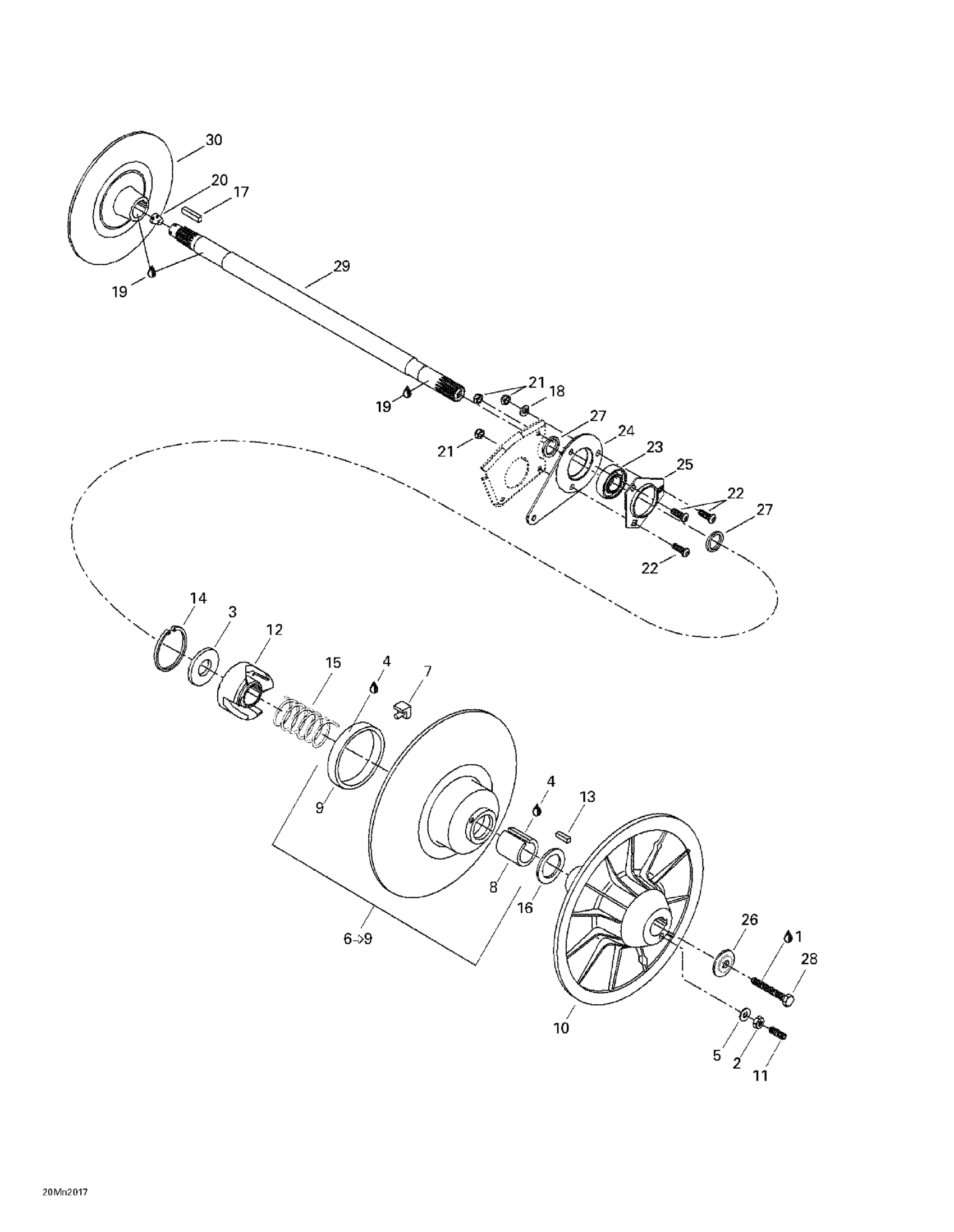

Ski-Doo Summit 700 SB, 2000 05- Driven Pulley Diagram

#

Description
Price

1

Loctite 243, 10 ml

293800060

$21.49

2

Hex. Nut M6

232061414

$0.53

3

Washer

504141800

Unavailable

4

Loctite 609, 10 ml

413703100

$26.99

5

WASHER - Call your local BRP dealership

420245370

Unavailable

6

Sliding Pulley | Includes 24 - 27.

504143400

Unavailable

7

CAM SLIDER SHOE - Call your local BRP dealership

414918000

Unavailable

8

BUSHING - Call your local BRP dealership

415011200

Unavailable

9

GARLOCK BUSHING - Call your local BRP dealership

414876600

Unavailable

10

Fixed Flange

417010200

Unavailable

11

Socket Set Screw M6 X 30

206263044

Unavailable

12

Cam 50 Deg./47 Deg | Summit 800.

417126339

Unavailable

13

Key

414820800

Unavailable

14

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

15

RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige

414558900

Unavailable

16

Thrust Washer

504141900

Unavailable

17

KEY - Call your local BRP dealership

507021300

Unavailable

18

Flat Washer 8 mm

234081410

$0.83

19

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

20

CORK - Call your local BRP dealership

414784800

Unavailable

21

Hex. Elastic Stop Nut M8

232581414

$0.56

22

SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership

205482546

Unavailable

23

BALL BEARING - Call your local BRP dealership

405408200

Unavailable

24

Spacer (Casting)

080044200

$21.99

25

FLANGE - Call your local BRP dealership

501025000

Unavailable

26

Strength Washer

517302322

$12.63

27

Spacer

504149100

$12.99

28

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

29

COUNTER SHAFT - Call your local BRP dealership

501026300

Unavailable

30

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable
