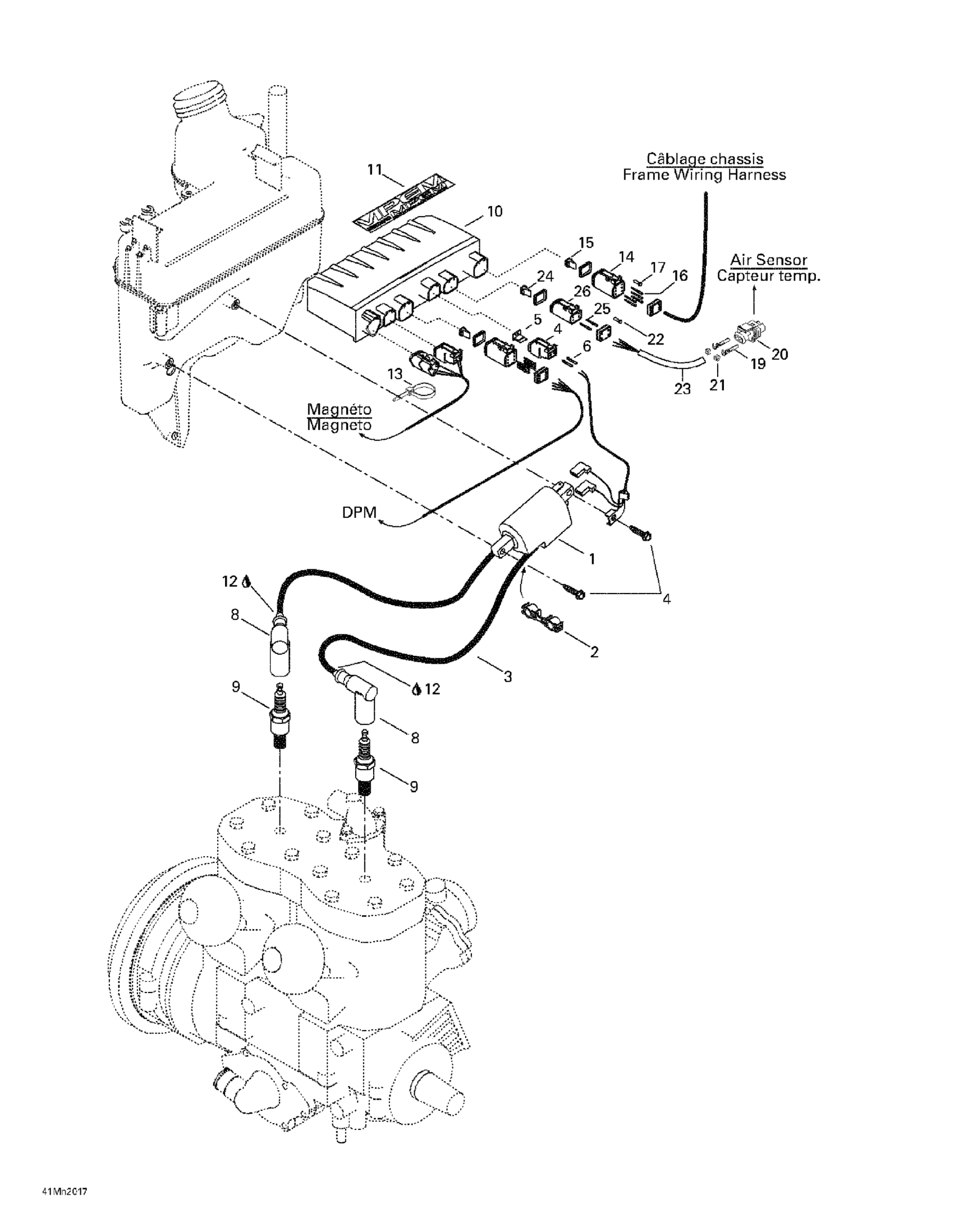

Ski-Doo Summit 700 SB, 2000 03- Ignition Diagram

#

Description
Price

1

IGNITION COIL - Call your local BRP dealership | Includes 3 - 8. Formula Deluxe 500.

512059039

Unavailable

2

Plastic Clip, Spark Plug Wire

410914600

$5.61

3

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

4

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

296000365

Unavailable

5

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

6

Female Terminal

278000632

$2.09

7

Female Connector, 2 Circuits

409207300

$9.85

8

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

9

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

10

Calibration Module | Summit 700 (CDN).

512059253

Unavailable

Calibration Module

512059245

Unavailable

11

Electrical Box Decal

516000245

Unavailable

12

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

13

Tie Wrap 94 mm | 4X4

293750001

$1.03

14

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

15

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

16

Female Terminal

278000632

$2.09

17

Sealing Cap

293000052

$3.19

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Female Terminal

278000998

$4.39

20

Male Housing, 2 Circuits

278001005

$19.49

21

Wire Seal

278000999

$3.19

22

PLUG - Call your local BRP dealership

515175303

Unavailable

23

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

24

Not Available As Spare Part - Friction Washer

Unavailable

25

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable
