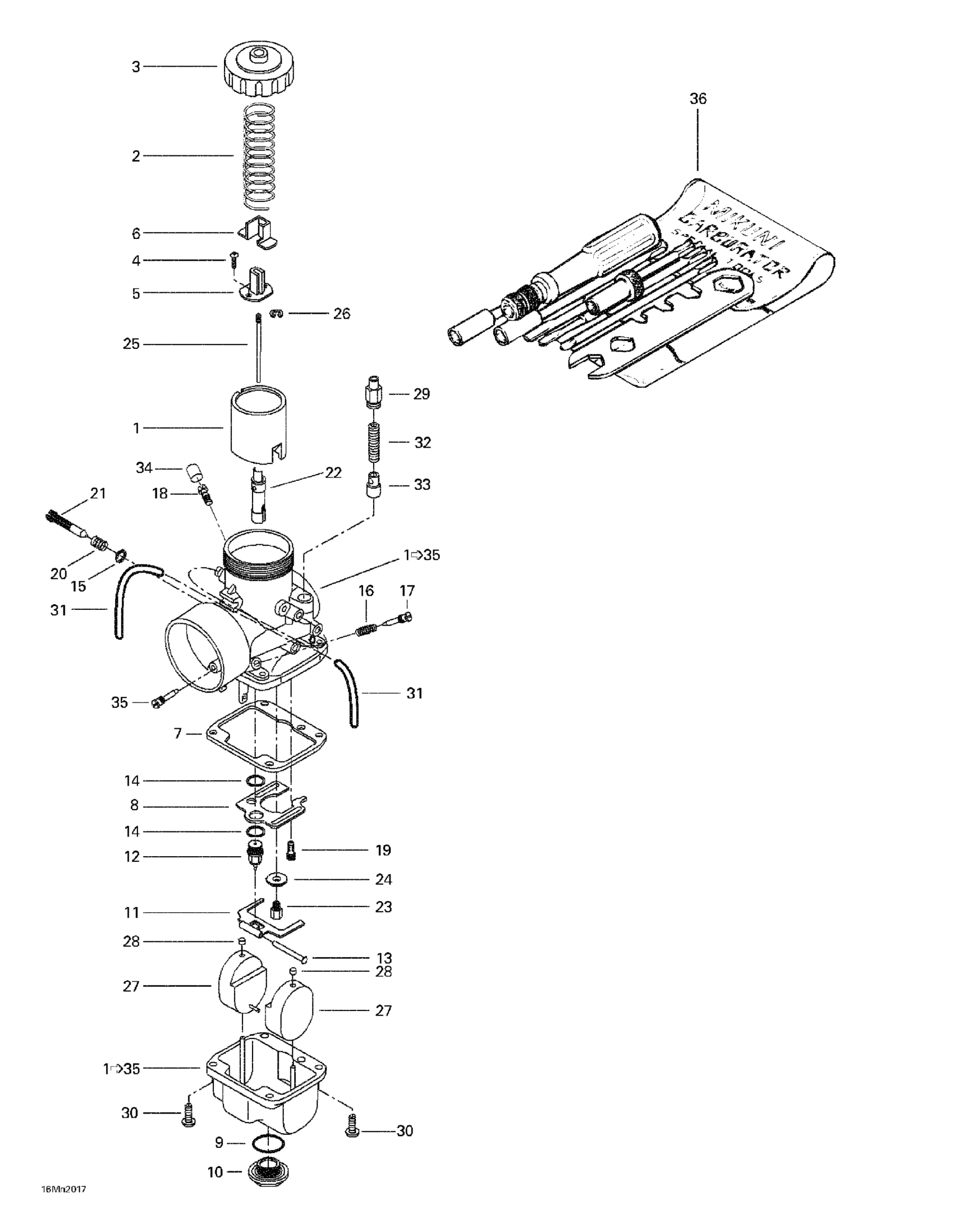

Ski-Doo Summit 700 SB, 2000 02- Carburetors Diagram
#
Description
Price
1
Carburetor VM40-133 | Summit 700 (CDN).
403138625
Unavailable
Carburetor VM40-132 | Summit 700 (US). Summit 700 SB. Summit 700 HM.
403138624
Unavailable
1
Piston Valve CA 2.5
404132300
Unavailable
2
Spring
404156500
Unavailable
3
Cover
404126800
Unavailable
5
CONNECTOR - Call your local BRP dealership
404160800
Unavailable
6
Cover
404128100
Unavailable
7
GASKET - Call your local BRP dealership
404104700
Unavailable
8
Baffle
404112700
Unavailable
9
Washer | Formula Deluxe 500.
404112800
Unavailable
10
Drain Plug Screw | Formula Deluxe 500.
404112900
Unavailable
11
Float Lever | Formula Deluxe 500.
404161823
Unavailable
15
Washer
270500018
Unavailable
16
SPRING - Call your local BRP dealership
404139800
Unavailable
17
AIR SCREW - Call your local BRP dealership
404149000
Unavailable
21
Throttle Adjustment Screw | MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.
404151900
Unavailable
22
Needle Jet 224-Z-7 | Formula Deluxe 700.
404161875
Unavailable
24
Washer
404116700
Unavailable
25
Needle J8-7DHY06 | Formula Deluxe 700.
404161840
Unavailable
27
FLOAT - Call your local BRP dealership
404105400
Unavailable
29
GUIDE HOLDER - Call your local BRP dealership | MAG Side
404161100
Unavailable
31
HOSE - Call your local BRP dealership
404161880
Unavailable
32
Spring | Formula Deluxe 500.
404161844
Unavailable
34
CAP - Call your local BRP dealership
404154900
Unavailable
35
Plug Screw
404131700
Unavailable
36
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
