Description

Price

1

Crankshaft Ass'y | Includes 1 - 8. Formula Z 700.

420888280

Unavailable

Crankshaft Ass'y | Includes 1 - 10. MX Z 700. MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.

861203800

Unavailable

2

Ball Bearing 6207 | With drive pin

420832575

$52.99

3

ADJUSTMENT WASHER - Call your local BRP dealership

420427502

Unavailable

4

Oil Seal

420931795

$17.63

5

Ball Bearing 6208 | With drive pin

420832600

$79.49

6

Oil Seal

420931280

$51.49

Oil Seal

420931910

$37.99

7

Washer

420926190

$11.63

8

Woodruff Key

420246015

$3.17

9

Oil Seal

420931280

$51.49

10

Piston Ass'y (1 Ring 77.93 mm) | Includes 10 - 11. Formula Z 700.

420888294

Unavailable

Piston Ass'y (1 Ring 77.88 mm) | Includes 10 - 11. Formula Deluxe 700.

420888293

Unavailable

11

Semi-Trapez Ring 78 mm | Formula Deluxe 700.

420815222

Unavailable

12

GUDGEON PIN - Call your local BRP dealership

420916371

Unavailable

13

Lock Washer, 22 mm

420945759

$1.90

14

Hex. Nut, M22 X 1.5

420842239

$17.53

15

PISTON CIRCLIP - Call your local BRP dealership | Formula Deluxe 600.

420845102

Unavailable

16

Ball Bearing 6207 | With drive pin

420832575

$52.99

17

OIL SEAL - Call your local BRP dealership | Summit 700 (CDN).

420931450

Unavailable

Oil Seal

420931455

$35.99

18

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

19

Crankshaft (PTO side) | Formula Deluxe 700.

420818706

Unavailable

20

Crankshaft (MAG side) | Formula Deluxe 700.

420818736

Unavailable

21

Rod Repair Kit (MAG side) | Formula Deluxe 700.

420888283

Unavailable

Rod Repair Kit (PTO side) | Formula Deluxe 700.

420888284

Unavailable

22

Loctite 243, 10 ml

293800060

$21.49

23

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

24

Sealant Loctite 648

219703000

$45.99

25

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

26

Petamo Grease, GHY133N, 400 g

420899271

$67.99

27

Needle Bearing

420832445

$27.49

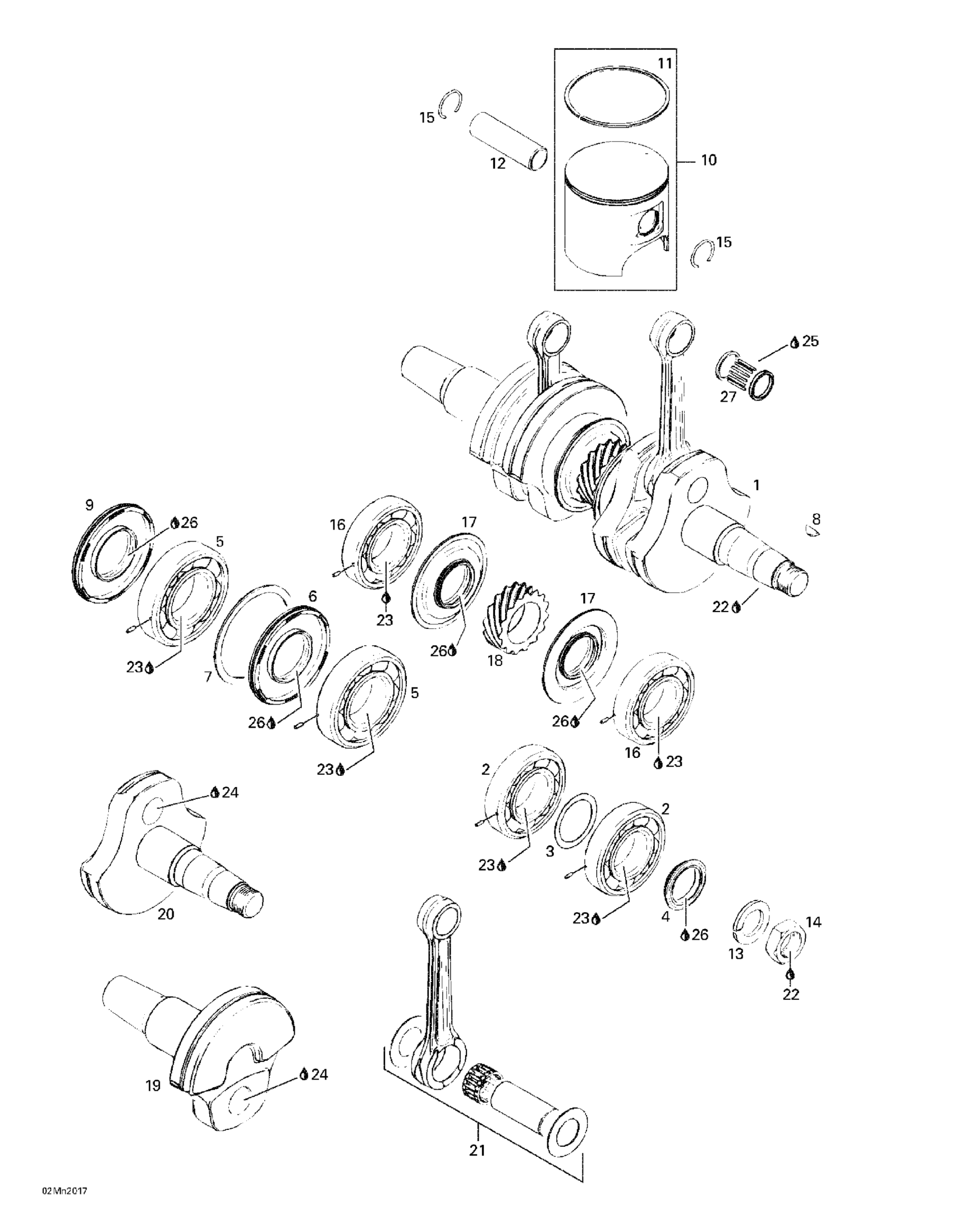

Ski-Doo Summit 700 SB, 2000 01- Crankshaft And Pistons Diagram

Crankshaft Ass'y | Includes 1 - 8. Formula Z 700.

Crankshaft Ass'y | Includes 1 - 10. MX Z 700. MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.

Ball Bearing 6207 | With drive pin

ADJUSTMENT WASHER - Call your local BRP dealership

Oil Seal

Ball Bearing 6208 | With drive pin

Oil Seal

Oil Seal

Washer

Woodruff Key

Oil Seal

Piston Ass'y (1 Ring 77.93 mm) | Includes 10 - 11. Formula Z 700.

Piston Ass'y (1 Ring 77.88 mm) | Includes 10 - 11. Formula Deluxe 700.

Semi-Trapez Ring 78 mm | Formula Deluxe 700.

GUDGEON PIN - Call your local BRP dealership

Lock Washer, 22 mm

Hex. Nut, M22 X 1.5

PISTON CIRCLIP - Call your local BRP dealership | Formula Deluxe 600.

Ball Bearing 6207 | With drive pin

OIL SEAL - Call your local BRP dealership | Summit 700 (CDN).

Oil Seal

CENTRAL GEAR - Call your local BRP dealership

Crankshaft (PTO side) | Formula Deluxe 700.

Crankshaft (MAG side) | Formula Deluxe 700.

Rod Repair Kit (MAG side) | Formula Deluxe 700.

Rod Repair Kit (PTO side) | Formula Deluxe 700.

Loctite 243, 10 ml

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

Sealant Loctite 648

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

Petamo Grease, GHY133N, 400 g

Needle Bearing
