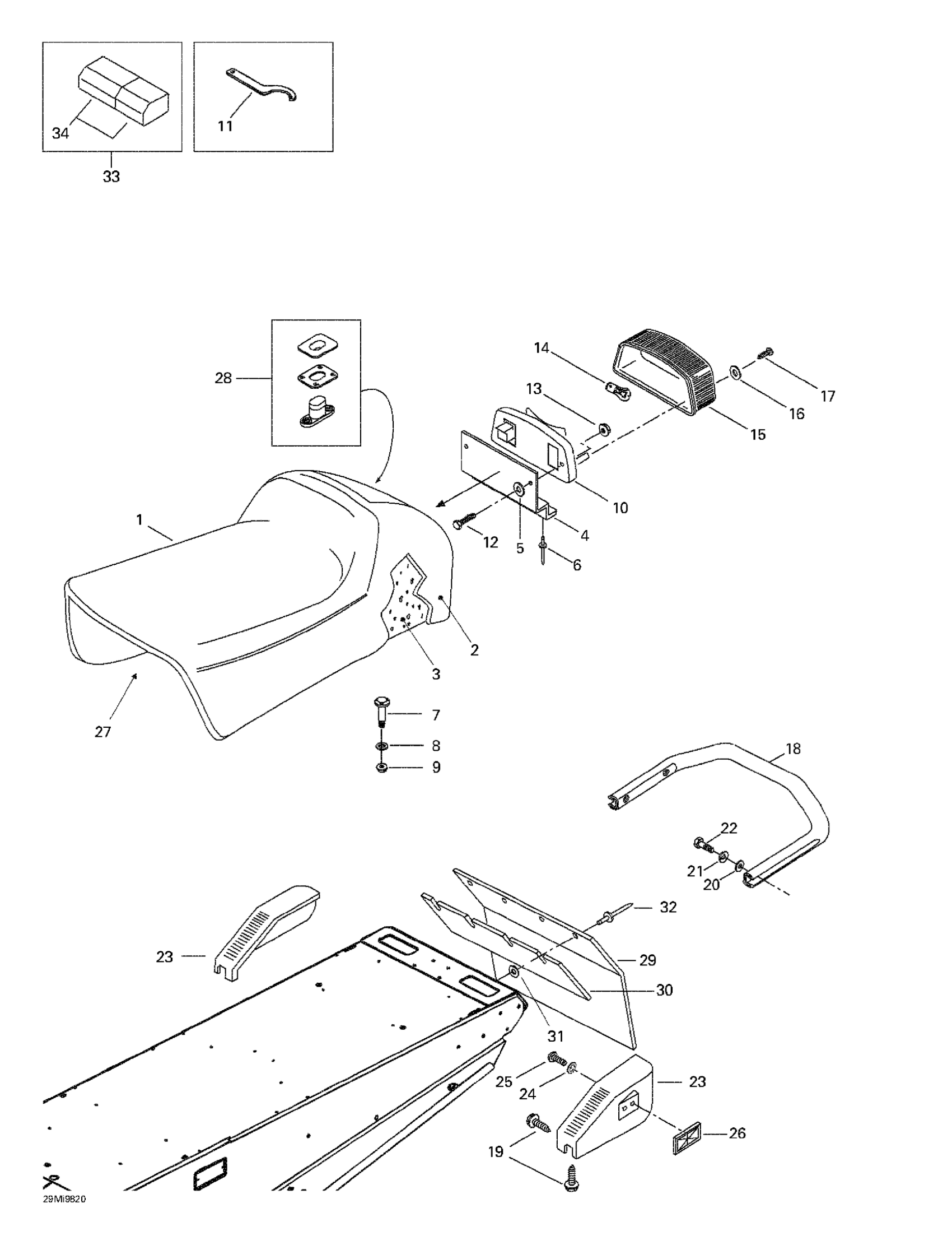

Ski-Doo Summit 670X, 1998 09- Seat And Accessories Diagram

Not Available As Spare Part - Friction Washer

Unavailable

Seat Base (1 pass.) (Not Shown)

572111100

Unavailable

Seat Cover

415111703

Unavailable

Foam Seat | Summit X670.

415111702

Unavailable

Case Holder | Summit X670.

415111700

Unavailable

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

Pop Rivet 3/16"

390906800

$0.93

«T» Bolt

732601221

Unavailable

Push Nut

732610072

$2.19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

Wrench-Adjuster | Formula III 600 LT. Formula III 700. Formula III 700 R.

529030700

Unavailable

Hex. Screw M5 X 30

207053044

$1.16

Hex. Flange Elastic Nut M5

233251414

$1.04

Bulb

520000758

$9.10

Lens

414513700

$28.99

Washer - Call your local BRP dealership

414516400

Unavailable

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

REAR BUMPER - Call your local BRP dealership

518318200

Unavailable

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

Flat Washer 8 mm

234081410

$0.83

Lock Washer 8 mm

234181401

$0.92

Hex. Screw M8 X 20

207182044

$0.74

RH Moulding Ass'y | Includes 25 - 28.

580641600

Unavailable

LH Moulding Ass'y

580641700

Unavailable

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

Seat Base | Summit X670.

572094100

Unavailable

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

Snow Gard (Yellow)

572101500

Unavailable

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

Flat Washer

517225900

$0.18

Rivet (Black) 3/16 | Formula 500 LC.

390909600

Unavailable

Tool Kit

529027900

Unavailable

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable
