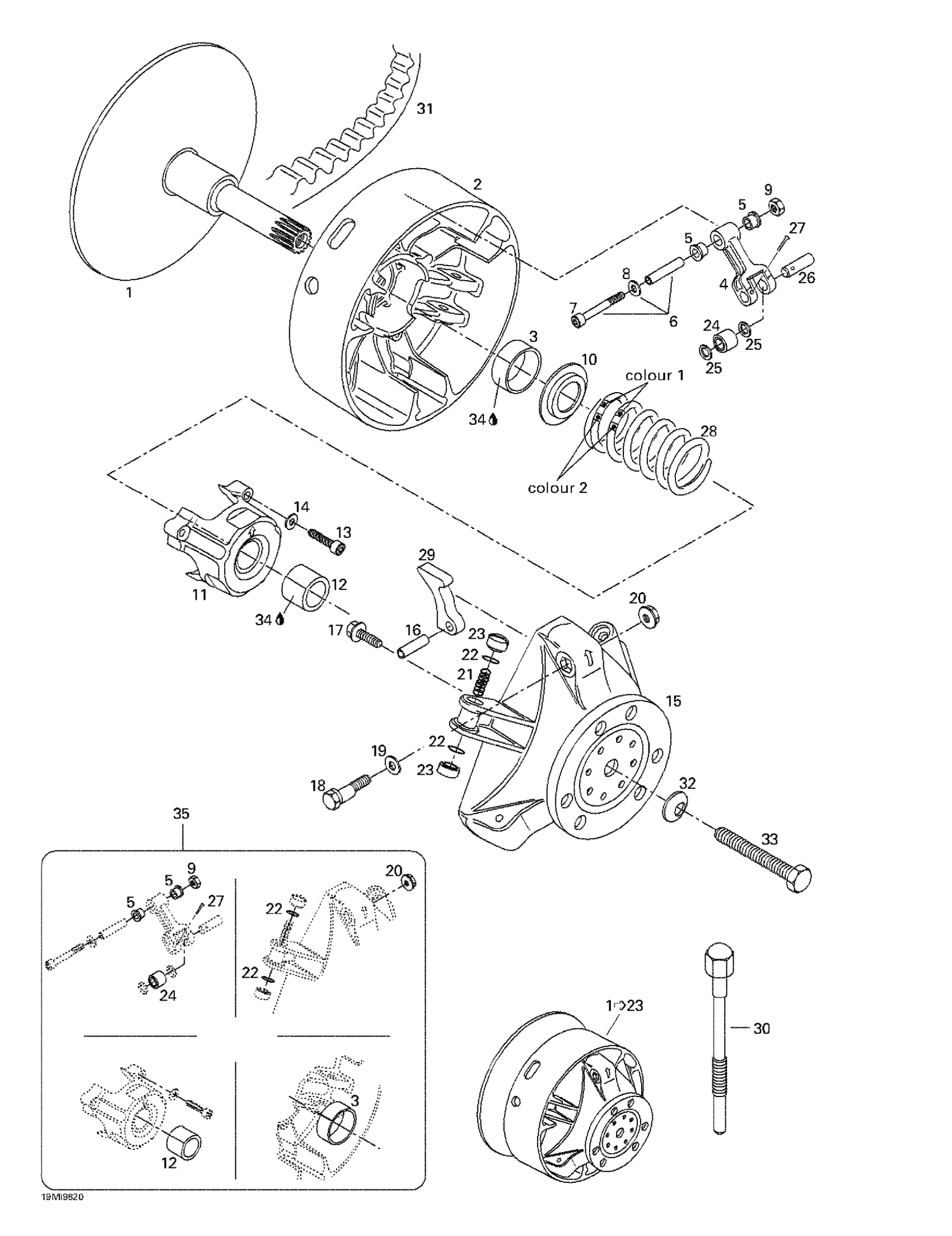

Ski-Doo Summit 670X, 1998 05- Drive Pulley Diagram

Drive Pulley Ass'y | Includes 1 - 23.

417222000

Unavailable

Fixed Flange

417222411

$539.99

SLINDING FLANGE - Call your local BRP dealership | Formula Z 583. Formula Z 670.

417003703

Unavailable

Bushing

417004201

$25.99

LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.

417003801

Unavailable

Bushing

417004305

$11.52

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

205065044

Unavailable

Flat Washer 6 mm

234061410

$1.36

Elastic Stop Nut M6

232561414

$0.55

Spring Seat

417005000

Unavailable

Spring Cover Ass'y | Includes 9 - 10.

417004000

Unavailable

Bushing

417004501

$24.99

Allen Screw M6 x 40

222964066

Unavailable

WASHER - Call your local BRP dealership

420245370

Unavailable

Gouvernor Cup Ass'y

417004700

Unavailable

Pin M8 X 24

732804009

Unavailable

Hex. Locking Screw M6 x 18 | Formula Deluxe 500.

732601249

Unavailable

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

Washer

417005600

$4.09

Hex. Flange Nut M6

233061414

$1.68

Spring

417005700

$4.76

O-Ring

732401030

$0.98

Slider Shoe This part replaces 420460045.

417223021

$5.90

Roller

417222947

$21.99

Stopper Washer

417004302

$15.90

Pin

417004309

$25.99

Cotter Pin

250400060

$2.00

Spring, Violet/yellow This part replaces 415128608.

415015300

$43.49

Ramp 287 | MX Z 440 F. MX Z 500 F.

417005287

Unavailable

Puller This part replaces 529022400.

529000064

$71.99

Drive Belt | Formula Deluxe 700.

417300067

$134.99

Spring Washer 14 mm

250200006

$6.99

Drive Pulley Bolt

417120000

$65.49

Loctite 609, 10 ml

413703100

$26.99

Clutch Repair Kit

417006100

$189.99
