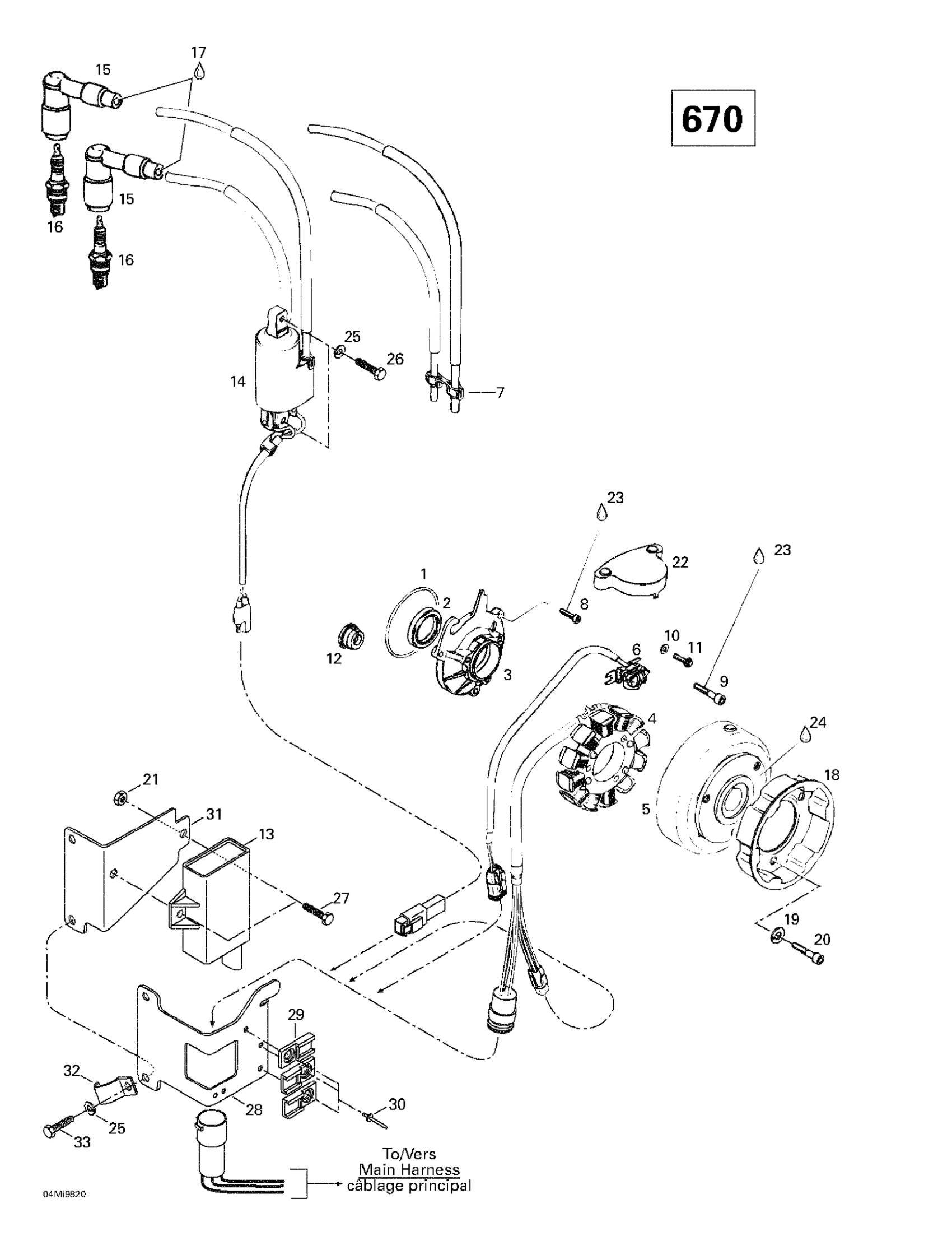

Ski-Doo Summit 670X, 1998 03- Magneto 12V 220W (670) Diagram

O-RING - Call your local BRP dealership

420850430

Unavailable

SEAL-OIL - Call your local BRP dealership

420930695

Unavailable

Armature Plate

420810265

Unavailable

Magneto Ass'y 12V 220W | Includes 4 - 6. Formula 500. Formula 500 Deluxe.

410922000

Unavailable

Stator Ass'y | Formula Deluxe 583.

410922100

Unavailable

Magneto Flywheel | Formula 500. Formula 500 Deluxe.

410922200

Unavailable

Pick Up Ass'y | Formula Deluxe 583.

410921100

Unavailable

Plastic Clip, Spark Plug Wire

410914600

$5.61

SCREW-ALLEN M5X20 DIN.6912 - Call your local BRP dealership

420941540

Unavailable

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

WASHER - Call your local BRP dealership

420827800

Unavailable

Allen Screw M5 x 16

420840514

$1.90

Cable Grommet

420860965

$14.28

Ignition Module

415111800

Unavailable

IGNITION COIL - Call your local BRP dealership | Includes 14 - 19.

415085400

Unavailable

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

Starting Pulley

420852590

$29.49

Washer-Lock Din.128

420945832

$1.15

Socket Head Screw M8 X 12

420841520

$1.69

Elastic Stop Nut M6

232561414

$0.55

Pick-Up Cover

420810700

Unavailable

Loctite 243, 10 ml

293800060

$21.49

Sealant Loctite 648

219703000

$45.99

Lock Washer M6, Black

234161471

$0.53

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

Hex. Screw M6 X 16

207161644

$0.74

Support Cable | MX Z 670 HO.

517299600

Unavailable

Clip

270000141

$11.49

Pop Rivet 3/16"

390402400

$0.35

Ignition Module Support | MX Z 670 HO.

517299700

Unavailable

CLIP - Call your local BRP dealership

415018200

Unavailable

HEX. SCREW M6 X 12 - Call your local BRP dealership

207161244

Unavailable
