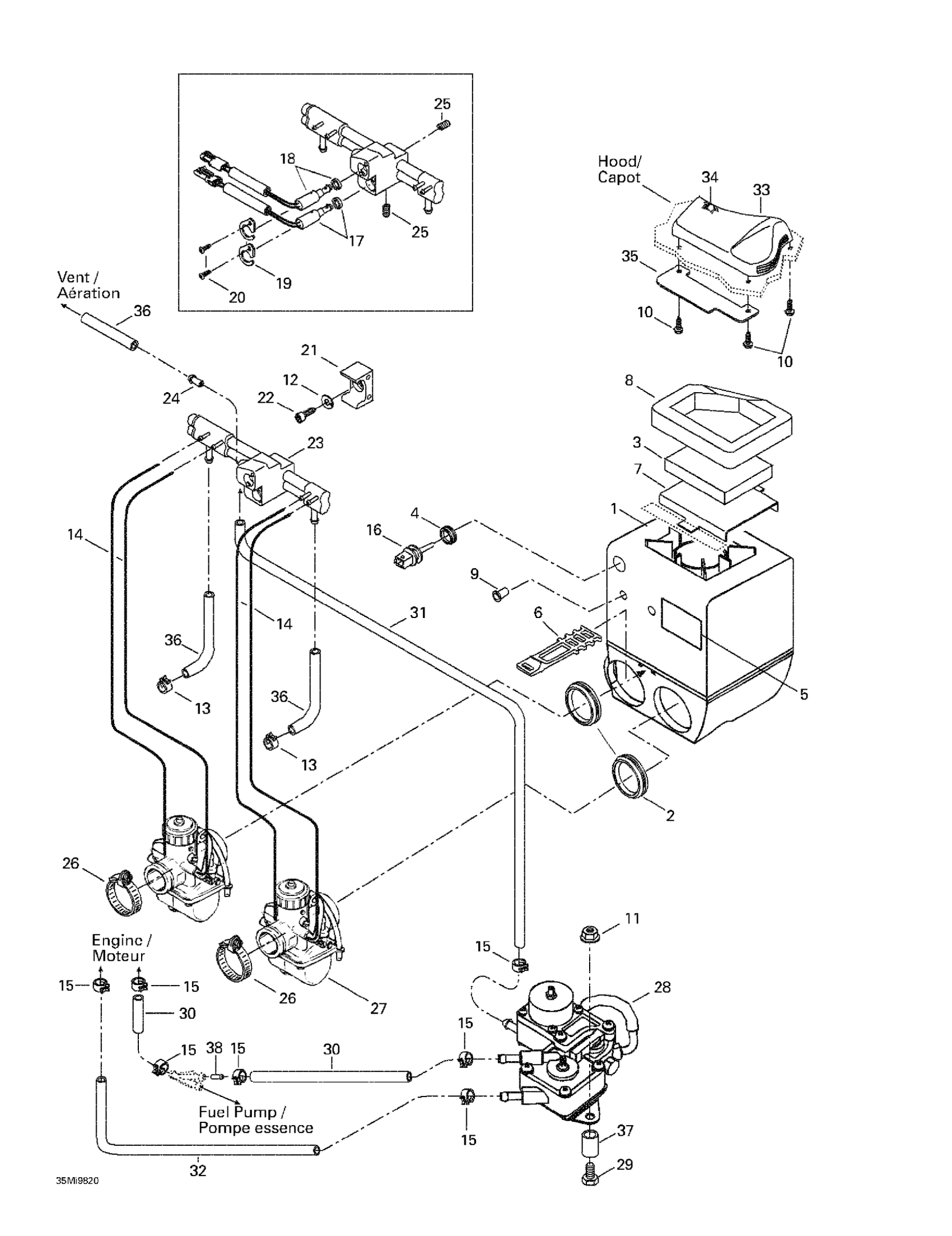

Ski-Doo Summit 670X, 1998 02- Air Intake System Diagram
#
Description
Price
1
Air Silencer Ass'y | Includes 1 - 9.
580667700
Unavailable
2
Intake Adaptor VM 40 | Formula Deluxe 670.
570049000
Unavailable
4
GROMMET - Call your local BRP dealership
570065500
Unavailable
5
Warning Decal
414161500
Unavailable
6
LATCH - Call your local BRP dealership
570069700
Unavailable
7
Grill Intake
517283900
Unavailable
8
Lower Foam | Summit X670.
415125500
Unavailable
9
JACK NUT M6 - Call your local BRP dealership
732610057
Unavailable
10
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
14
Hose | MX-Z 600.
404161814
Unavailable
16
AIR TEMPERATURE SENSOR - Call your local BRP dealership
270600000
Unavailable
17
Soleno‹d Valve (Female) | Grand Touring SE.
415061400
Unavailable
18
Soleno‹d Valve (Male) | Grand Touring SE.
415061500
Unavailable
19
SOLENOID LOCK - Call your local BRP dealership
415061600
Unavailable
20
SCREW - Call your local BRP dealership
404159300
Unavailable
21
Support | Grand Touring SE.
572096100
Unavailable
22
Machined Screw M6 x 16 | Grand Touring SE.
222861613
Unavailable
23
Pressure Manifold | Includes 23 - 25.
415103300
Unavailable
24
Air Jet | Grand Touring SE.
404159700
Unavailable
26
Collar | Skandic 600.
414532800
Unavailable
27
Carburetor VM 44-34 (PTO)
403137600
Unavailable
Carburetor VM 44-35 (MAG)
403137700
Unavailable
28
Air Pump | MX Z 670 HO.
415109000
Unavailable
31
Hose 4.5 mm
270000306
Unavailable
33
INTAKE COVER - Call your local BRP dealership
572077900
Unavailable
35
Deflector | MX Z 670 HO.
517292800
Unavailable
37
Spacer | MX Z 670 HO.
512058934
Unavailable
38
Main Jet 150
270500397
Unavailable
