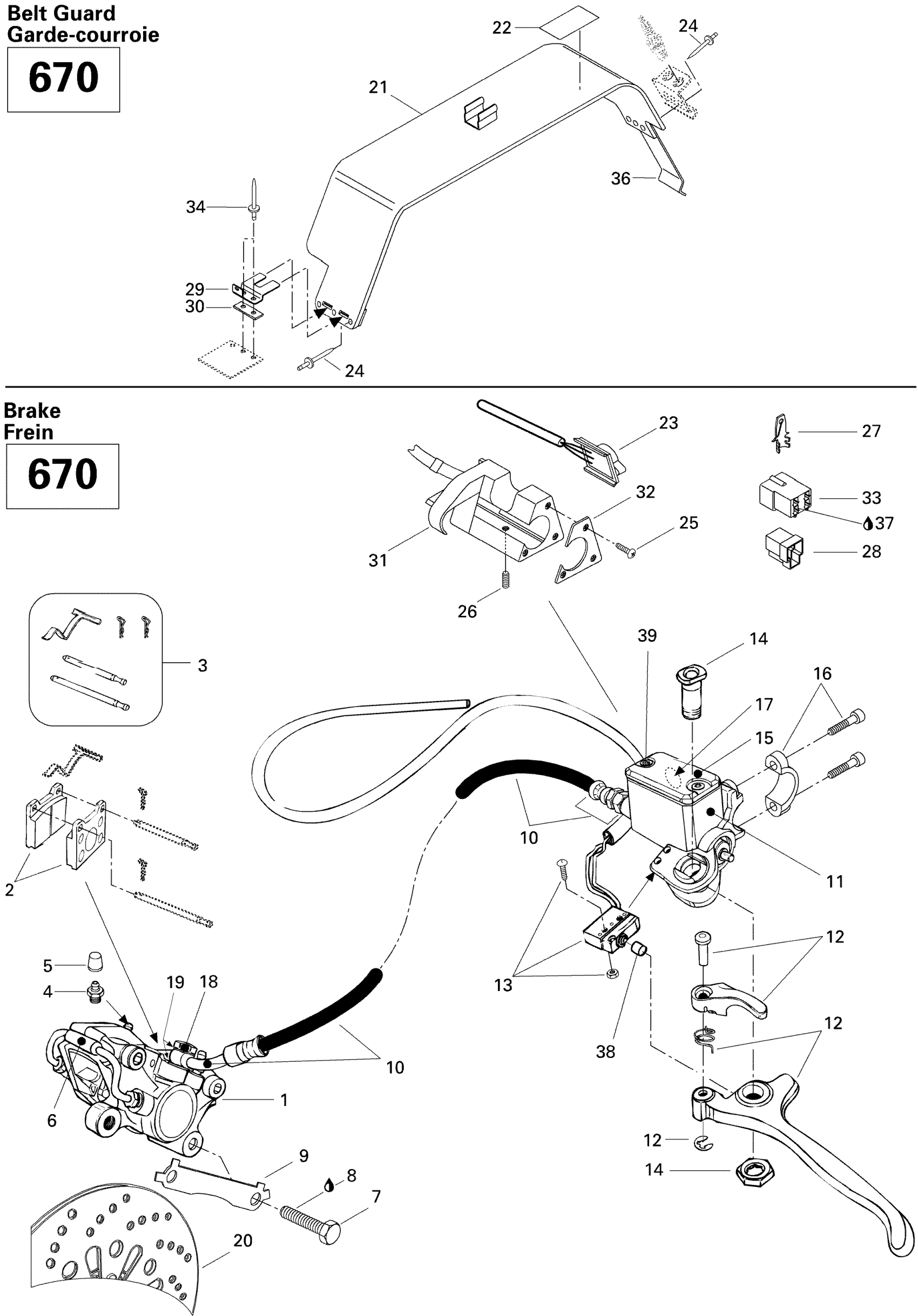

Ski-Doo Summit 670, 1996 06- Brake 670 Diagram
#
Description
Price
1
Caliper | Includes 10 - 15.
414920000
Unavailable
3
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership
414990700
Unavailable
4
BLEEDER SCREW - Call your local BRP dealership
414989800
Unavailable
5
BOOT-QTS 20 - Call your local BRP dealership
414989700
Unavailable
6
RIGID TUBING - Call your local BRP dealership
414989900
Unavailable
9
Locking Tab
507029900
Unavailable
10
Hose
414972700
Unavailable
11
Master Cylinder (Incl. It. 35 and 36) | Includes 11 to 17
414920700
Unavailable
12
Lever Ass’y
414990100
Unavailable
13
Microswitch Ass’y
414990500
Unavailable
14
Pin Lever
414990200
Unavailable
15
Cap
414990300
Unavailable
16
Clamp
414990400
Unavailable
17
WINDOW - Call your local BRP dealership
414990600
Unavailable
20
Brake Disk Ass’y
507029800
Unavailable
21
Belt Guard Ass’y | Includes 19 to 20
517284102
Unavailable
22
Warning Decal
414108700
Unavailable
23
Dimmer Switch
414612600
Unavailable
25
Screw
414473200
Unavailable
27
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
28
FEMALE HOUSING - Call your local BRP dealership
409204200
Unavailable
29
Pulley Guard Bracket
518314200
Unavailable
30
REINFORCEMENT - Call your local BRP dealership
518207500
Unavailable
31
Housing-Dimmer
414940400
Unavailable
32
Housing-Plate
414944100
Unavailable
33
MALE HOUSING - Call your local BRP dealership
409209300
Unavailable
34
Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.
390403600
Unavailable
36
Tool Box Spring
414941800
Unavailable
37
Dielectric Grease, 3 Oz
414701700
Unavailable
38
Push-Pin
415006500
Unavailable
39
SCREW M4 X 12 - Call your local BRP dealership
216141260
Unavailable
