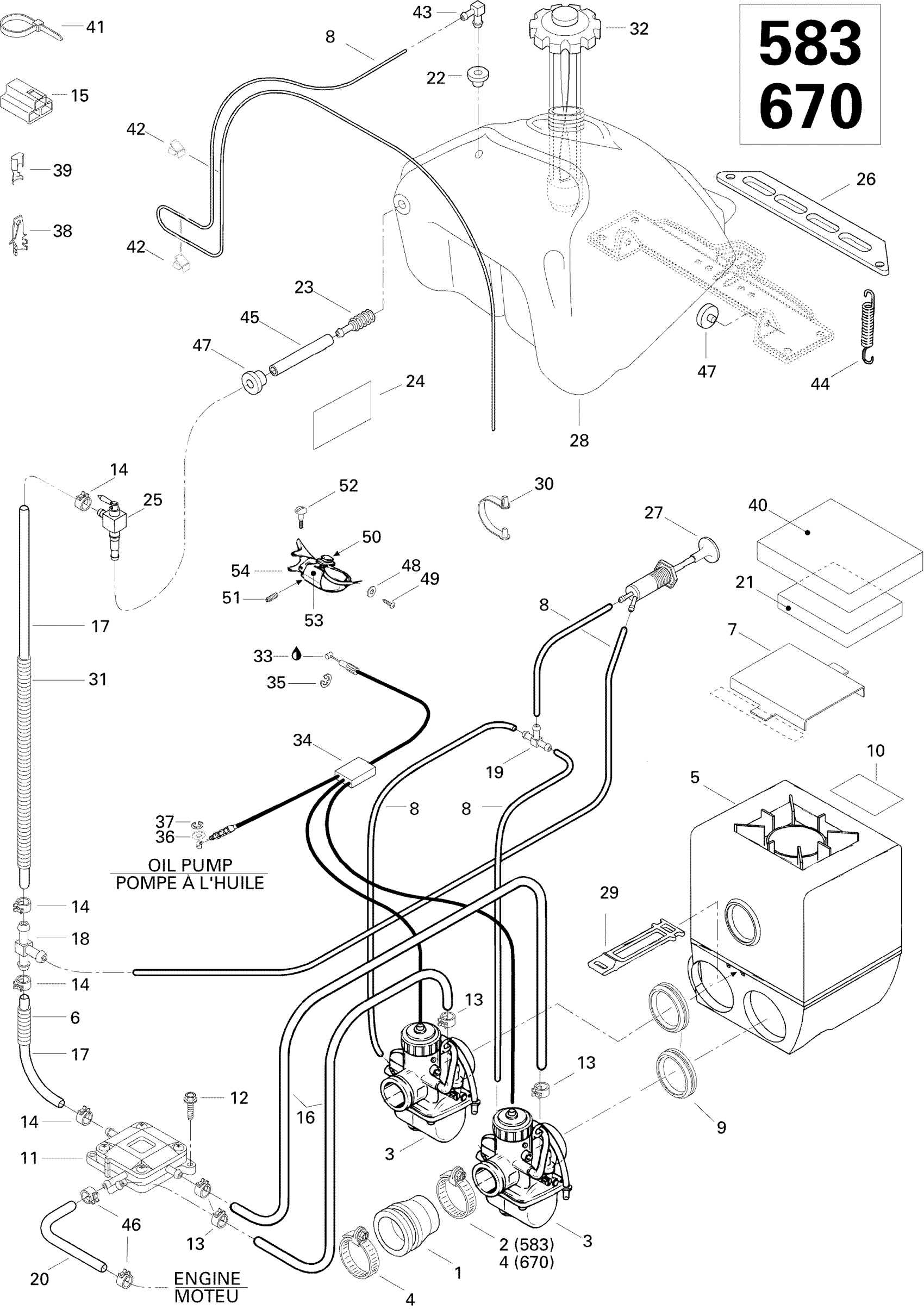

Ski-Doo Summit 670, 1996 02- Fuel System 670 Diagram
#
Description
Price
1
Adaptor Caburetor | Formula Deluxe 670.
570048400
Unavailable
2
Not Available As Spare Parts
XXX
Unavailable
3
VM 40-81 Carburetor (PTO) | Includes 1 to 31
403124600
Unavailable
3
VM 40-82 Carburetor (MAG) | Includes 1 to 31
403124700
Unavailable
4
Collar | Skandic 600.
414532800
Unavailable
5
Air Silencer Ass'y | Summit 670.
580638604
Unavailable
6
Tubing
414942900
Unavailable
7
Grill Intake
517283900
Unavailable
8
Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.
414296900
Unavailable
9
Intake Adaptor VM 40 | Formula Deluxe 670.
570049000
Unavailable
10
Warning Decal
414161500
Unavailable
11
Fuel Pump Ass'y | MX Z 670 HO.
403901200
Unavailable
15
Female Terminal Housing (3 circuits)
409008500
Unavailable
17
FUEL LINE 10000MM LONG - Call your local BRP dealership
219704411
Unavailable
24
Security Label | MX Z 670 HO.
414931500
Unavailable
25
Shutoff Valve
415018400
Unavailable
26
Fuel Tank Bracket
517249200
Unavailable
28
Fuel Tank
571009300
Unavailable
29
LATCH - Call your local BRP dealership
570069700
Unavailable
30
CABLE CLIP - Call your local BRP dealership
414379300
Unavailable
33
Dielectric Grease, 150 g This part replaces 413701700.
293550004
Unavailable
34
Throttle Cable and Housing (40 mm) | Formula Deluxe 670.
414966201
Unavailable
38
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
39
Female Terminal PACKARD
561503200
Unavailable
40
Exterior Foam | Formula 500. Formula 500 Deluxe.
415012700
Unavailable
44
SPRING - Call your local BRP dealership
517182100
Unavailable
45
Hose
414976300
Unavailable
48
WASHER-FLAT - Call your local BRP dealership
391300700
Unavailable
49
Screw
414473200
Unavailable
53
Throttle Handle Housing | Skandic 600.
572028600
Unavailable
54
Heat Throttle Handle Ass'y (40 mm) | Formula Deluxe 670.
572057000
Unavailable
