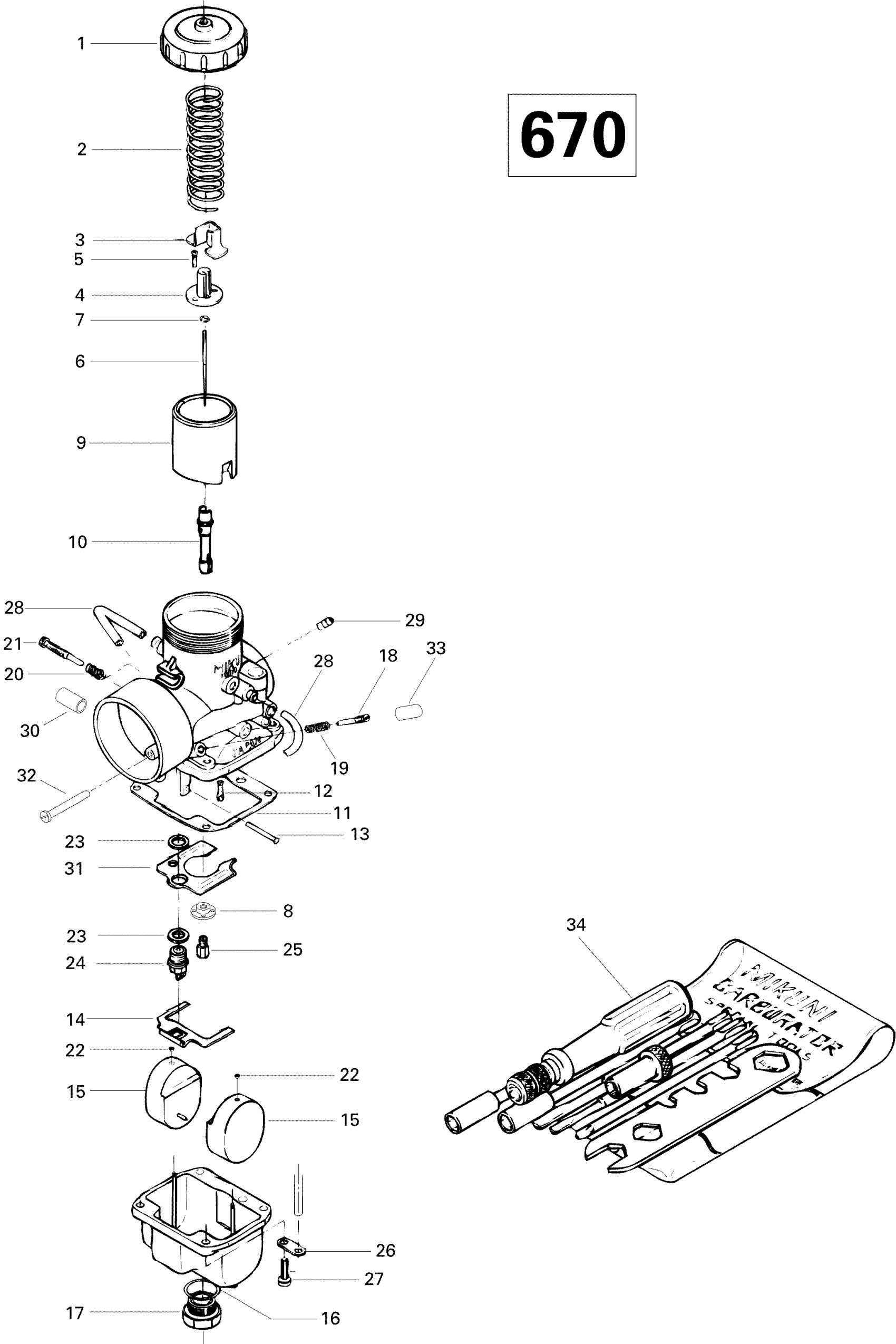

Ski-Doo Summit 670, 1996 02- Carburetor 670 Diagram
#
Description
Price
1
VM 40-81 Carburetor (PTO) | Includes 1 to 31
403124600
Unavailable
1
VM 40-82 Carburetor (MAG) | Includes 1 to 31
403124700
Unavailable
1
Cover
404126800
Unavailable
2
Spring
404156500
Unavailable
3
Cover
404128100
Unavailable
4
CONNECTOR - Call your local BRP dealership
404160800
Unavailable
6
Jet Needle J8 7DPI1-3 | Summit 670.
404157700
Unavailable
8
Washer
404116700
Unavailable
9
Piston Valve CA 2.5
404132300
Unavailable
10
Needle Jet 224-AA-2 | Formula Z 583.
404148300
Unavailable
11
GASKET - Call your local BRP dealership
404104700
Unavailable
12
Pilot Jet PJ 75 | Summit 500.
404148100
Unavailable
14
Float Arm
404153300
Unavailable
15
FLOAT - Call your local BRP dealership
404105400
Unavailable
16
Washer | Formula Deluxe 500.
404112800
Unavailable
17
Drain Plug Screw | Formula Deluxe 500.
404112900
Unavailable
18
AIR SCREW - Call your local BRP dealership
404149000
Unavailable
19
SPRING - Call your local BRP dealership
404139800
Unavailable
21
Throttle Adjustment Screw | MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.
404151900
Unavailable
26
PLATE - Call your local BRP dealership
404103000
Unavailable
28
Hose | Grand Touring SE.
404109800
Unavailable
29
NIPPLE - Call your local BRP dealership
404127600
Unavailable
31
Baffle
404112700
Unavailable
32
Plug Screw
404131700
Unavailable
33
Cap
404155200
Unavailable
34
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
