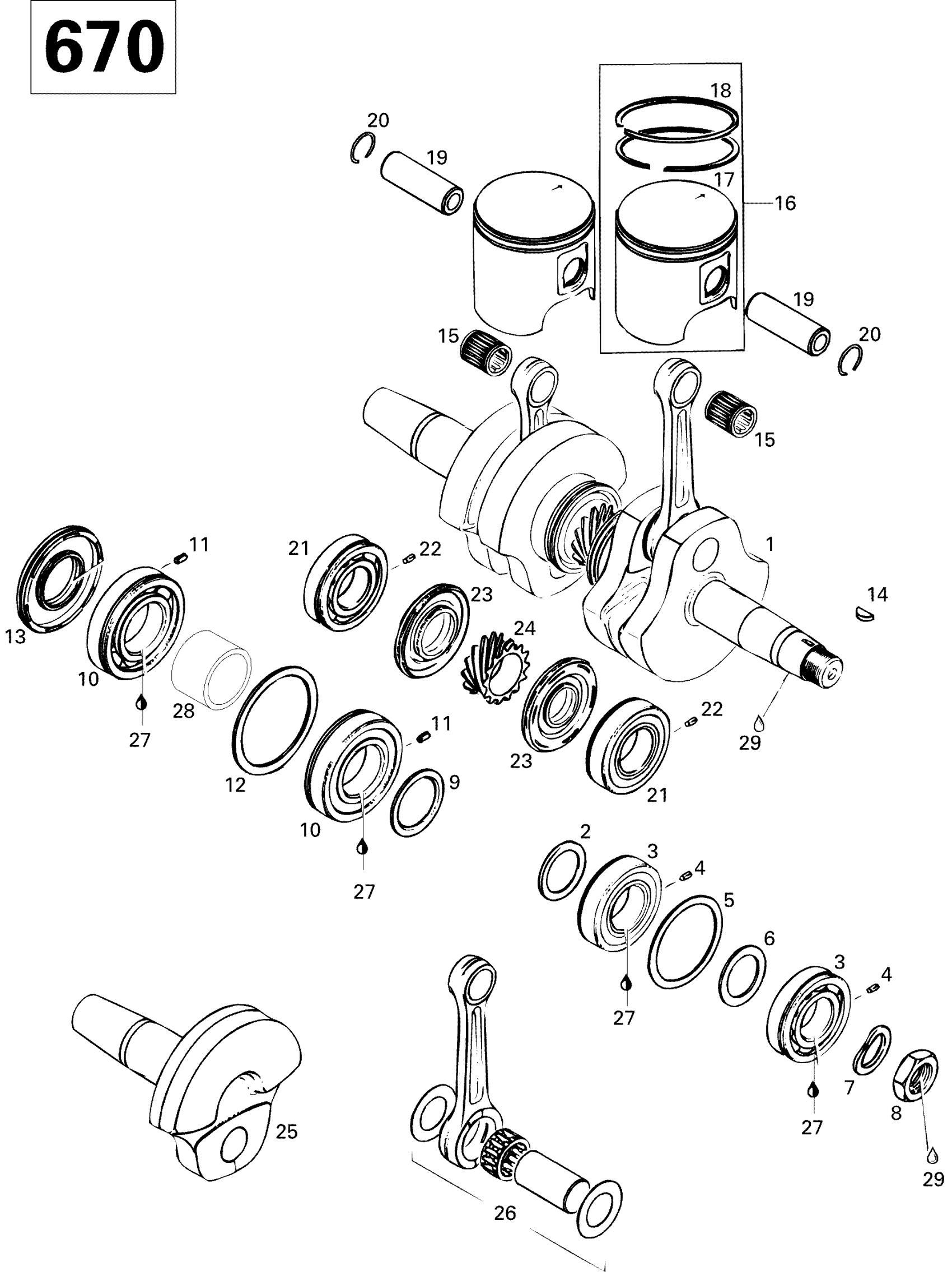

Ski-Doo Summit 670, 1996 01- Crankshaft And Pistons 670 Diagram
#
Description
Price
1
Crankshaft Ass'y
420887037
Unavailable
2
DISTANCE RING - Call your local BRP dealership
420827445
Unavailable
3
BALL BEARING - Call your local BRP dealership | Includes 3 - 4.
420832538
Unavailable
4
Dowel Pin
420929972
Unavailable
5
ADJUSTMENT WASHER - Call your local BRP dealership
420427684
Unavailable
6
RETAINING DISK - Call your local BRP dealership
420827050
Unavailable
9
DISTANCE RING - Call your local BRP dealership
420827760
Unavailable
11
Dowel Pin
420929972
Unavailable
15
Needle Cage
420832040
Unavailable
16
Piston Ass'y (2 rings 77.90 mm) | Formula Deluxe 670.
420887610
Unavailable
16
Piston Ass‘y. (Ring 78.25 mm) | Includes 16 to 18
420886536
Unavailable
17
Rectangular Ring 78.0 mm | Formula Deluxe 670.
420815025
Unavailable
17
Oversize Rectangular Ring 78.25 mm | Formula Deluxe 670.
420815021
Unavailable
18
SEMI-TRAPEZ RING 78.00 MM - Call your local BRP dealership | Formula Deluxe 670.
420815090
Unavailable
18
Semi-Trapez Ring 78.25 mm
420815031
Unavailable
19
GUDGEON PIN - Call your local BRP dealership
420916371
Unavailable
20
CIRCLIP - Call your local BRP dealership
420845100
Unavailable
21
BALL BEARING - Call your local BRP dealership | Includes 3 - 4.
420832538
Unavailable
22
Dowel Pin
420929972
Unavailable
24
Central Gear 14 Teeth
420935748
Unavailable
25
Half Crankshaft (P.T.O.)
420818702
Unavailable
26
Crankshaft Rod Repair Kit (P.T.O. Side)
420886428
Unavailable
26
Crankshaft Rod Repair Kit (MAG Side)
420886429
Unavailable
27
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
28
Distance Sleeve | Formula Deluxe 500 LC. Formula Deluxe 670.
420847684
Unavailable
