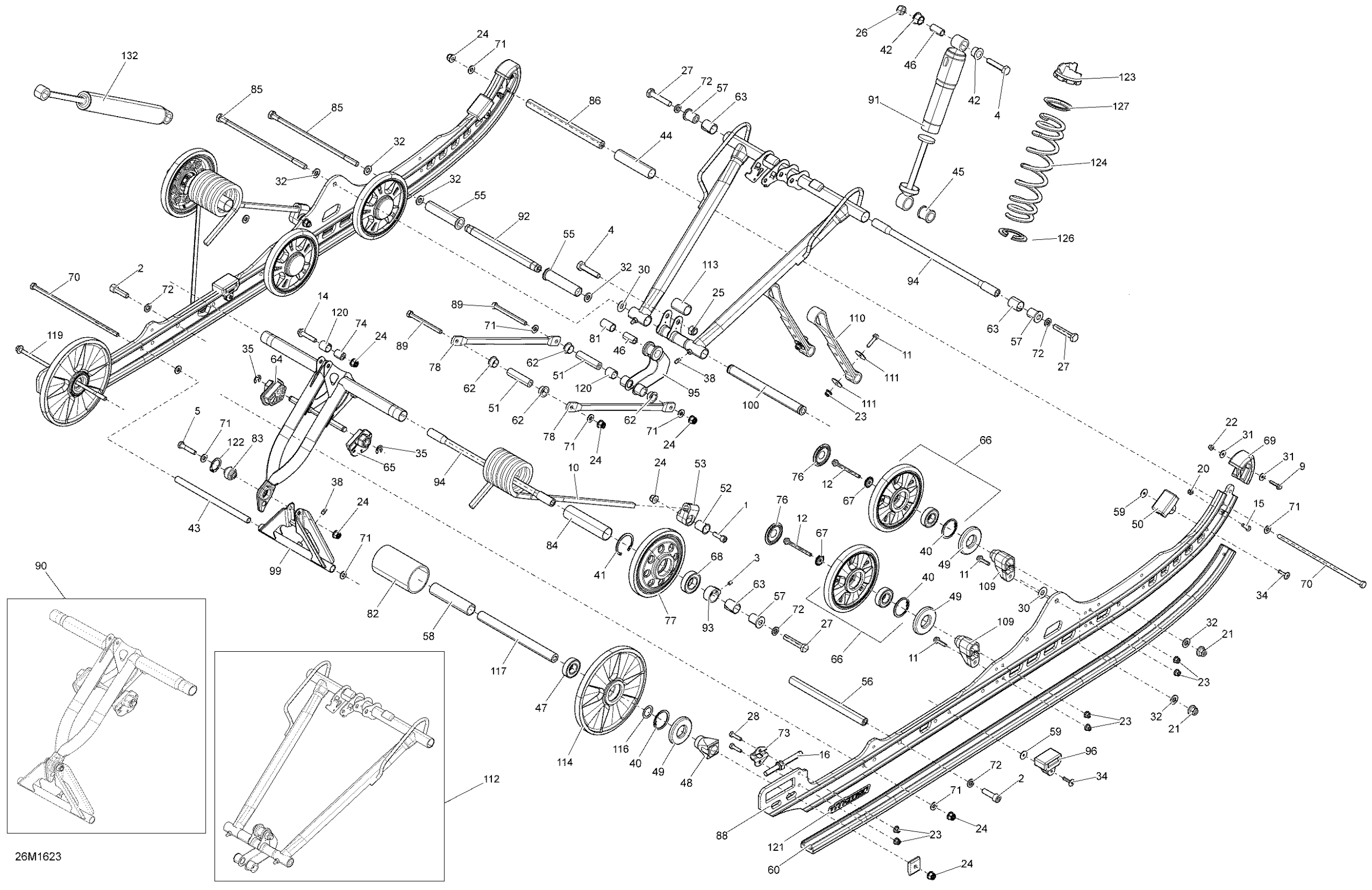

Ski-Doo SUMMIT 600HO E-TEC 000CCGA00 000CCGB00 000CCGC00 000CCGD00 000CCGE00 000CCGF00 000CXGA00 000CXGB00 000CXGC00 000CXGD00 000CXGE00 000CXGF00 08- Rear Suspension - 600HO ETEC Diagram

Socket Screw M8 X 25

205082554

$2.11

Socket Head Screw M10 X 35

205503554

$7.51

Socket Set Screw M6 X 8

206260844

$1.48

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

Hex. Screw M8 X 1.25 X 40

207084056

$3.17

Black, LH Spring Square

503193003

$90.99

Black, RH Spring Square

503193002

$90.99

Hex. Flange Screw M6 X 25

207662556

$4.44

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

Hex. Flange Screw M6 X 70

207667056

$4.44

Hex. Flange Screw M8 X 40

207684044

$1.48

Phillips Screw M6 X 25

208562531

$2.11

Hex Screw M10 x 100

230100054

$6.45

Elastic Stop Nut M6

232561414

$0.55

Flange Elastic Nut M10

233201466

$3.17

Hex. Flange Elastic Nut M5

233251414

$1.04

Hex. Flange Elastic Nut M6

233261466

$2.00

Elastic Flange Nut M8

233281466

$1.01

Elastic Locking Nut M10 X 1.5

233601416

$1.69

Elastic Locking Nut M10

233601466

$2.11

Hex. Screw S.Grip M10 X 55

250000605

$8.11

Hex Screw M6 X 25

250000619

$1.01

Washer

250200032

$5.08

Washer

250200140

$1.01

Flat Washer

250200143

$3.17

Pop Rivet 3/16"

293150013

$1.37

E-Circlip

293370013

$0.65

Grease Fitting

408200700

$3.49

Tie-Rap 180 mm

414115200

$0.11

Retaining Ring

415129371

$12.01

Retaining Ring

415129780

$15.79

Urethane Bushing

503189117

$8.19

Pivot Arm Axle

503189156

$21.99

Spacer

503189265

$4.99

Bushing

503189271

$13.99

Bushing | Includes 240d to 240d1

503189282

$4.34

Ball Bearing | Package-STD

503190396

$14.30

Rear Wheel Spacer

503190428

$8.14

Labyrinth Seal

503190434

$6.09

Rubber Stopper

503190576

$12.99

Axle Bar (Long)

503190643

$17.39

Spring Support Kit

861805547

$10.49

Spring Support Kit

861805547

$10.49

Center Bushing

503191259

$11.49

Axle Strap

503191260

$30.99

Bushing

503191262

$15.79

Rear Spacer

503191263

$18.49

Washer

503191273

$1.35

Black, Slider 154

503191198

$34.99

Black, Slider 146

503191499

$34.99

Swivel Bushing

503191555

$7.83

Extended Bushing

503191556

$7.83

LH Cam Adjuster

503191565

$16.49

RH Cam Adjuster

503191566

$16.49

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$48.49

Wheel Cup M6

503191820

$4.99

Ball Bearing

503193548

$17.99

Runner Protector

503192299

$24.99

Bolt M8 X 248mm

503192440

$30.49

Washer

503192494

$3.17

Washer

503192496

$0.77

Tensioner

503192583

$8.29

Axle Shock Absorber

503196509

$12.58

Black, Wheel Cap

503192771

$2.39

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$48.49

Acceleration Link Rod

503192900

$28.49

Bushing

503193037

$16.18

Bushing

503193097

$18.49

SPHERICAL BEARING - Call your local BRP dealership

503193148

$68.99

Bushing

503193218

$12.58

Bolt M10 X 251MM

503193227

$17.29

STRAP AXLE - Call your local BRP dealership

503193332

Unavailable

Black Runner 146" | Includes 10,001 to 10,002

503193827

$309.99

Black Runner 154" | Includes 10,001 to 10,002

503193828

$309.99

RAIL_SUSPENSION 146 B-229 - Call your local BRP dealership | Package-SP

503193936

Unavailable

RAIL_SUSPENSION 154 B-229 - Call your local BRP dealership | Package-SP

503193938

Unavailable

Screw M8 X 90

503193372

$4.44

Rear Arm Ass'y | Included 3000 to 3000q

503194296

$444.99

Central Shock

503193207

$248.99

Pivot Axle

503193435

$39.99

Retaining Ring

503193439

$16.49

Upper Shaft

503193441

$38.99

Rocker

503193464

$83.99

Rubber Stopper

503193504

$14.99

Pivot Arm

503193699

$129.99

Lower Axle

503193702

$65.99

Casted Support

503193894

$16.49

Stopper Strap

503194679

$29.49

Washer | Not Shown

503193995

$4.54

Front Arm Ass'y | Includes 2000 to 2000n

503195197

$248.99

SPACER - Call your local BRP dealership

503194029

Unavailable

Wheel 200 | Includes 670 to 670b

503194055

$51.99

Hook Kit This part replaces 503194143.

861805521

$4.76

WASHER - Call your local BRP dealership

503194177

Unavailable

Rear Axle

503194200

$70.99

Bolt

503194265

$27.49

Leg Cushion

505072663

$9.23

Runner Decal

516006381

$14.99

INNER CIRCLIP - Call your local BRP dealership

293370090

Unavailable

Adjustment Cam

505073625

$12.99

Black, Spring

503191882

$62.49

Spring Stopper

503194270

$19.99

Spring Guide

503191872

$2.29

Rear Shock

503193189

$248.99
