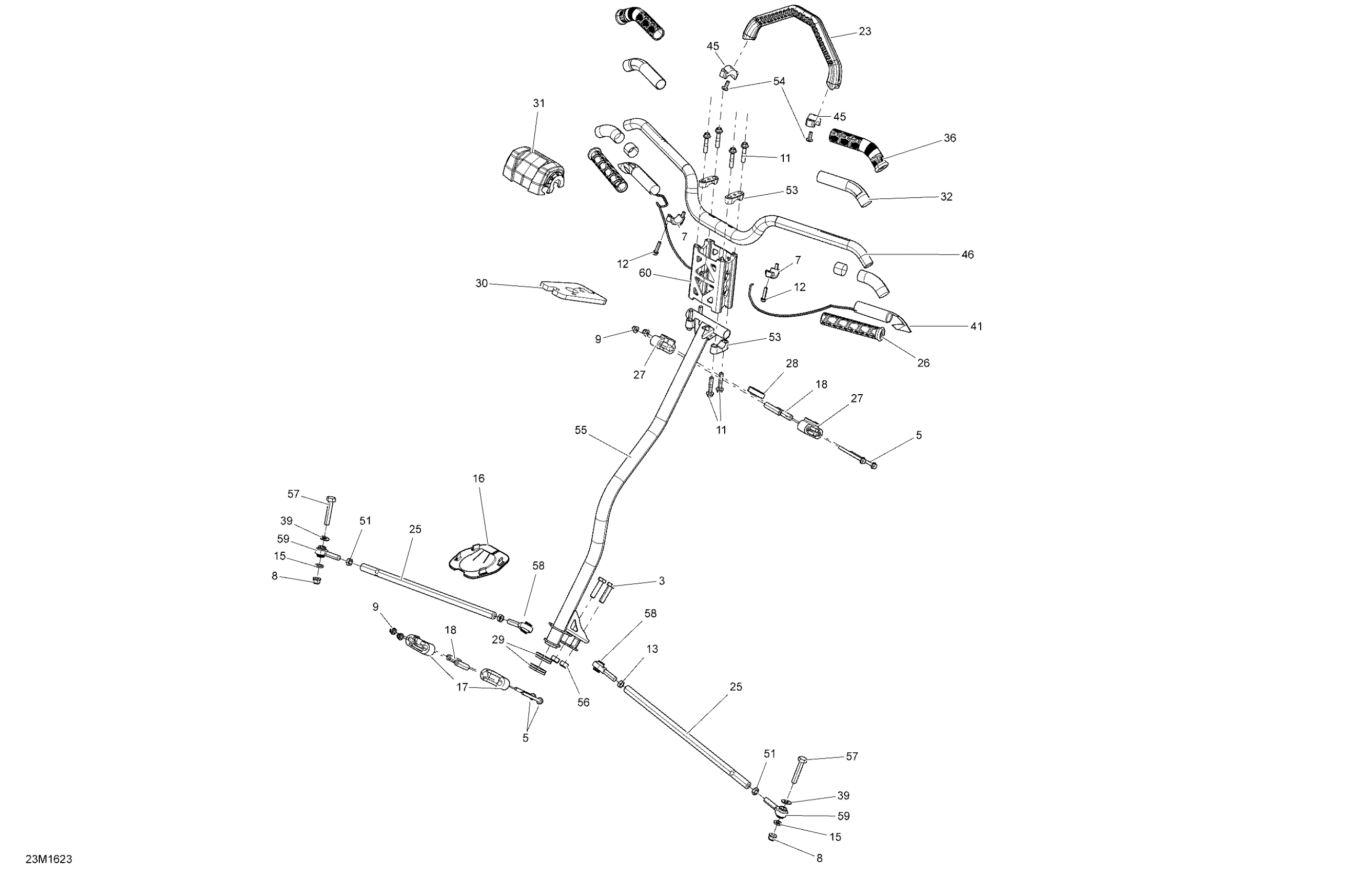

Ski-Doo SUMMIT 600HO E-TEC 000CCGA00 000CCGB00 000CCGC00 000CCGD00 000CCGE00 000CCGF00 000CXGA00 000CXGB00 000CXGC00 000CXGD00 000CXGE00 000CXGF00 07- Steering - 600HO ETEC Diagram

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

Hex. Flange Screw M6 X 70

207667056

$4.44

Clamps | Includes 75a to 75b

719000049

$14.83

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M8 X 40

250000352

$3.38

Hex. Flange Screw M6 X 25

250000447

$2.11

LH Threaded Hex. Jam Nut M10

250100016

$0.74

Washer

503192496

$0.77

Plate

506152163

$12.99

Lower Half-Housing | Package XRS

506152588

$12.58

Housing Bushing

506152297

$12.99

Moulding Strap

506152460

$67.99

Tie-Rod

506152482

$38.99

Grip

506152486

$16.34

Upper Half-Housing

506152508

$9.23

Upper Anti-Vibration Gasket

506152509

$4.79

Lower Vibration Ring

506152518

$4.79

Bushing

506152521

$15.79

Deep Black, Steering Pad

506152541

$41.99

Thermal Insulation

506153176

$6.09

Grip 148mm

506152560

$16.88

Washer

506152582

$4.55

Heating Element 32 Watt 3 Wires

506152798

$52.99

Black Support Plate

506152703

$16.49

Handle Bar, Non Dyed Clear Anodizing

506152709

$83.49

RH Threaded Hex. Jam Nut M10

732610010

$0.74

Steering Support

506152555

$37.99

Steering Support | Includes 40 to 40a

506152751

$13.99

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Steering Column

506152962

$199.99

Elastic Locking Nut M10

233601466

$2.11

Hex Screw M10 X 1.5 X 55

207005554

$7.51

LH Thread Ball Joint

506152081

$41.49

RH Threaded Ball Joint

506152684

$44.49

Steering Extension

506152569

$147.99

WHITE HANDLEBAR EXTENSION - Call your local BRP dealership | Package SP, Model Red-Red

506152757

Unavailable
