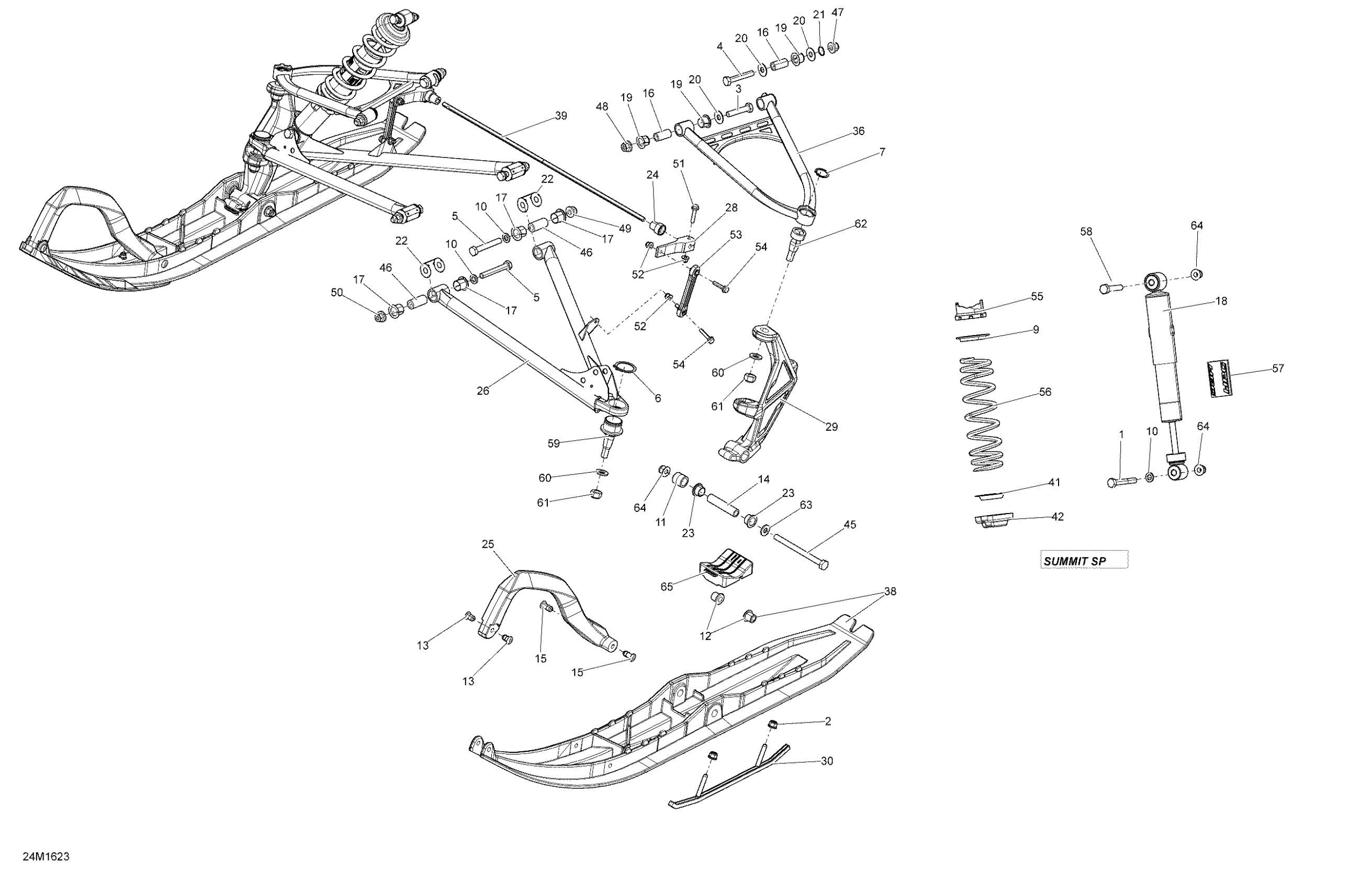

Ski-Doo SUMMIT 600HO E-TEC 000CCGA00 000CCGB00 000CCGC00 000CCGD00 000CCGE00 000CCGF00 000CXGA00 000CXGB00 000CXGC00 000CXGD00 000CXGE00 000CXGF00 Front Suspension And Ski - 600HO ETEC Diagram

#

Description
Price

1

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

2

Hex. Flange Elastic Nut M8

233281414

$1.14

3

Screw Hex. M10 X 50

250001022

$1.42

4

Screw Hex. M10 X 60

250001023

$1.74

5

Screw Hex. M10 X 70

250001024

$1.74

6

Circlip

293370035

$2.55

7

Circlip

293370070

$7.02

9

Spring Guide

503187500

$7.37

10

Washer

503189564

$0.72

11

Spacer

503193651

$7.58

12

Ski Bushing

505071781

$15.35

13

Retainer 17mm long

505071812

$4.43

14

Spacer

506133300

$19.97

15

Retainer 23mm Long

505072133

$5.03

16

Sleeve

505072143

$8.62

17

Bushing

505072208

$3.14

18

Front Shock

505073931

$238.43

19

Bushing

505072250

$3.14

20

Washer

505072392

$4.65

21

O-Ring

505072448

Unavailable

22

Wear Plate

505072634

$4.45

23

Leg Bushing

505072690

Unavailable

24

Bushing

505072786

$2.22

25

Black, Handle

505072976

$35.35

25

Red, Handle

505073388

$40.74

26

Black, LH Lower Arm 36"

505073438

$193.82

26

Black, Lower Arm RH 36"

505073441

$193.82

28

Stabilisator Lever

505073176

$16.12

29

Black, LH Ski Leg

505073579

$238.43

29

Black, LH Ski Leg

505073579

$238.43

29

SKILEG LH MACHINED - Call your local BRP dealership

505073880

Unavailable

29

SKILEG LH MACHINED - Call your local BRP dealership | Model Black-Red

505073991

Unavailable

29

Black, RH Ski Leg

505073580

$269.20

29

White RH Ski Leg

505073881

$233.05

29

Red RH Ski Leg | Model Black-Red

505073992

Unavailable

29

Black RH Ski Leg | Model Black-Yellow

505073581

Unavailable

30

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

36

Black Upper Arm LH

505073432

$193.82

36

Black, Upper Arm RH

505073435

$193.82

38

Black, Ski

505073227

$175.35

39

Stabilisator

505073609

$65.99

41

Cap

706200785

$4.42

42

Spring Stopper

706200881

$10.30

42

Spring Stopper

503194270

$16.89

45

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

46

Sleeve

505072209

$14.38

47

Hex. Flange Elastic Nut M10

250100165

$0.70

48

Hex. Flange Elastic Nut M10

250100165

$0.70

49

Hex. Flange Elastic Nut M10

250100165

$0.70

50

Hex. Flange Elastic Nut M10

250100165

$0.70

51

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

52

Hex. Flange Elastic Nut M6

233261466

$1.66

53

Double Ball Joint Link

505073172

$54.58

54

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

55

Adjustment Cam

505073625

$12.18

56

Black Spring

505072792

$77.66

57

Shock Decal "HPG" | Europe Models

516005533

$12.65

58

Hex Screw M10 X 1.5 X 55

207005554

$6.18

59

Ball Joint

505073636

$49.97

60

Washer

503192491

$4.38

61

Hex Elastic Nut M12 X 1.25

232521464

$1.74

62

Upper Ball Joint

505072913

$69.97

63

Washer

503192496

$0.75

64

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

65

Ski Stopper

505072594

$17.66
