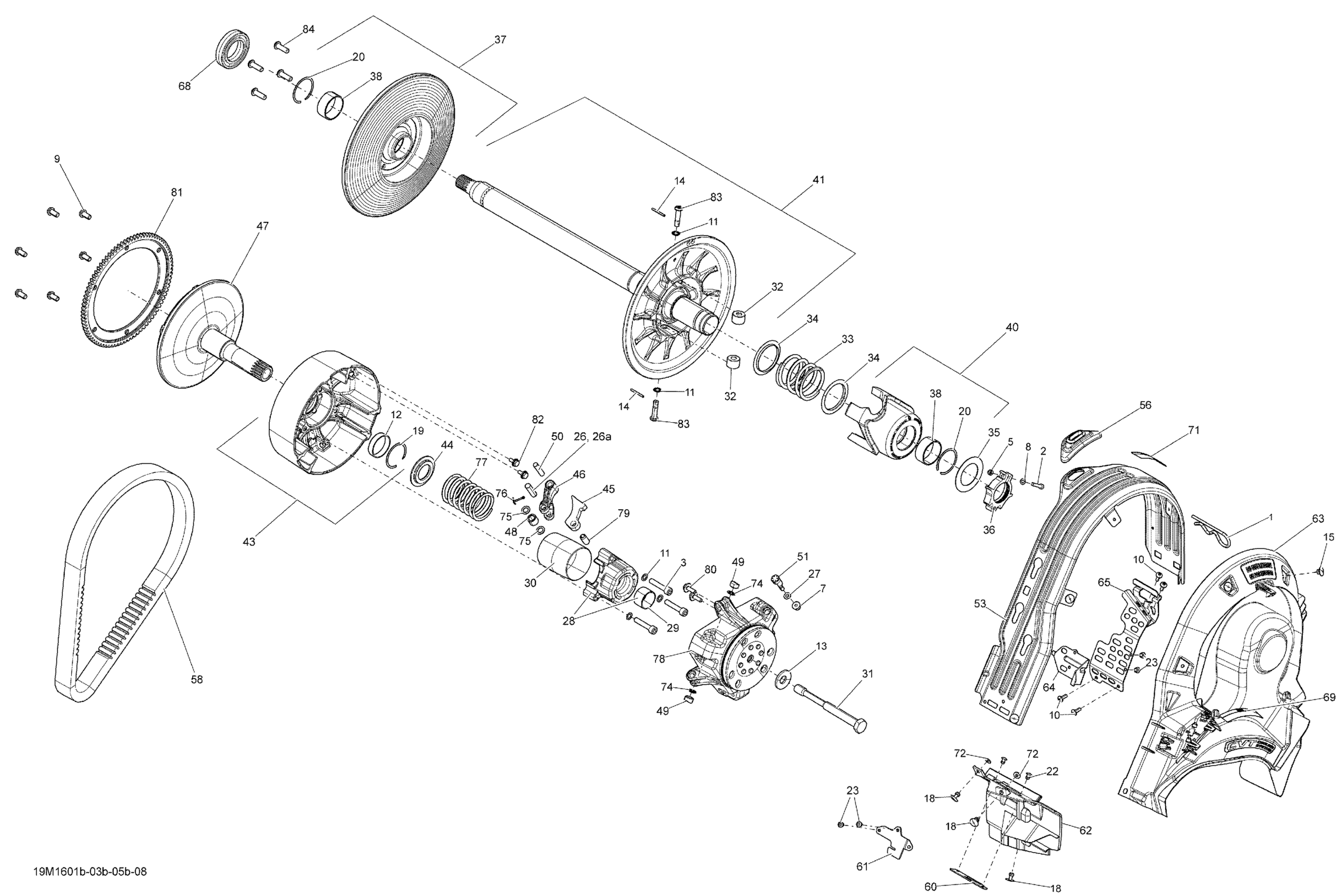

Ski-Doo SUMMIT 600HO E-TEC 000CCGA00 000CCGB00 000CCGC00 000CCGD00 000CCGE00 000CCGF00 000CXGA00 000CXGB00 000CXGC00 000CXGD00 000CXGE00 000CXGF00 05- Pulley System - 600HO ETEC Diagram

#

Description
Price

1

Hair Pin

114045200

$11.11

2

Socket Screw M5 X 25

205052544

$1.68

3

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

5

Elastic Stop Nut M5

232551414

$0.87

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Flat Washer M5

234051410

$0.53

9

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.99

10

Torx Screw M5 X 14

250000742

$1.47

11

Lock Washer 8 mm

250200009

$2.11

12

Bushing

417222758

$22.49

13

Conical Spring Washer M14

250200144

$4.44

14

Spring Pin M3 X 30

250400063

$2.11

15

Pop Rivet 3/16"

293150103

$0.55

18

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

19

Circlip

293370037

$3.19

20

Circlip

293370049

$4.99

22

Avex Rivet

390909100

$0.30

23

Avex Rivet

390909200

$0.30

26

Pin

417004308

$13.99

26

Threaded Pin

417222477

$25.99

26a

Socket Set Screw M6 X 1.0 X 16

250000410

$4.09

27

Washer

417005600

$4.09

28

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

29

Bushing

417009204

$17.49

30

Guard

417009205

$21.99

31

Drive Pulley Bolt

417120000

$65.49

32

Pulley Roller

417127016

$24.49

33

Black, Return Spring

417127039

$46.49

34

Swivel Abutment

417127116

$9.39

35

Washer

417127155

$8.26

36

Calibration Ass'y

415129604

$21.49

37

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

38

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

40

Cam Ass'y | Includes 100c to 100c2

417127376

$132.99

41

Fix Flange Ass'y | Includes 100a to 100a4

417127389

$539.99

43

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$219.99

44

Spring Seat

417222312

$9.59

45

Ramp 412

417222515

$39.99

45

Ramp 440 | High Altitude

417223096

$33.99

46

Lever | Includes 10f to 10g

417222671

$49.99

47

Fixed Flange Ass'y

417222937

$439.99

48

Roller

417222947

$21.99

49

Slider Shoe

417222992

$4.49

49

Slider Shoe

417223271

$8.26

50

Lever Axle

417223164

$4.49

51

Calibration Screw

417223501

$13.99

53

Belt Guard

417300357

$91.99

56

Guide

417300381

$11.99

58

Drive Belt

417300551

$179.99

60

Reinforcement

417300380

$7.29

60

Reinforcement Plate

417300421

$4.39

61

Front Bracket

417300423

$7.29

62

Front Support

417300430

$14.49

63

CVT Air Duct Pulley

417300440

$28.99

63

CVT AIR DUCT - Call your local BRP dealership | Package SE

417300466

$71.99

64

Stopper

417300445

$10.49

65

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$31.99

66

Stopper | Package SE

417300476

$33.99

68

Ball Bearing

504152574

$35.99

69

Decal English

516005503

Unavailable

71

Safety Belt Guard Decal

516005509

Unavailable

72

Flat Washer

517225900

$0.18

74

O-Ring

732401030

$0.98

75

Stopper Washer

417004302

$15.90

76

Cotter Pin

250400060

$2.00

77

Spring, Blue/green

414817700

$46.49

77

Spring, Violet/green | High Altitude

415015400

$43.49

78

Governor Cup Ass'y

417223669

$489.99

79

Spring Pin M10 X 22

250400050

$2.99

80

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

81

Ring Gear_Starter This part replaces 417223738.

417225070

$239.99

82

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09

83

Pivot Stud

417127294

$14.49

84

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00
