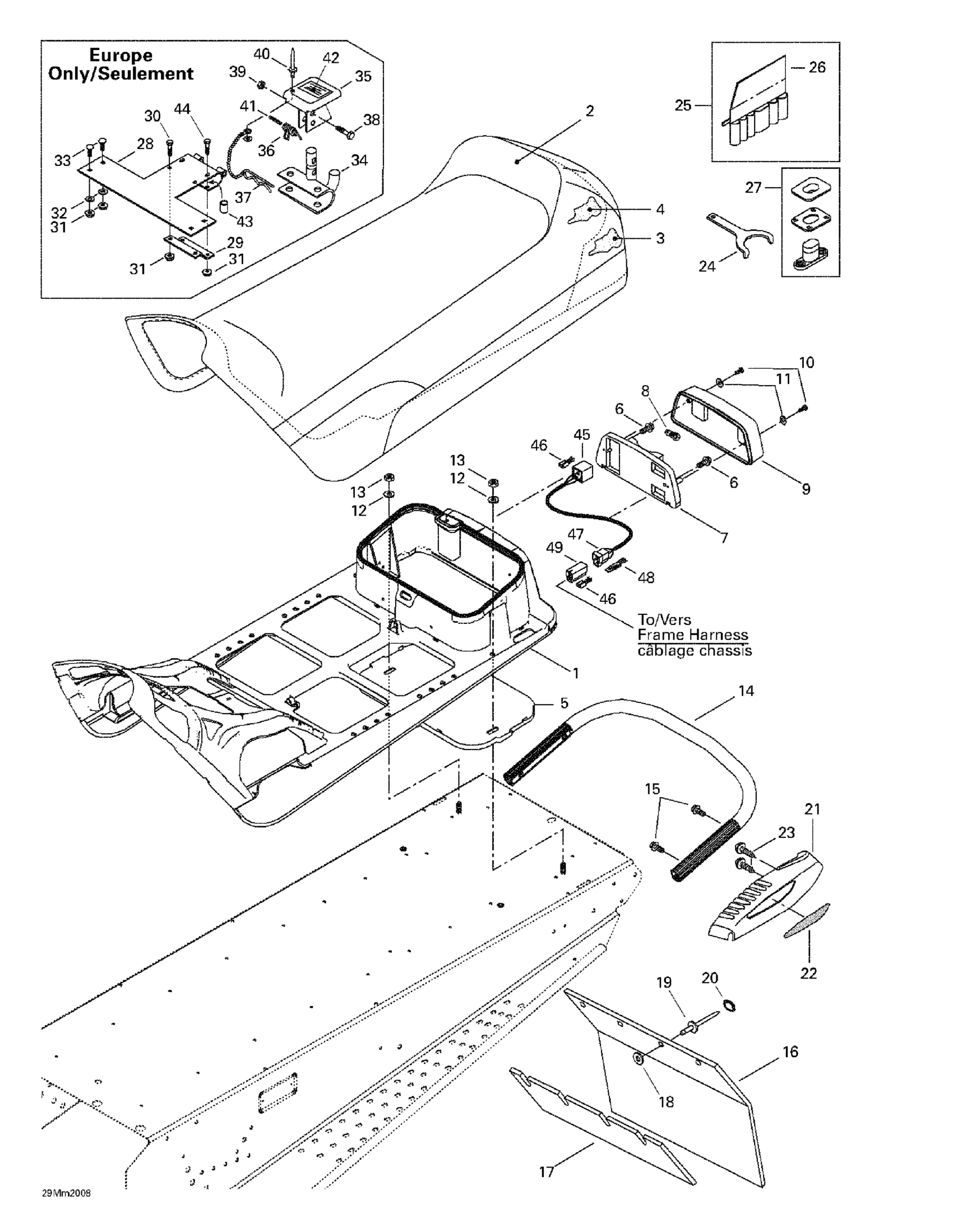

Ski-Doo Summit 600/SB, 2000 09- Seat And Accessories Diagram

#

Description
Price

1

Seat Base

572107600

Unavailable

2

Seat Cover

510003745

Unavailable

3

Seat Foam

510003608

Unavailable

4

Seat Foam

510003500

Unavailable

5

UNDER CHEST - Call your local BRP dealership

572107601

Unavailable

6

Hex. Screw #10 X 1"

732603006

Unavailable

7

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

8

Bulb

520000758

$9.10

9

Lens

414513700

$28.99

10

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

11

Washer - Call your local BRP dealership

414516400

Unavailable

12

Flat Washer 8 mm

234082410

$1.47

13

Hex. Elastic Stop Nut M8

232581414

$0.56

14

REAR BUMPER - Call your local BRP dealership

518318200

Unavailable

Rear Bumper

517243800

Unavailable

15

Hex. Flange Screw M8 X 20

207682044

$1.15

16

Snow Guard

520000180

Unavailable

Snow Guard (Europe)

520000181

Unavailable

17

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

18

Flat Washer

517225900

$0.18

19

Pop Rivet 3/16"

293150100

$1.09

20

Cap

415073300

Unavailable

21

RH Moulding | RENEGADE

572097300

Unavailable

LH Moulding | RENEGADE

572097400

Unavailable

22

RH Reflector, Red

516000237

Unavailable

RH Reflector, Yellow, Europe | SE GT Europe

516000241

Unavailable

LH Reflector, Red

516000238

Unavailable

LH Reflector, Yellow, Europe | SE GT Europe

516000242

Unavailable

23

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

24

Adjustment Wrench

529000035

$2.09

25

Tool Kit | Includes 12 to 13

529035596

$27.99

26

Tool Bag

520000047

Unavailable

27

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

28

Fixation | Grand Touring 500. Grand Touring 600. Grand Touring 800.

511000030

Unavailable

29

REINFORCEMENT - Call your local BRP dealership | Europe

511000022

Unavailable

30

Hex. Screw M6 X 18

207161844

$0.76

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

32

Flat Washer

224061201

$1.37

33

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

34

Hitch | Europe

517199300

Unavailable

35

Hitch Protector | Europe

517152700

Unavailable

36

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

37

Hair Pin

114045200

$11.11

38

Hex. Screw M6 X 30

207063044

$1.26

39

Elastic Stop Nut M6

232561414

$0.55

40

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

41

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

42

Instruction Label (Hitch)

414998500

Unavailable

43

SPACER - Call your local BRP dealership | Europe

517191700

Unavailable

44

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

45

Female Terminal Housing, 3 Circuits

515175250

Unavailable

46

Female Terminal

561503100

$2.41

47

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

48

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

49

Female Housing

409204300

Unavailable
