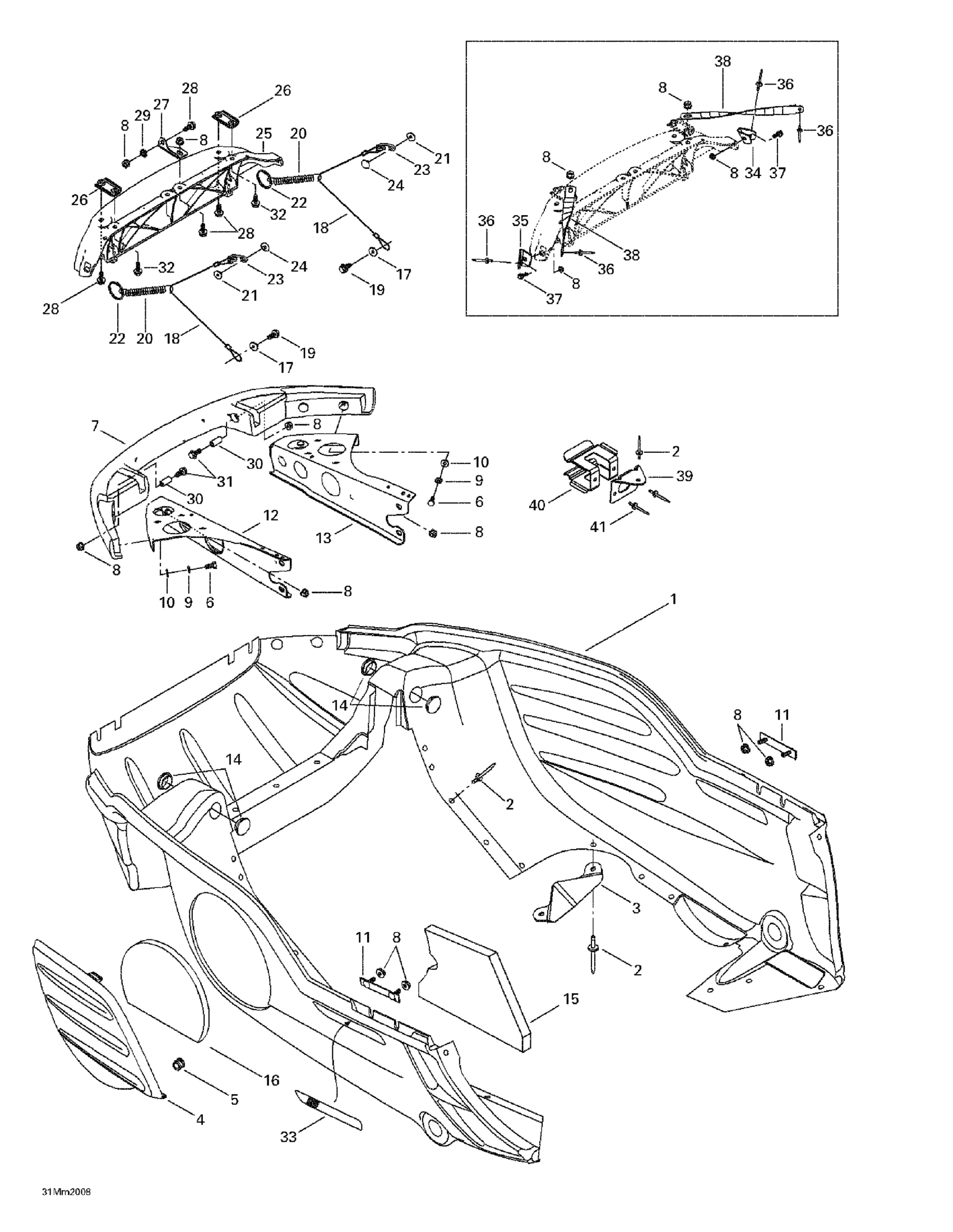

Ski-Doo Summit 600/SB, 2000 09- Bottom Pan Diagram

#

Description
Price

1

Deep Black, Bottom Pan

502006589

Unavailable

2

Pop Rivet 3/16"

390906800

$0.93

3

Snow Deflector

502006563

Unavailable

4

BOTTOM PAN DOOR, BLACK, B-160 - Call your local BRP dealership

502006506

Unavailable

5

Grommet

414036300

$2.79

6

Hex. Screw M6 X 14

207161444

$0.58

7

Bumper, Black

502006719

$101.49

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Lock Washer M6, Black

234161471

$0.53

10

Flat Washer

224061121

$0.53

11

Bracket

502006500

Unavailable

12

LH SUPPORT - Call your local BRP dealership

502006597

Unavailable

13

RH Support

502006596

Unavailable

14

Black, Nylon Cap

414916600

$4.69

15

Bottom Foam

502006558

Unavailable

16

Bottom Pan Door Foam

502006559

Unavailable

17

Washer | DS 650 X

391301600

$0.48

18

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Spring

415043300

Unavailable

21

Washer

517124300

$0.19

22

RING - Call your local BRP dealership

415058300

Unavailable

23

Bracket

517262800

Unavailable

24

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

25

Hinge

517302631

$48.99

26

HINGE SIDE PLATE - Call your local BRP dealership

517302176

Unavailable

27

Hinge Center Plate

517302045

Unavailable

28

Hex. Flange Screw M6 X 16

207661654

$2.11

29

Lock Washer Serrated M6

250200041

$1.15

30

BUSHING - Call your local BRP dealership

517302179

Unavailable

31

Hex. Flange Screw M6 X 35

207663544

$0.90

32

Hex. Flange Screw M6 X 25

207662544

$0.64

33

Decal - RH Reflector

415064400

Unavailable

Decal - LH Reflector

415064401

Unavailable

34

RH Corner Support

517302254

Unavailable

35

LH Corner Support

517302255

Unavailable

36

Pop Rivet 3/16"

390406500

$0.88

37

Hex. Flange Screw M6 X 16

207661654

$2.11

38

Hood Clamp

517302256

Unavailable

39

Belt Support

502006599

Unavailable

40

Bracket

517281905

$18.49

41

Pop Rivet 3/16"

390402400

$0.35
