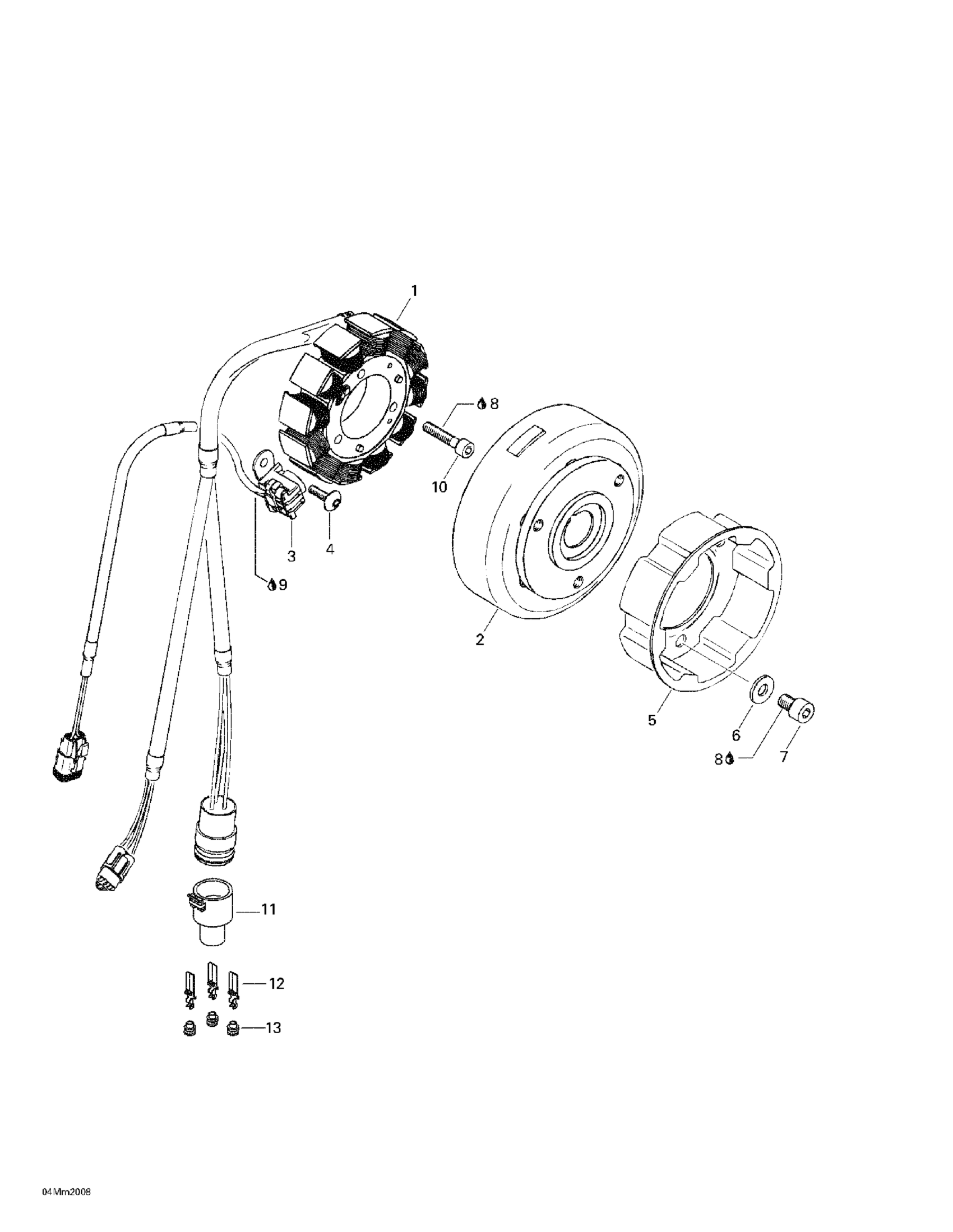

Ski-Doo Summit 600/SB, 2000 03- Magneto 12V 290W Diagram

#

Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

1

STATOR PLATE ASS'Y - Call your local BRP dealership | Formula Deluxe 700.

410922923

Unavailable

2

Flywheel

410922933

Unavailable

3

Pickup Ass'y

410922925

Unavailable

4

Torx Screw M6 X 16

420640324

$2.11

5

Starting Pulley

420852590

$29.49

6

Washer-Lock Din.128

420945832

$1.15

7

Socket Head Screw M8 X 12

420841520

$1.69

8

Loctite 243, 10 ml

293800060

$21.49

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Socket Head Screw M6 X 30

205063044

$1.69

11

MALE HOUSING - Call your local BRP dealership

409207900

Unavailable

12

MALE TERMINAL - Call your local BRP dealership

409011100

Unavailable

13

SEAL - Call your local BRP dealership

409208500

Unavailable
