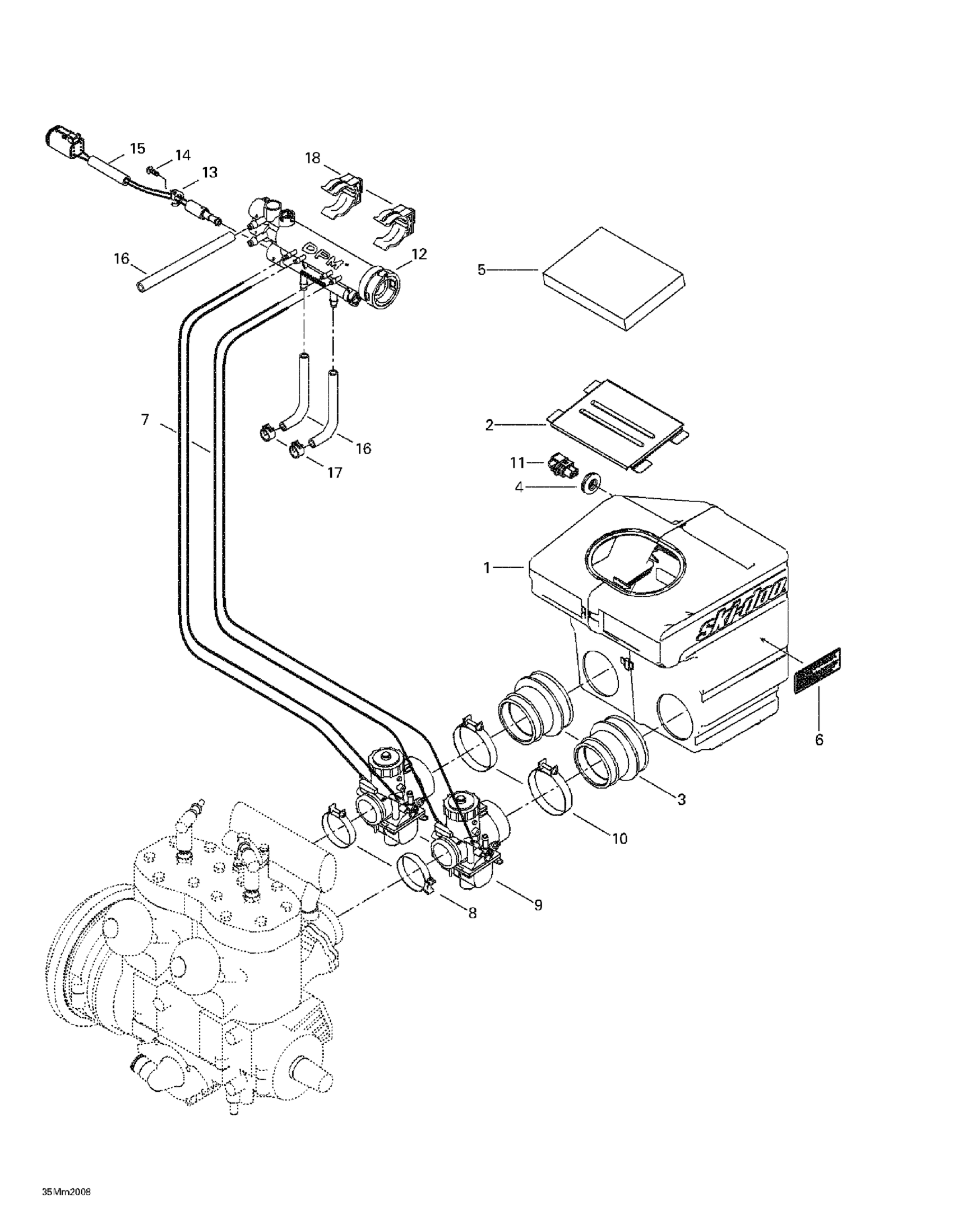

Ski-Doo Summit 600/SB, 2000 02- Air Intake System Diagram
#
Description
Price
1
Air Intake Ass'y | Includes 1 - 7. MX-Z 600 SB. MX-Z 600 SB Black.
508000081
Unavailable
2
INTAKE GRILL - Call your local BRP dealership
508000004
Unavailable
3
Air Intake Adaptor (40 mm)
570068900
Unavailable
4
GROMMET - Call your local BRP dealership
570065500
Unavailable
6
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.
516002715
Unavailable
7
Hose | MX-Z 600.
404161814
Unavailable
9
Carburetor VM40-126
403138618
Unavailable
10
Clamp
508000009
Unavailable
11
AIR TEMPERATURE SENSOR - Call your local BRP dealership
270600000
Unavailable
12
Pressure Manifold Ass'y | Includes 11 - 14. MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.
512059193
Unavailable
13
SOLENOID LOCK - Call your local BRP dealership
415061600
Unavailable
15
Pressure Manifold Harness | Includes 4 - 8.
515175271
Unavailable
18
SUPPORT - Call your local BRP dealership
512058919
Unavailable
