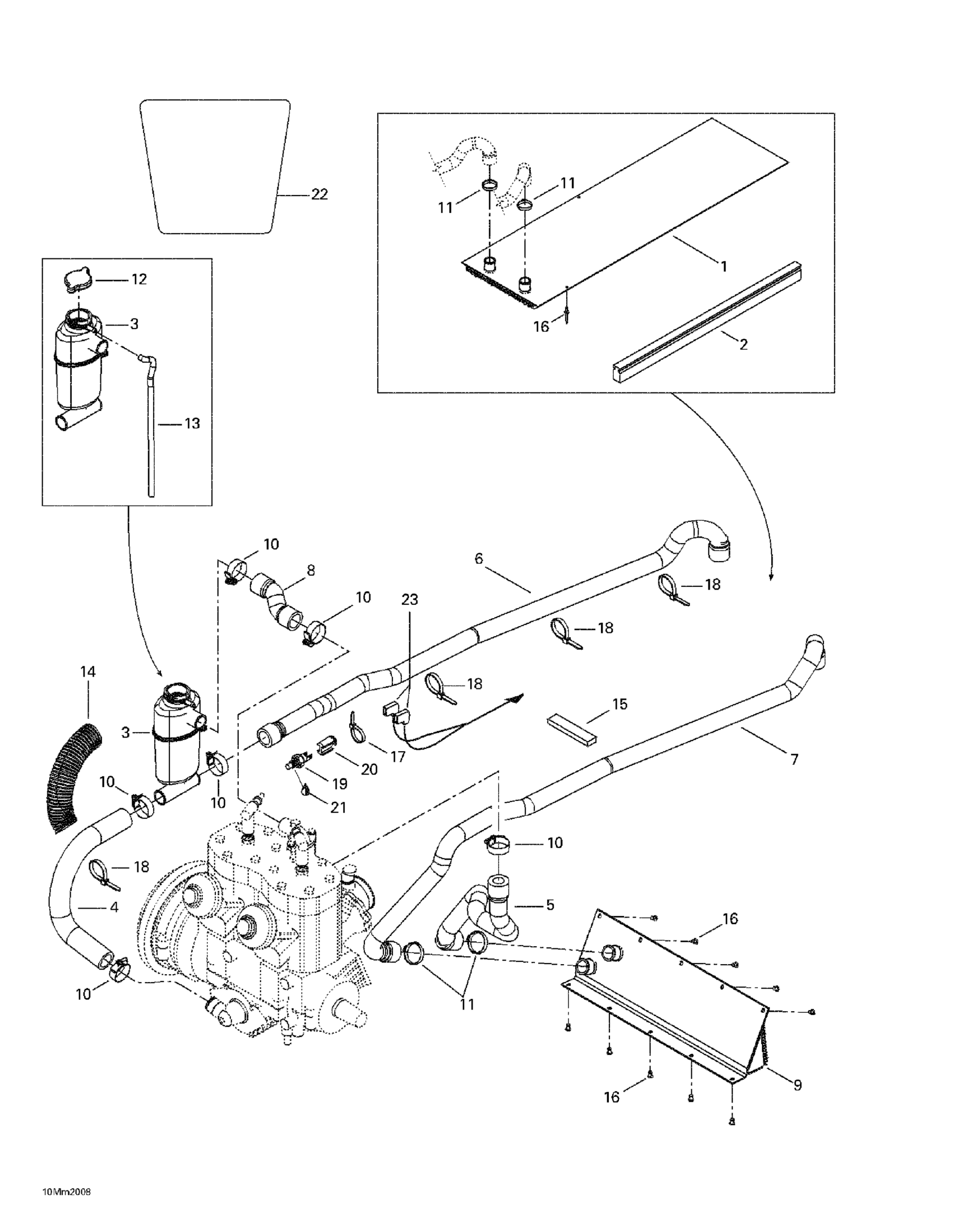

Ski-Doo Summit 600/SB, 2000 01- Cooling System Diagram

#

Description
Price

1

Rear Radiator | Includes 28 - 29.

517296310

Unavailable

2

Radiator Protector | Grand Touring 500.

518321656

Unavailable

3

Tank Coolant | Grand Touring 500. This part replaces 509000133.

509000134

$91.99

4

Engine Inlet Hose

509000001

Unavailable

5

ENGINE OUTLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000046

Unavailable

6

Radiator Outlet Hose | Grand Touring 500.

509000004

Unavailable

7

RADIATOR INLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000003

Unavailable

8

Deviation Hose

509000005

Unavailable

9

Front Radiator | Grand Touring 500.

517297100

Unavailable

10

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

11

Oetiker Gear Clamp 36.1MM

509000045

$8.29

12

Pressure Cap

509000187

$29.49

13

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

14

Was 415084700 Protective Shield | Grand Touring 500.

219704413

Unavailable

15

Neoprene Seal (1PAC=3M)

219704364

$27.49

16

Pop Rivet 3/16"

390402200

$0.35

17

Tie Wrap 142 mm

293750002

$1.25

18

Tie Wrap 368 mm

293750008

$1.04

19

Temperature Sensor | Grand Touring 500.

512047000

Unavailable

20

Connector Plug | Grand Touring 500.

515175297

Unavailable

21

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

22

Reflection Sheet

509000068

Unavailable

23

Female Terminal

409010300

$4.39
