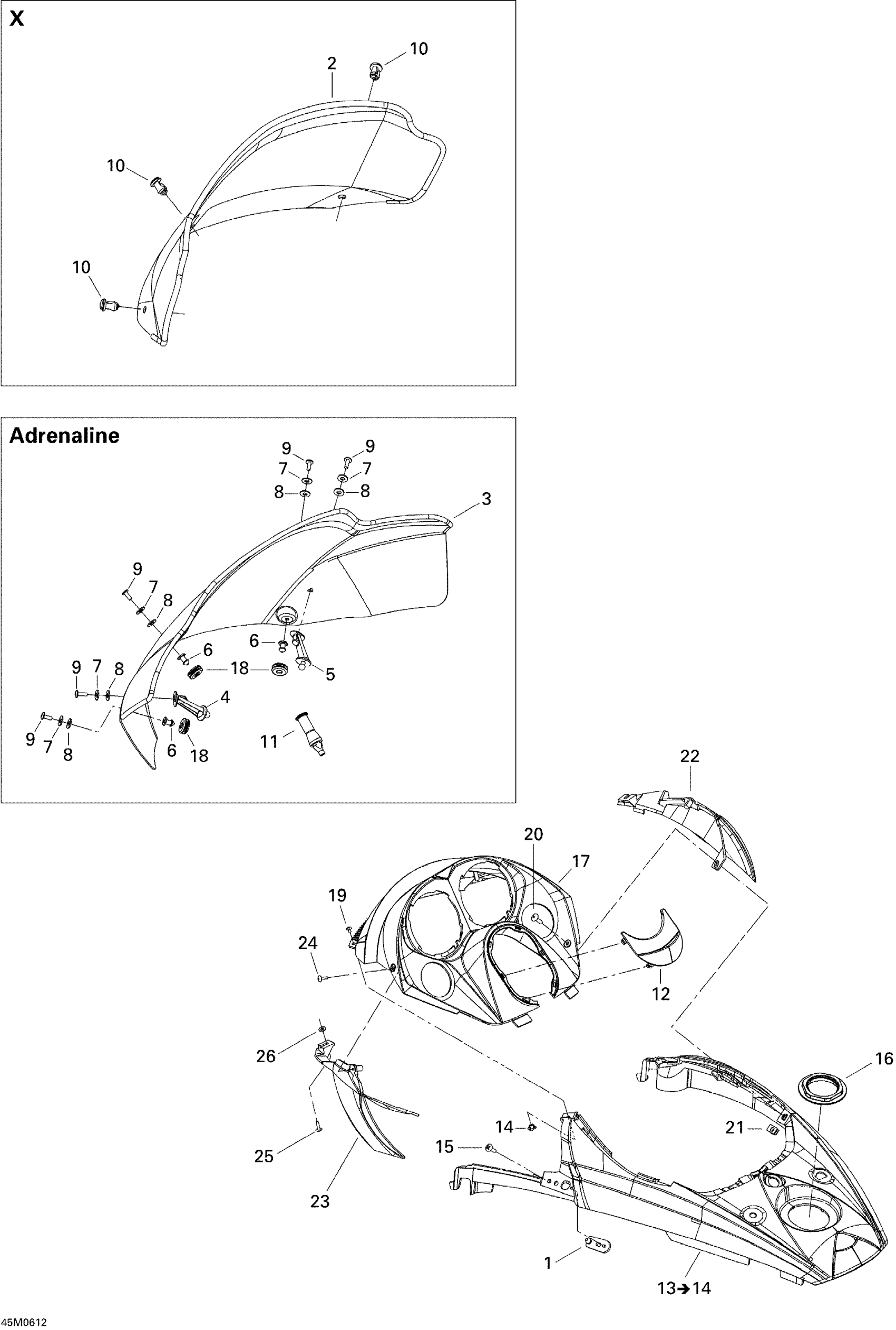

Ski-Doo Summit 600 HO SDI, Adrenaline, 2006 09- Windshield And Console 600HO Diagram

#

Description
Price

1

HOOD LATCH - Call your local BRP dealership

517302616

Unavailable

2

Not Available As Spare Parts

XXX

Unavailable

3

MEDIUM WINDSHIELD - Call your local BRP dealership

517303174

Unavailable

4

LH WINDSHIELD SUPPORT - Call your local BRP dealership

517303214

Unavailable

5

RH WINDSHIELD SUPPORT - Call your local BRP dealership

517303215

Unavailable

6

Knob

517303439

$4.55

7

Washer M5

250200025

$0.74

8

Rubber Washer 5 mm

250200024

$2.19

9

Torx Screw K50 X 16

250000720

$1.69

10

Not Available As Spare Parts

XXX

Unavailable

11

WINDSHIELD SUPPORT - Call your local BRP dealership

517303197

Unavailable

12

CONSOLE CAP - Call your local BRP dealership

517302592

Unavailable

13

Center Console | Includes 11 to 12, 600 HO SDI (Blue/Black)

517303069

Unavailable

13

Center Console | Includes 13 to 14, Adrenaline 600 H.O. SDI, Red-Black Model

517303656

Unavailable

14

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

14

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

15

Torx Screw M6 X 20

250000722

$1.68

16

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

17

INDICATOR SUPPORT - Call your local BRP dealership

517303470

Unavailable

18

Grommet

517302841

$7.89

19

Torx Screw M4 X 8

250000127

$1.15

20

Torx Screw M5 X 20

250000724

$1.69

21

Panel Nut M5 X 0.8

250000958

$4.23

22

RH AIR DEFLECTOR - Call your local BRP dealership

517302546

Unavailable

23

LH AIR DEFLECTOR - Call your local BRP dealership

517302547

Unavailable

24

Phillips Screw K40 X 16

250000723

$0.98

25

Screw M4 X 16

250000725

$3.49

26

Flat Washer 4 mm, Stainless

234042600

$1.15
