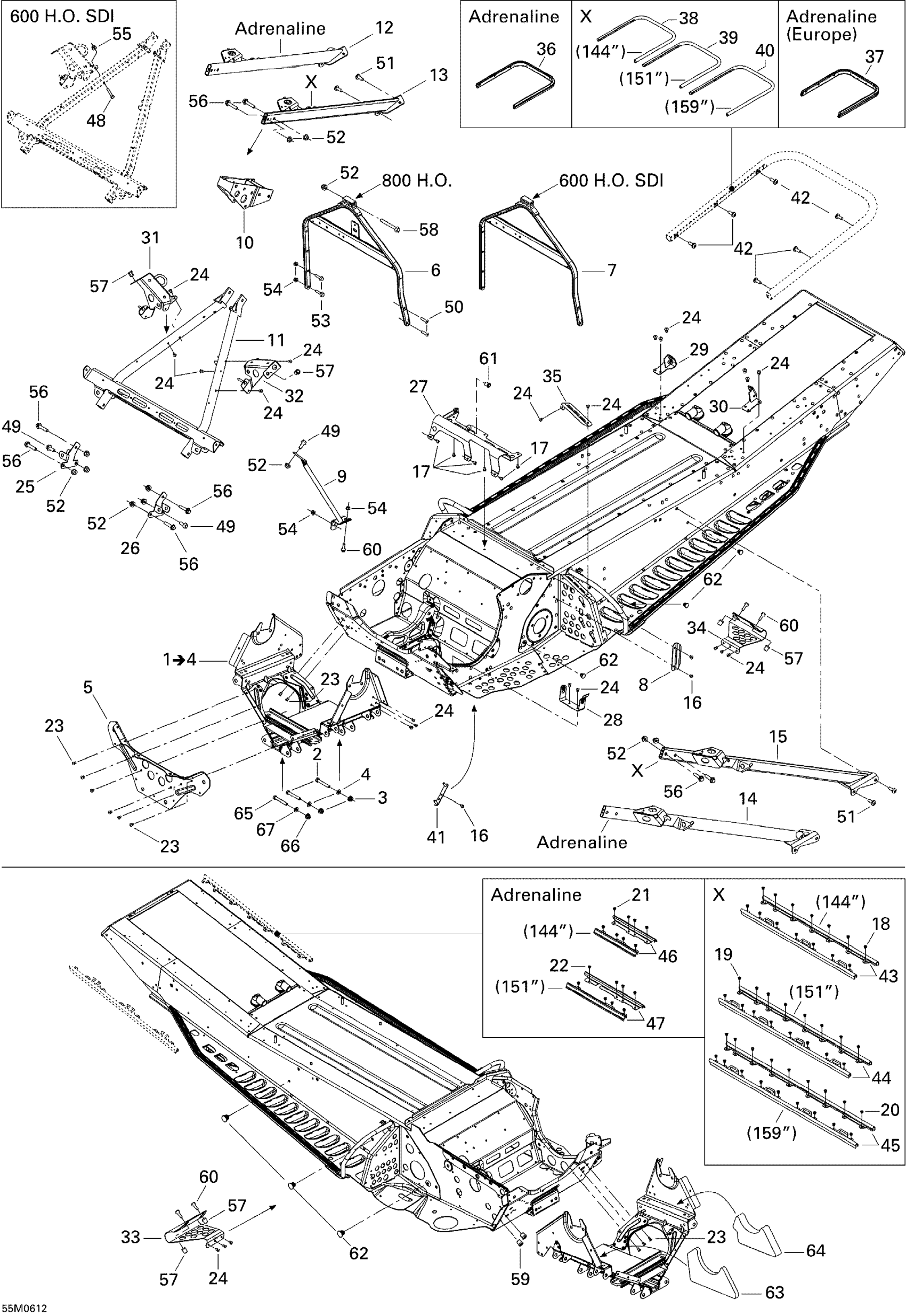

Ski-Doo Summit 600 HO SDI, Adrenaline, 2006 09- Frame and Components 600HO Diagram

#

Description
Price

1

Cross Member | Includes 1 to 6

518325423

$529.99

2

Hex. Screw M8 X 55

207085544

$1.68

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Flat Washer 8 mm

234081410

$0.83

5

Front Plate

518324726

Unavailable

6

Not Available As Spare Parts

XXX

Unavailable

7

HANDLE SUPPORT - Call your local BRP dealership

518324505

Unavailable

8

CABLE PROTECTOR - Call your local BRP dealership

518317504

Unavailable

9

BRACE, BLACK - Call your local BRP dealership

518323472

Unavailable

10

BRACKET BLOCK - Call your local BRP dealership

518323854

Unavailable

11

UPPER CROSS MEMBER - Call your local BRP dealership

518324739

Unavailable

12

RH Member

518323352

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

LH MEMBER - Call your local BRP dealership

518323354

Unavailable

15

Not Available As Spare Parts

XXX

Unavailable

16

Pop Rivet 3/16"

390402200

$0.35

17

Pop Rivet 3/16"

390402400

$0.35

18

Not Available As Spare Parts

XXX

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

Pop Rivet 3/16"

390402400

$0.35

22

Not Available As Spare Parts

XXX

Unavailable

23

Avex Rivet

390909100

$0.30

24

Avex Rivet

390909200

$0.30

25

RH SHOCK BRACKET - Call your local BRP dealership

518322461

Unavailable

26

LH SHOCK BRACKET - Call your local BRP dealership

518322462

Unavailable

27

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

28

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

Unavailable

29

RH BRACKET, BLACK - Call your local BRP dealership

518323769

Unavailable

30

LH BRACKET, BLACK - Call your local BRP dealership

518323770

Unavailable

31

RH Console Support

518323535

Unavailable

32

LH Console Support

518323536

Unavailable

33

RH TOE HOLD - Call your local BRP dealership

518324391

Unavailable

34

LH TOE HOLD - Call your local BRP dealership

518324392

Unavailable

35

PLATE, BLACK - Call your local BRP dealership

518323105

Unavailable

36

Rear Bumper

518323778

Unavailable

37

Rear Bumper | Europe

518324829

Unavailable

38

Not Available As Spare Parts

XXX

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

Not Available As Spare Parts

XXX

Unavailable

41

TRUNK BRACKET, BLACK - Call your local BRP dealership

518323896

Unavailable

42

Hex. Screw M8 X 20

236282084

$1.48

43

Not Available As Spare Parts

XXX

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable

44

Not Available As Spare Parts

XXX

Unavailable

44

Not Available As Spare Parts

XXX

Unavailable

45

Not Available As Spare Parts

XXX

Unavailable

45

Not Available As Spare Parts

XXX

Unavailable

46

RH Wire Protector | Adrenaline with Track 144"

518323901

Unavailable

46

LH Wire Protector | Adrenaline with Track 144"

518323902

Unavailable

47

Not Available As Spare Parts

XXX

Unavailable

47

Not Available As Spare Parts

XXX

Unavailable

48

Hex. Flange Screw M6 X 35

207063544

$1.37

49

Hex. Flange Screw M8 X 20

207682044

$1.15

50

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.12

51

Pan Head Torx Screw M8 X 12

250000887

$1.90

52

Hex. Flange Elastic Nut M8

233281414

$1.47

53

Hex. Flange Screw M6 X 25

207662544

$0.64

54

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

55

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

56

Hex. Flange Screw M8 X 35

207683544

$1.69

57

Insert

293450275

$12.99

58

Hex. Flange Screw M8 X 70

207687044

$7.41

59

Insert

293450166

$4.29

60

Hex. Flange Screw M6 X 20

207662044

$2.00

61

Threaded Insert M6 X 1.0

250100242

Unavailable

62

Panel Fastener

518321954

$7.69

63

RH FRONT FOAM - Call your local BRP dealership

518323453

Unavailable

64

LH FRONT FOAM - Call your local BRP dealership

518323007

Unavailable

65

Hex. Screw M8 X 55

207085544

$1.68

66

Hex. Flange Elastic Nut M8

233281414

$1.47

67

Flat Washer 8 mm

234081410

$0.83
