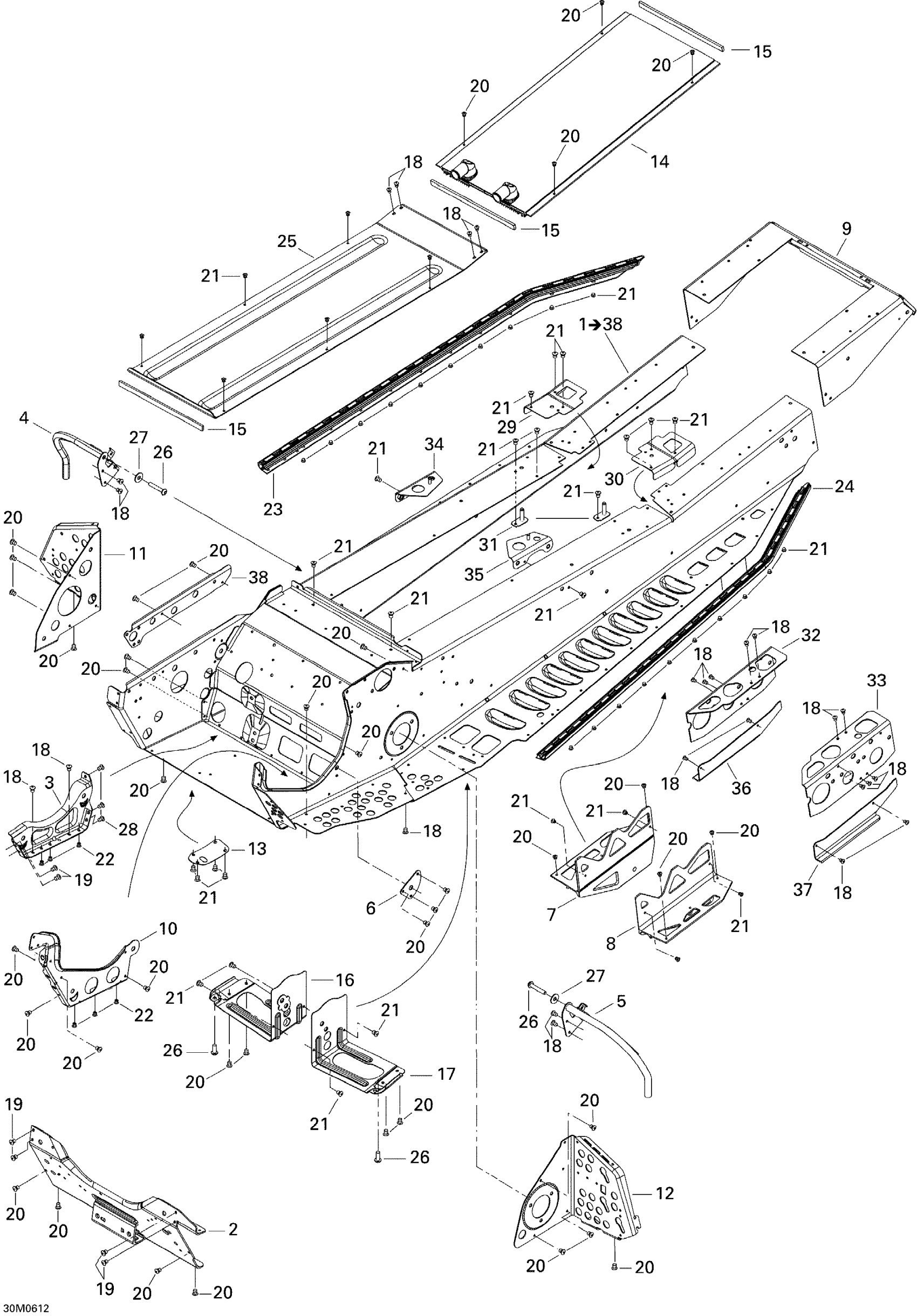

Ski-Doo Summit 600 HO SDI, Adrenaline, 2006 09- Frame 600HO Diagram

#

Description
Price

1

Frame Ass'y | Adrenaline with Track 144", Includes 1 to 38

415129146

Unavailable

2

FRONT PAN - Call your local BRP dealership

518323239

Unavailable

3

ENGINE SUPPORT, BLACK - Call your local BRP dealership

518323346

Unavailable

4

RH TOE HOLD SUPPORT - Call your local BRP dealership

518324162

Unavailable

5

LH TOE HOLD SUPPORT - Call your local BRP dealership

518324163

Unavailable

6

OUTER REINFORCEMENT - Call your local BRP dealership

518323507

Unavailable

7

RH Suspension Bracket

518324419

Unavailable

8

LH Suspension Bracket

518324420

Unavailable

9

REAR CAP - Call your local BRP dealership | Adrenaline with Track 144"

518323803

Unavailable

10

INNER REINFORCEMENT, BLACK - Call your local BRP dealership

518323241

Unavailable

11

RH Footrest Reinforcement

518323805

Unavailable

12

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518324527

Unavailable

13

PLATE - Call your local BRP dealership

518324169

Unavailable

14

Rear Radiator

518323720

Unavailable

15

GASKET - Call your local BRP dealership

293200096

Unavailable

16

RH REINFORCEMENT, BLACK - Call your local BRP dealership | Adrenaline

518324628

Unavailable

17

LH Reinforcement, Black | Adrenaline

518324629

Unavailable

18

Avex Rivet

390909200

$0.30

19

Avex Rivet

390909100

$0.30

20

Pop Rivet 3/16"

390402200

$0.35

21

Pop Rivet 3/16"

390402400

$0.35

22

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

23

RH ROLLER - Call your local BRP dealership

518324957

Unavailable

24

LH ROLLER - Call your local BRP dealership

518324958

Unavailable

25

Center Plate

518323804

Unavailable

26

SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter

205982086

Unavailable

27

Flat Washer 8 mm

234082410

$1.47

28

Hemlock Rivet, 6.5 mm

293150096

$3.27

29

RH FRAME REINFORCEMENT - Call your local BRP dealership

518324431

Unavailable

30

LH FRAME REINFORCEMENT - Call your local BRP dealership

518324432

Unavailable

31

Tank Bracket

518322791

Unavailable

32

RH REINFORCEMENT - Call your local BRP dealership

518324959

Unavailable

33

LH Reinforcement

518324960

Unavailable

34

RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324385

Unavailable

35

LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324386

Unavailable

36

RH Corner, 144"

518324185

Unavailable

37

LH Corner, 144"

518324186

Unavailable

38

RH TUNNEL STIFFENER - Call your local BRP dealership

518323328

Unavailable
