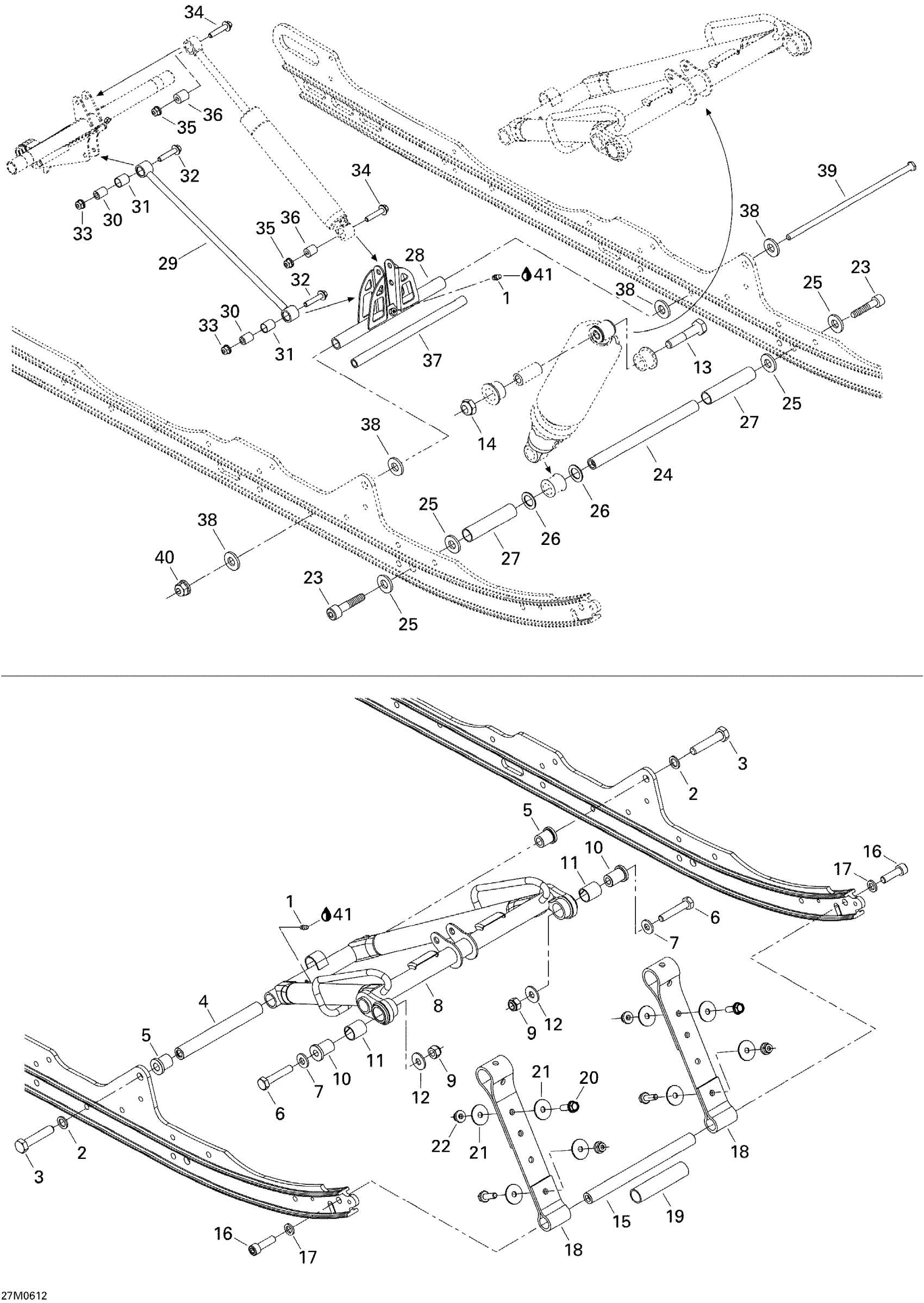

Ski-Doo Summit 600 HO SDI, Adrenaline, 2006 08- Front Arm Diagram

#

Description
Price

1

Grease Fitting

408200700

$3.49

2

Washer

503189276

$3.28

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55

207005544

$2.22

7

Washer

732900049

$0.58

8

FRONT ARM - Call your local BRP dealership

503191142

Unavailable

9

Elastic Locking Nut M10 X 1.5

233601416

$1.69

10

EXTENSION - Call your local BRP dealership

503190373

Unavailable

11

EXTENDED BUSHING - Call your local BRP dealership

503190474

$11.99

12

Flat Washer M10 | 4X4

250200014

$1.49

13

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

14

Elastic Stop Nut M10

232500416

$1.90

15

AXLE - Call your local BRP dealership

503189562

Unavailable

16

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

17

Washer

503189564

$0.74

18

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

19

Spacer

503189265

$4.99

20

Hex. Flange Screw M8 X 25

207682544

$1.35

21

Flat Washer

224081301

$0.88

22

Hex. Flange Elastic Nut M8

233281414

$1.47

23

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

24

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

25

Washer

503189276

$3.28

26

Washer

503189273

$3.28

27

SPACER - Call your local BRP dealership

503189274

Unavailable

28

PIVOT ARM, BLACK - Call your local BRP dealership

503189545

Unavailable

29

THROTTLE ROD - Call your local BRP dealership

503189547

Unavailable

30

BUSHING - Call your local BRP dealership

503189133

Unavailable

31

CUSHION - Call your local BRP dealership

503189625

Unavailable

32

Hex. Flange Screw M8 X 40

207684044

$1.48

33

Elastic Flange Nut M8

250100025

$1.48

34

Hex. Flange Screw M8 X 40

207684044

$1.48

35

Elastic Flange Nut M8

250100025

$1.48

36

Bushing

414936000

$13.99

37

Pivot Arm Axle

503189156

$21.99

38

Washer

503189157

$3.28

39

Bolt M8 X 248mm

503192440

$30.49

40

Elastic Flange Nut M8

250100025

$1.48

41

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
