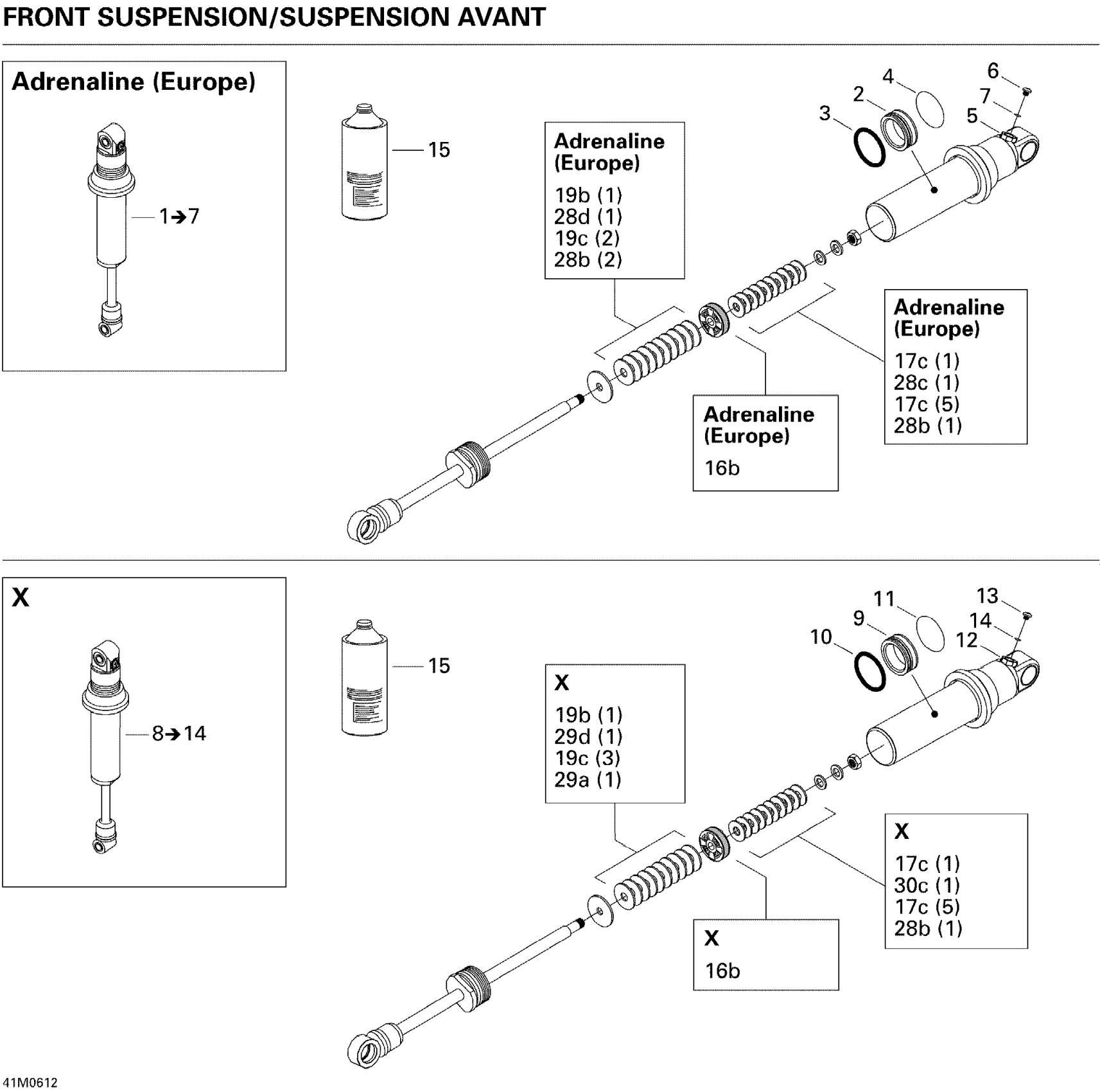

Ski-Doo Summit 600 HO SDI, Adrenaline, 2006 Take Apart Shock, Front 600HO Diagram

#

Description
Price

1

Front Shock | Includes 34 to 36, Europe

505071457

Unavailable

2

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

3

O-Ring

414888312

$17.29

4

Piston Ring

503189308

$79.49

5

Air Valve

505070398

$20.99

6

Screw | Not Shown

505070399

$4.12

7

O-Ring

505070400

$4.54

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Not Available As Spare Parts

XXX

Unavailable

11

Not Available As Spare Parts

XXX

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

Not Available As Spare Parts

XXX

Unavailable

15

Shock Oil, 1 Liter

293600035

$73.99

16a

Piston (C36)

414888304

Unavailable

16b

Not Available As Spare Part - Friction Washer

Unavailable

16c

Piston (2 X 0.3-2) (C36)

414888305

Unavailable

16d

Not Available As Spare Part - Friction Washer

Unavailable

16e

Piston (2 X 0.3-4) (C36)

414888306

Unavailable

16f

Not Available As Spare Part - Friction Washer

Unavailable

16g

Piston (2 X 0.3-6) (C36)

414888307

Unavailable

17a

Leaf Valve Ø30 X 0.254 (C36)

415039100

Unavailable

17b

Leaf Valve Ø30 X 0.203 (C36)

414888318

Unavailable

17c

Leaf Valve Ø30 X 0.152 (C36)

414888319

Unavailable

17d

Not Available As Spare Part - Friction Washer

Unavailable

18a

Not Available As Spare Part - Friction Washer

Unavailable

18b

Leaf Valve Ø28 X 0.203 (C36)

414888320

Unavailable

18c

Leaf Valve Ø28 X 0.152 (C36)

414888321

Unavailable

18d

Not Available As Spare Part - Friction Washer

Unavailable

19a

Leaf Valve Ø26 X 0.254 (C36)

415039000

Unavailable

19b

Leaf Valve Ø26 X 0.203 (C36)

414888322

Unavailable

19c

Leaf Valve Ø26 X 0.152 (C36)

414888323

Unavailable

19d

Not Available As Spare Part - Friction Washer

Unavailable

20a

Not Available As Spare Part - Friction Washer

Unavailable

20b

Not Available As Spare Part - Friction Washer

Unavailable

20c

Not Available As Spare Part - Friction Washer

Unavailable

20d

Not Available As Spare Part - Friction Washer

Unavailable

21a

Not Available As Spare Part - Friction Washer

Unavailable

21b

Leaf Valve Ø22 X 0.203 (C36)

414888324

Unavailable

21c

Leaf Valve Ø22 X 0.152 (C36)

414888325

Unavailable

21d

Not Available As Spare Part - Friction Washer

Unavailable

22a

Not Available As Spare Part - Friction Washer

Unavailable

22b

Not Available As Spare Part - Friction Washer

Unavailable

22c

Not Available As Spare Part - Friction Washer

Unavailable

22d

Leaf Valve Ø21 X 0.114 (C36)

414888340

Unavailable

23a

Not Available As Spare Part - Friction Washer

Unavailable

23b

Leaf Valve Ø20 X 0.203 (C36)

414888326

Unavailable

23c

Leaf Valve Ø20 X 0.152 (C36)

414888327

Unavailable

23d

Leaf Valve Ø20 X 0.114 (C36)

414888328

Unavailable

24a

Not Available As Spare Part - Friction Washer

Unavailable

24b

Not Available As Spare Part - Friction Washer

Unavailable

24c

Not Available As Spare Part - Friction Washer

Unavailable

24d

Not Available As Spare Part - Friction Washer

Unavailable

25a

Not Available As Spare Part - Friction Washer

Unavailable

25b

Leaf Valve Ø18 X 0.203 (C36)

414888329

Unavailable

25c

Leaf Valve Ø18 X 0.152 (C36)

414888330

Unavailable

25d

Not Available As Spare Part - Friction Washer

Unavailable

26a

Not Available As Spare Part - Friction Washer

Unavailable

26b

Not Available As Spare Part - Friction Washer

Unavailable

26c

Not Available As Spare Part - Friction Washer

Unavailable

26d

Not Available As Spare Part - Friction Washer

Unavailable

27a

Leaf Valve Ø16 X 0.254 (C36)

414888331

Unavailable

27b

Leaf Valve Ø16 X 0.203 (C36)

414888332

Unavailable

27c

Leaf Valve Ø16 X 0.152 (C36)

414888333

Unavailable

27d

Leaf Valve Ø16 X 0.114 (C36)

415038900

Unavailable

28a

Leaf Valve Ø15 X 0.254 (C36)

414888334

Unavailable

28b

Leaf Valve Ø15 X 0.203 (C36)

414888335

Unavailable

28c

Leaf Valve Ø15 X 0.152 (C36)

414888336

Unavailable

28d

Leaf Valve Ø15 X 0.114 (C36)

414888337

Unavailable

29a

Not Available As Spare Part - Friction Washer

Unavailable

29b

Not Available As Spare Part - Friction Washer

Unavailable

29c

Not Available As Spare Part - Friction Washer

Unavailable

29d

Not Available As Spare Part - Friction Washer

Unavailable

30a

Not Available As Spare Part - Friction Washer

Unavailable

30b

Not Available As Spare Part - Friction Washer

Unavailable

30c

Not Available As Spare Part - Friction Washer

Unavailable

30d

Not Available As Spare Part - Friction Washer

Unavailable

31a

Leaf Valve Ø12 X 0.254 (C36)

503189538

Unavailable

31b

Leaf Valve Ø12 X 0.203 (C36)

414888338

Unavailable

31c

Leaf Valve Ø12 X 0.152 (C36)

414888339

Unavailable

31d

Leaf Valve Ø12 X 0.114 (C36)

415038800

Unavailable
