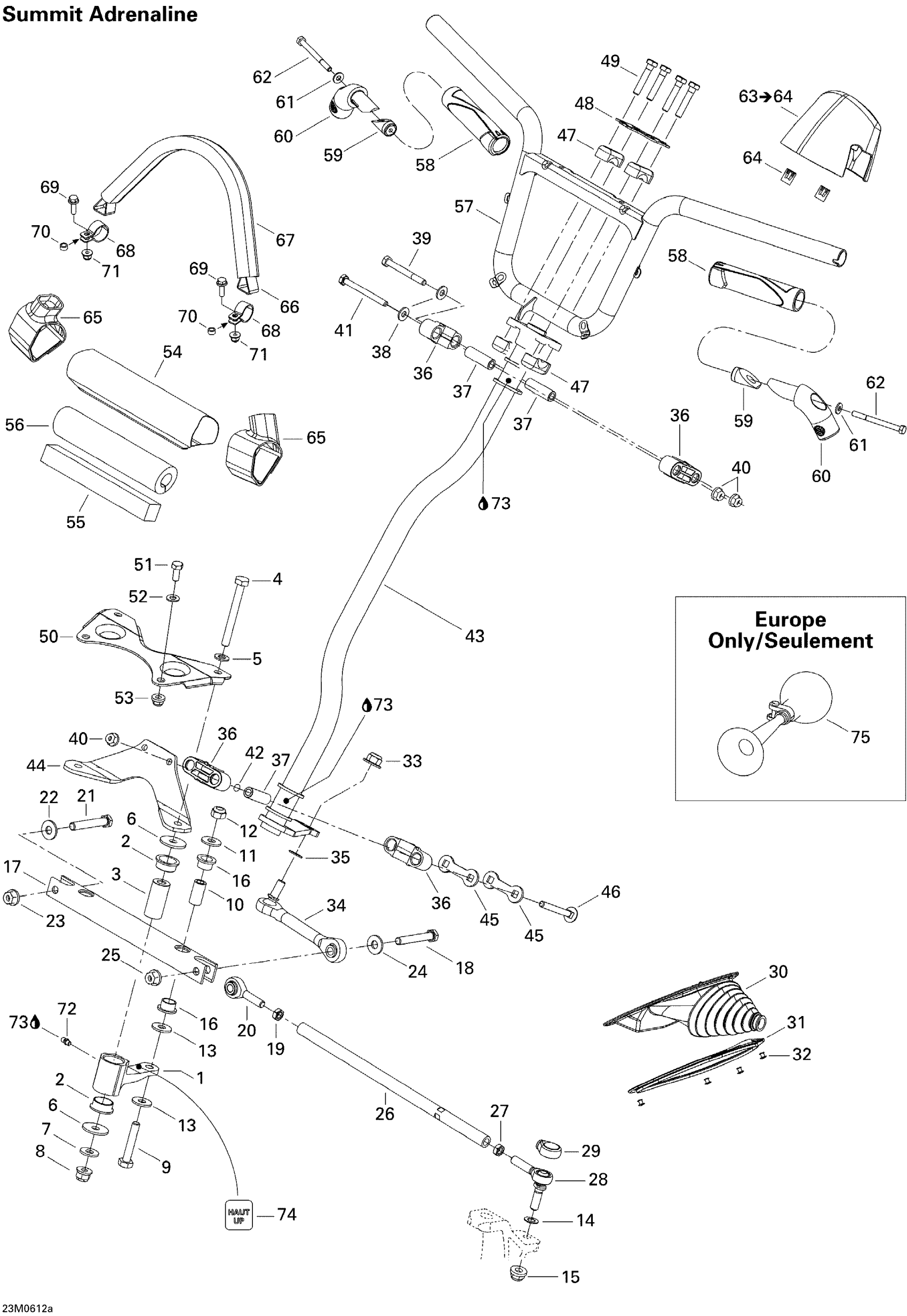

Ski-Doo Summit 600 HO SDI, Adrenaline, 2006 07- Steering System Adrenaline 600HO Diagram

#

Description
Price

1

RH Swivel Arm

506151627

Unavailable

1

LH Swivel Arm

506151628

Unavailable

2

CUSHION - Call your local BRP dealership

415041100

Unavailable

3

SWIVEL PIVOT - Call your local BRP dealership

506151272

Unavailable

4

HEX. SCREW M10 X 90 - Call your local BRP dealership

207009086

Unavailable

5

Washer

503183800

$3.28

6

Washer 10 mm

506150000

$2.74

7

Flat Washer M10 | 4X4

250200014

$1.49

8

Flange Nut M10

732610084

$6.79

9

Hex. Screw M10 X 55

207005544

$2.22

10

Pivot Bar

506151273

$15.99

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.69

13

Washer

250200032

$5.08

14

Washer

503175800

$3.28

15

Hex. Flange Elastic Nut M10

250100165

$0.85

16

Swivel Bushing

503191555

$7.83

17

SWIVEL BAR - Call your local BRP dealership

506151328

Unavailable

18

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

19

LH Threaded Hex. Jam Nut M10

250100016

$0.74

20

LH THREAD BALL JOINT - Call your local BRP dealership

506152018

Unavailable

21

Hex. Screw M10 X 45

207004544

$1.69

22

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

23

Hex. Flange Elastic Nut M10

233201414

$1.58

24

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

25

Hex. Flange Elastic Nut M10

233201414

$1.58

26

TIE-ROD - Call your local BRP dealership

506151375

Unavailable

27

RH Threaded Hex. Jam Nut M10

732610010

$0.74

28

BALL JOINT - Call your local BRP dealership

506152212

Unavailable

29

PROTECTION CAP - Call your local BRP dealership

506151650

Unavailable

30

RH Tie-Rod Cap

506151725

$43.99

30

LH Tie-Rod Cap

506151726

$43.99

31

RH RETAINER RING - Call your local BRP dealership

506151356

Unavailable

31

LH RETAINER RING - Call your local BRP dealership

506151357

Unavailable

32

Avex Rivet

390909100

$0.30

33

Hex. Flange Elastic Nut M10

250100165

$0.85

34

BALL JOINT, DOUBLE - Call your local BRP dealership

506151621

Unavailable

35

Washer

503175800

$3.28

36

Housing Half

506150400

$7.62

37

Housing Bushing

506150500

$7.99

38

Washer

503189157

$3.28

39

Hex. Screw M8 X 70

207087044

$2.19

40

Hex. Flange Elastic Nut M8

233281414

$1.47

41

Hex. Screw M8 X 80

207088044

$1.68

42

O-RING - Call your local BRP dealership

506151140

Unavailable

43

Main Tube

506151855

Unavailable

44

STEERING SHAFT SUPPORT - Call your local BRP dealership

506151330

Unavailable

45

Stopper Plate

506150600

$4.39

46

Carriage Bolt M8 X 70

207787044

$1.37

47

Steering Support

709400919

$22.49

48

REINFORCEMENT - Call your local BRP dealership

506151547

Unavailable

49

HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership

250000082

Unavailable

50

PIVOT SUPPORT - Call your local BRP dealership

506151536

Unavailable

51

Hex. Screw M8 X 25

207182544

$0.90

52

Flat Washer 8 mm

234081410

$0.83

53

Hex. Flange Elastic Nut M8

233281414

$1.47

54

Steering Cover

506152050

Unavailable

55

Steering Cover Foam Insert

506151861

Unavailable

56

Steering Cover Foam

506151862

Unavailable

57

HANDLEBAR - Call your local BRP dealership

506151767

Unavailable

58

Handle Grip

506152063

Unavailable

59

LOCK WEDGE - Call your local BRP dealership

506151827

Unavailable

60

SHORT J-HOOK - Call your local BRP dealership

506151825

Unavailable

61

Flat Washer

250200039

$0.74

62

HEX. SCREW M6 X 70 - Call your local BRP dealership

207067084

Unavailable

63

CAP - Call your local BRP dealership | Includes 29 to 30

506151660

Unavailable

64

Edge Clip

517302785

$0.88

65

PROTECTOR - Call your local BRP dealership

506151738

Unavailable

66

Strap Ass'y | Package XMR

506152115

$44.49

67

Strap Ass'y | Package XMR

506152115

$44.49

68

Black Support Plate

506152536

$9.19

69

Hex. Flange Screw M6 X 20

207662084

$1.69

70

Bushing | DS 650 X

293900104

$5.50

71

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

72

Grease Fitting

408200700

$3.49

73

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

74

Upper Decal

516001750

Unavailable

75

Horn

549011291

$35.99
