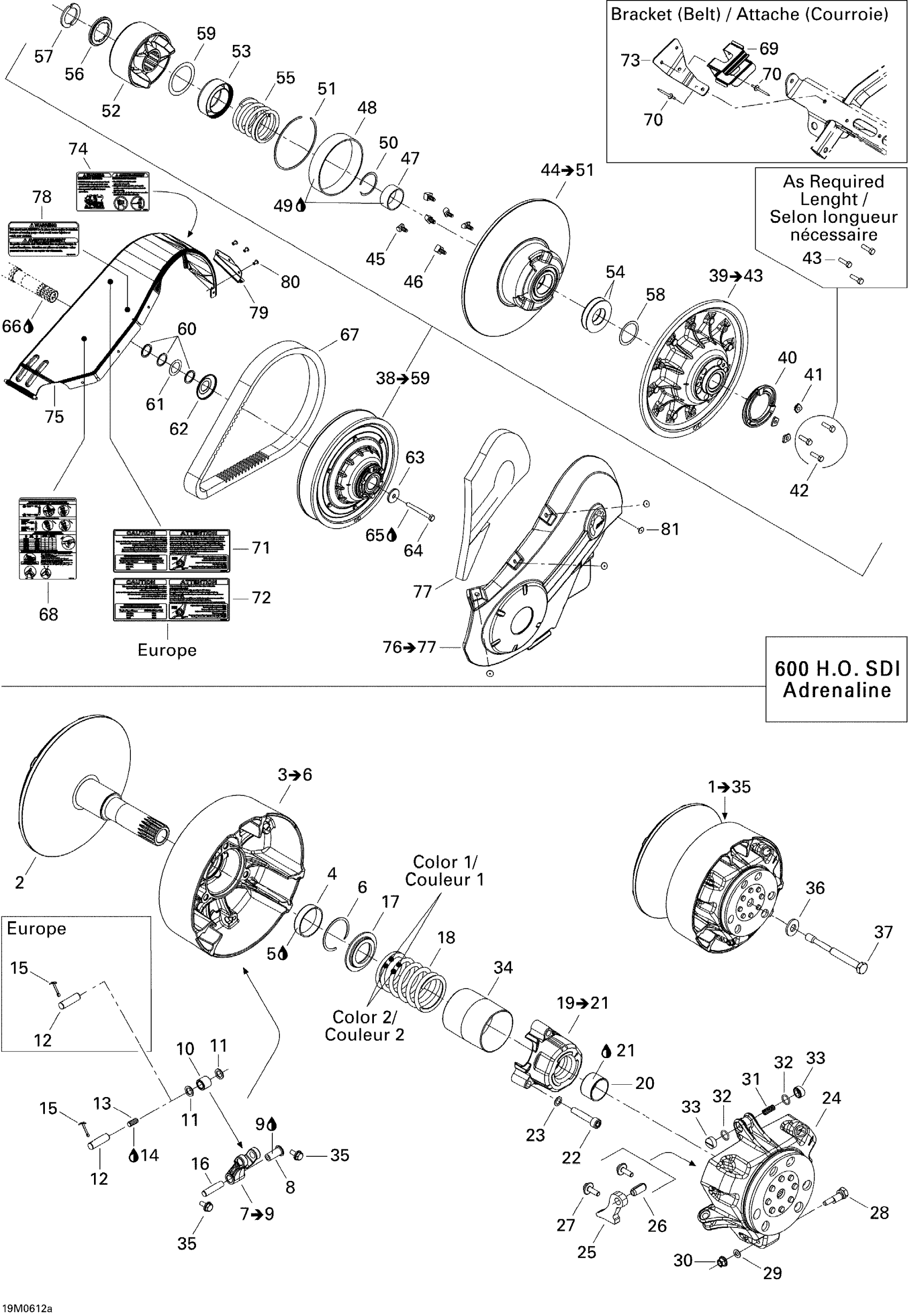

Ski-Doo Summit 600 HO SDI, Adrenaline, 2006 05- Pulley System 600HO SDI Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$439.99

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$219.99

4

Bushing

417222758

$22.49

5

Loctite 609, 10 ml

413703100

$26.99

6

Circlip

293370037

$3.19

7

Lever | Includes 10f to 10g

417222671

$49.99

8

Bushing

417222633

Unavailable

9

Loctite 609, 10 ml

413703100

$26.99

10

Roller

417222947

$21.99

11

Stopper Washer

417004302

$15.90

12

Threaded Pin

417222477

$25.99

12

Pin

417004308

$13.99

13

Socket Set Screw M6 X 1.0 X 16

250000410

$4.09

14

Loctite 243, 10 ml

293800060

$21.49

15

Cotter Pin

250400060

$2.00

16

Lever Axle

417223164

$4.49

17

Spring Seat

417222312

$9.59

18

Spring, Violet/green | High Altitude

415015400

$43.49

18

Spring, Blue/yellow | S-LEV&P-146

414689500

$46.49

19

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

20

Bushing

417009204

$17.49

21

Loctite 609, 10 ml

413703100

$26.99

22

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

23

Lock Washer 8 mm

250200009

$2.11

24

Governor Cup

417222213

Unavailable

25

RAMP 410 - Call your local BRP dealership

417222596

Unavailable

26

Spring Pin M10 X 22

250400050

$2.99

27

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

28

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

29

Washer

417005600

$4.09

30

Hex. Flange Nut M6

233061414

$1.68

31

Spring

417005700

$4.76

32

O-Ring

732401030

$0.98

33

Slider Shoe This part replaces 420460045.

417223021

$5.90

34

Guard

417009205

$21.99

35

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09

36

Spring Washer 14 mm

250200006

$6.99

37

Drive Pulley Bolt

417120000

$65.49

38

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

FIXED FLANGE ASS'Y - Call your local BRP dealership | Includes 40 to 44

417126807

Unavailable

40

Adjustment Ring

415005800

Unavailable

41

Adjustment Shim

415005900

Unavailable

42

Hex. Screw M6 X 25

207162544

$1.15

43

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

44

SLIDING FLANGE ASS'Y - Call your local BRP dealership | Includes 39 to 46

417126909

Unavailable

45

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

$4.65

46

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.38

47

BUSHING - Call your local BRP dealership

417126901

Unavailable

48

BUSHING - Call your local BRP dealership

417126902

Unavailable

49

Loctite, Black Max, 3 ml

413408300

$26.99

50

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

51

CIRCLIP - Call your local BRP dealership

417126878

Unavailable

52

Cam Ass'y

417126457

Unavailable

52

CAM ASS'Y - Call your local BRP dealership

417126445

Unavailable

53

GUARD - Call your local BRP dealership

417126381

Unavailable

54

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

55

Spring, Red

417126686

Unavailable

55

SPRING, BLACK - Call your local BRP dealership

417126687

Unavailable

56

SPACER - Call your local BRP dealership

417126733

Unavailable

57

HALF KEY - Call your local BRP dealership

417126734

Unavailable

58

SHIM - Call your local BRP dealership

504112300

Unavailable

59

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

60

Spacer

417300252

$5.49

60

Spacer

417300265

$2.29

61

Shim

504112000

$8.59

62

PROTECTOR - Call your local BRP dealership

417300238

Unavailable

63

Strength Washer

517302322

$12.63

64

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

65

Loctite 243, 10 ml

293800060

$21.49

66

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

67

Drive Belt

417300586

$154.99

68

Decal, Suspension Adjustment

516001639

Unavailable

69

Bracket

517281905

$18.49

70

Pop Rivet 3/16"

390402200

$0.35

71

Caution Decal,Altitude

516002737

Unavailable

72

Caution Decal, Altitude | Europe

516002738

Unavailable

73

Bracket

417300282

Unavailable

74

EMERGENCY STARTING LABEL - Call your local BRP dealership

516002674

Unavailable

75

BELT GUARD - Call your local BRP dealership

417300213

Unavailable

76

SIDE PROTECTOR ASS'Y - Call your local BRP dealership | Includes 53 to 54

417300301

Unavailable

77

Foam

417300246

Unavailable

78

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

79

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

80

Avex Rivet

390909200

$0.30

81

Pop Rivet 3/16"

293150103

$0.55
