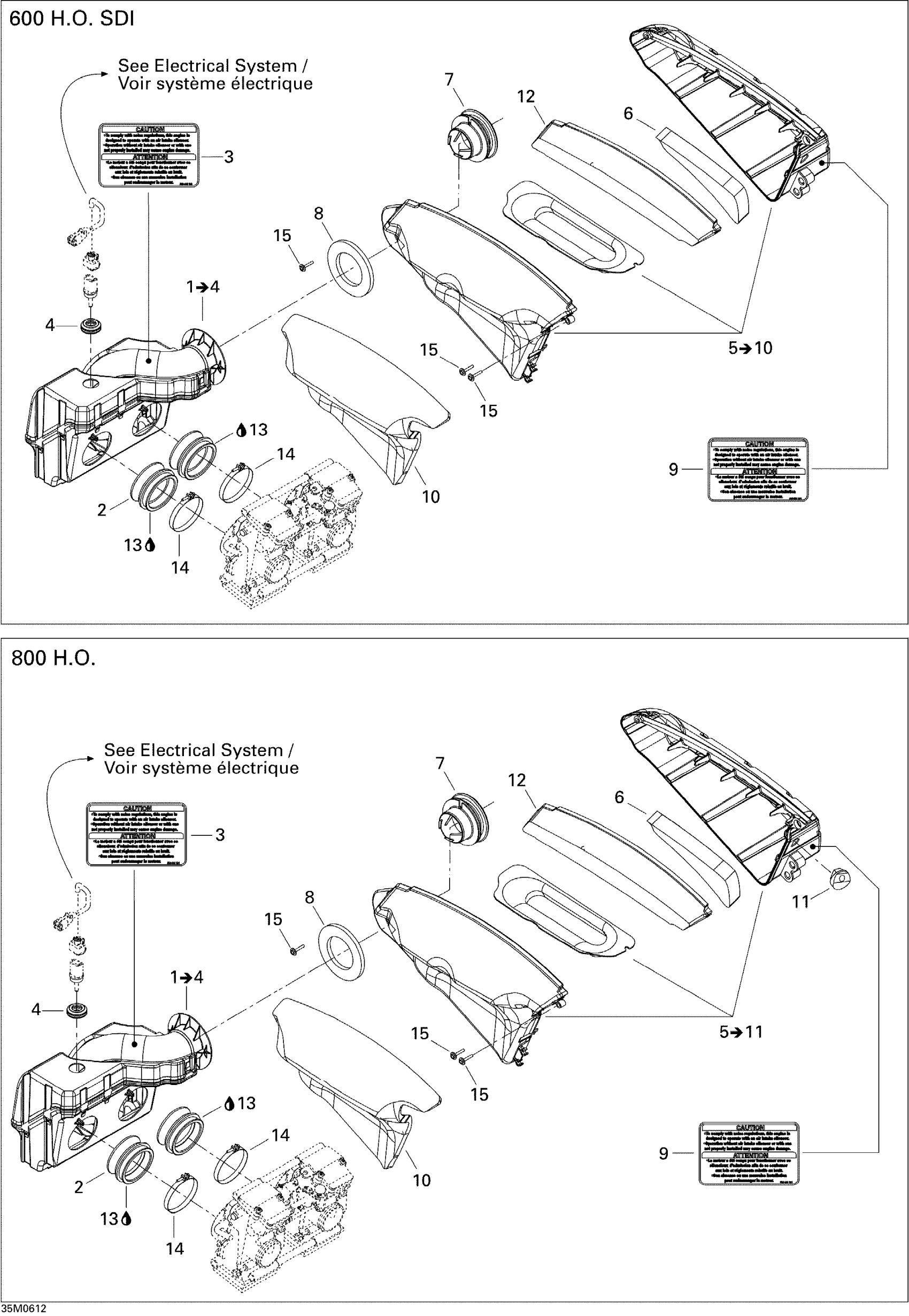

Ski-Doo Summit 600 HO SDI, Adrenaline, 2006 Air Intake System 600HO Diagram

#

Description
Price

1

Primary Chamber Ass'y | Includes 1 to 4

508000459

Unavailable

2

Air Intake Adaptor

508000374

Unavailable

3

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

4

GROMMET - Call your local BRP dealership

570065500

Unavailable

5

Secondary Chamber Assy | Includes 5 to 10

508000392

Unavailable

6

Inner Foam

508000145

Unavailable

7

GUIDE - Call your local BRP dealership

508000240

Unavailable

8

OUTER FOAM - Call your local BRP dealership

508000199

Unavailable

9

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

10

OUTER FOAM - Call your local BRP dealership

508000310

Unavailable

11

Not Available As Spare Parts

XXX

Unavailable

12

Air Filter

508000394

$49.97

13

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74

13

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

Unavailable

13

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

14

Gemi Clamp

508000346

$9.31

15

Plastite Screw Type K-40, M4 X 25

250000101

$2.87
