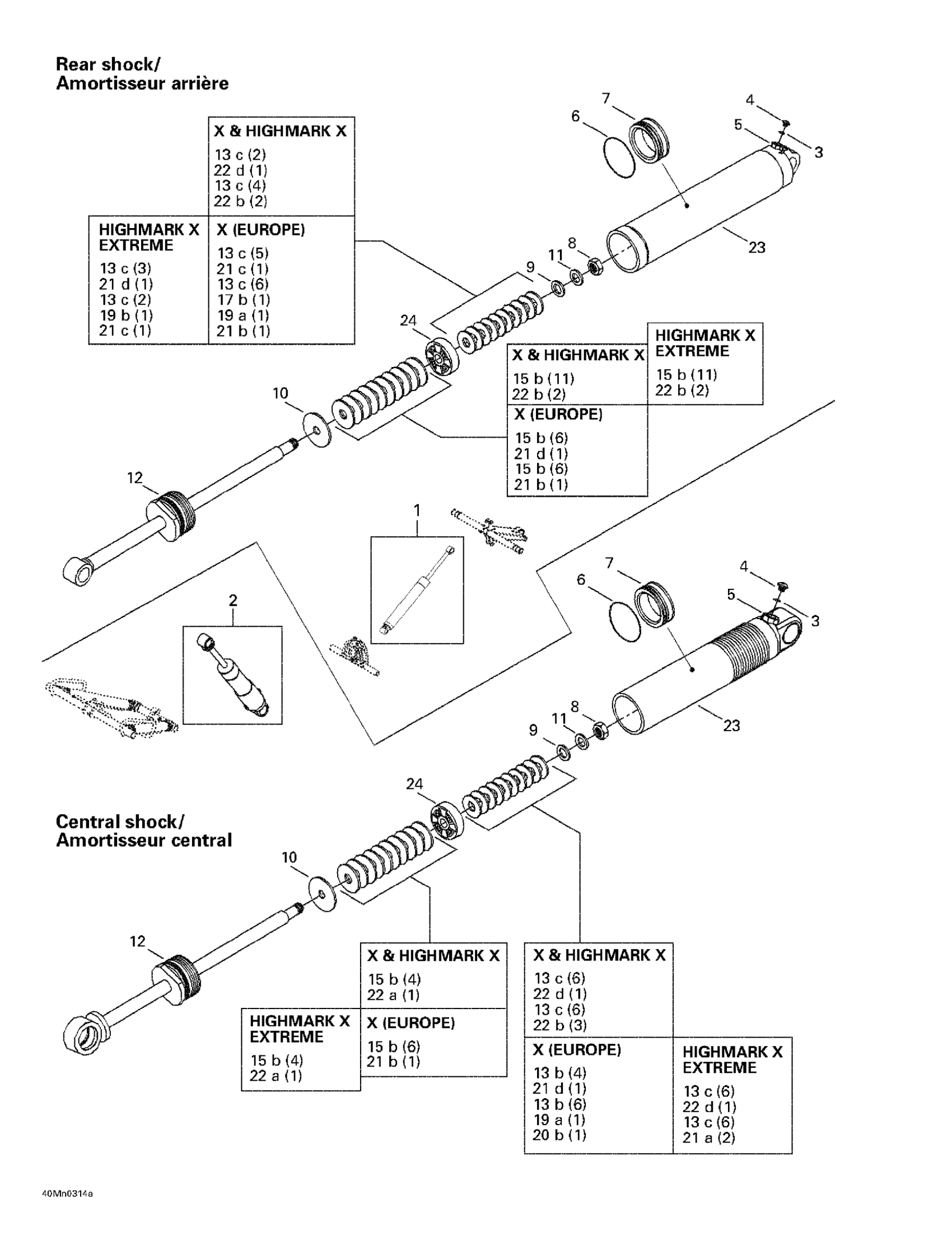

Ski-Doo Summit 600 HO/700/800 HO, 2003 08- Rear Take Apart Shocks Diagram
#
1
Rear shock | X & HIGHMARK X Summit 700. Summit 800.
503190024
Unavailable
1
Rear shock | HIGHMARK X EXTREME Summit 800.
503190020
Unavailable
1
Rear shock | X (EUROPE) Summit 800.
503190225
Unavailable
2
Center shock | X & HIGHMARK X Summit 700. Summit 800.
503190017
Unavailable
2
Center shock | X (EUROPE) Summit 800.
503190226
Unavailable
2
Center shock | HIGHMARK X EXTREME Summit 800.
503190015
Unavailable
7
Free Piston
415097900
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13a
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
13b
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
13c
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
14a
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
14b
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
15a
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
15b
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
15c
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
16a
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
16b
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
17a
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
17b
Not Available As Spare Part - Friction Washer
Unavailable
18a
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
18b
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
18c
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
19a
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
19b
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
20a
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
20b
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
20c
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
20d
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
21a
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
21b
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
21c
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
21d
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
22a
Leaf Valve Ø12 X 0.254 (C36)
503189538
Unavailable
22b
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
22c
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
22d
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
